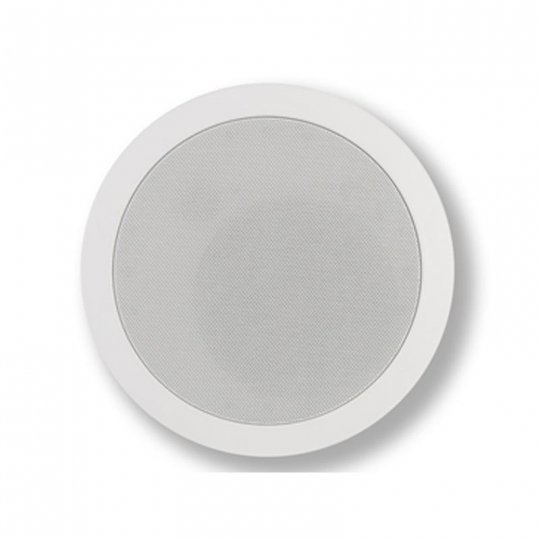

Many of the world's most recognized brands including Ron Jon Surf Shop and Bloomingdale's use our commercial speakers to create unique memorable experiences for their customers. Do the same for your business with our intermediate IC-525-T 70-volt speaker.

Features:

• Easy to install and adjust settings
• Compact design simplifies low-ceiling mounting
• Deep bass with less compression
• Horn-loaded for clear sound in any location
• Multi-tap transformer for distributed audio
• Includes tile bridge for installation in any ceiling
• Pairs well with our CA surface mount speakers
• Works with Klipsch KPH-525 Pendant Housing for high/no suspended ceiling installs

Specifications:

• Frequency response: 65-20k Hz +/- 4 dB
• Power handling: 65 watts (16.5V) cont.
• Q 4.5
• Sensitivity: 89dB 2.83 V/1M
• Nominal impedance: 8 ohms, min 4.2 ohms when switch is set to 8 ohm position
• Transformer taps: 70V: 30W, 15W, 7.5W, 3.8W, 100V: 30W, 15W, 7.5W
• Maximum acoustic output: 104 dB @ 1M
• Coverage angle: 105 degrees
• Directivity index: 6.5 dB
• Transducers: 5.25" woofer and 1" titanium diaphragm compression driver on a
• 3.5" round XT modified Tractrix Horn
• Enclosure tuning: Vented via a Tractrix port
• Input connections: Terminal Strip
• Thru hole width: 9" diameter
• Overall width: 10.75" diameter
• Overall depth: 8.313"
• Mounting depth: 8"
• Cutout dimensions: 9.125" diameter
• Weight: 8.25 lbs.
• Finishes: Black and White
