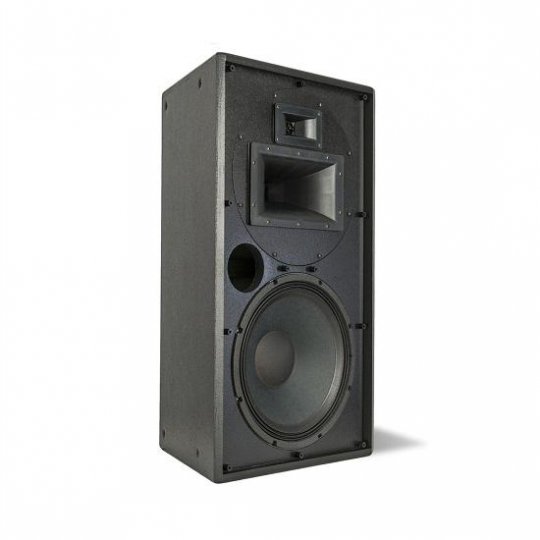

The KI-362 three-way trapezoidal array-capable (twelve built-in 3/8" 16-thread fly points) loudspeaker is a value-engineered compact Tractrix® Horn-loaded system capable of superior performance in both permanent installation and production environments including theaters, auditoriums, music clubs, houses of worship, and A/V production environments.
To permit use at any mounting angle the KI-362's midrange and high-frequency drivers are adjustable in 45° increments allowing 60° or 90° projection patterns to be chosen independent of the vertical horizontal or lateral orientation of the enclosure.
Specifications:
- Frequency Response1: 60Hz-18kHz±4dB, -10dB 42Hz (see graph)
- Power Handling2: 400 Watts (45.1V)
- Maximum Continuous Output3: 126dB
- Dispersion Angle: 90° Horizontal X 60° Vertical (see graph)
- Directivity: 8dB (see graph)
- Sensitivity4: 102dB
- Nominal Impedance: 8 Ohms, 5.1 Ohms Minimum at 40Hz (see graph)
- Crossover Frequency: 1kHz and 6.5kHz, 12dB/Octave on LF, 18dB/Octave and 12dB/Octave on MF, 18dB/Octave on HF
- Overload Protection: KLIP Overload Tweeter and Midrange Protection Circuit
- Components: K-48-EP 15" Woofer, K-52-TI 1.5" Titanium Diaphragm
Compression Driver , K-792-TI-KP 1" Titanium Diaphragm Compression Driver
- Enclosure Material: 9-Ply Furniture Grade Birch Plywood Cabinet
- Input Connections: Two NL-4 Speakon Connectors Wired in Parallel
- Depth: 16.5" (41.91cm)
- Height: 34.313" (87.155cm)
- Width Front: 19.438" (49.372cm)
- Width Back: 6.813" (17.305cm) 22.5° Angled Box
- Net Weight: 71 lbs. (32.234kg)
- Shipping Weight: 84 lbs. (38.136kg)
- Finishes: Black, White and Raw Birch
