Discover Immersive Sound with Klipsch Real Custom Cinema Speaker Systems

Unveil a new dimension of audio excellence with the Klipsch Real Custom Cinema (RCC) speaker systems. Elevate your home theater experience with cutting-edge technology designed to transform your space into a cinematic masterpiece.

RCC-102: Advanced Audio for Your Space

For screens ranging from 102" to 111" and spaces up to 1000 cubic feet, the RCC-102 brings audio to life with precision. Featuring K-603-M 90° x 60° Tractrix® Horns and K-45-ST 15” Polyfiber Woofer Cones with 3” Voice Coils, this system delivers unparalleled clarity. With front-mounted aluminum input panels and powerful K-49-EP 18” Polyfiber Woofer Cones, along with Cinema Tractrix Ports, it's engineered for a superior listening experience.

All New 90° x 90° Tractrix Horn

Experience movies and music like never before with our proprietary 90° x 90° Tractrix Horn. This innovative technology provides controlled directivity, ensuring a 360° Dolby Atmos® listening experience. The horn's increased dimensions allow for improved high-frequency directivity and a more accurate sound stage, delivering the power, detail, and emotion of live music.

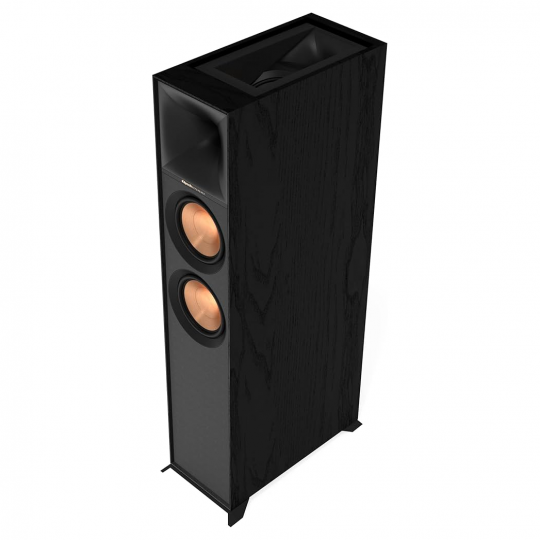

Built-in Elevation Speaker

The R-605FA isn't just a tower speaker; it's a complete audio solution. With a high-performance up-firing Dolby Atmos speaker integrated on the top, it creates an enveloping soundstage that virtually disappears, enhancing your home theater setup.

Exceptional Speaker Components

Our speakers feature a Linear Travel Suspension (LTS) Aluminum Tweeter with Kapton Suspension, minimizing distortion for enhanced, detailed performances. The Spun-Copper Thermoformed Crystalline Polymer (TCP) Woofers, derived from Klipsch’s Reference Premiere series, offer improved accuracy and transparency. The rear Tractrix Port ensures ideal airflow, while the MDF Cabinet with Scratch-Resistant, Textured Wood Grain Vinyl provides a sleek, modern appearance.

Main Channel Specifications

• Frequency Response: 38Hz - 21kHz +/- 3dB
• Sensitivity (In-Room): 96 dB
• Power Handling (Continuous/Peak): 100W/400W
• Nominal Impedance: 8 ohms Compatible
• Crossover Frequency: 1,440 Hz
• High-Frequency Driver: 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
• Low-Frequency Driver: Dual 6.5" spun-copper TCP woofers
• Enclosure Material: MDF
• Enclosure Type: Bass-Reflex via rear-firing Tractrix® ports
• Inputs: Single Gold Plated Binding Posts
• Dimensions: Height: 40" (1017 mm), Width: 9.5" (240 mm), Depth: 18.2" (463 mm)
• Weight: 50 lbs (22.7 kg)
• Finish: Black Textured Wood Grain Vinyl
• Included Accessories: Injection molded feet & screws

Height Channel

• Frequency Response: Conforms to Dolby Atmos Specifications
• Sensitivity: Conforms to Dolby Atmos Specifications
• Power Handling: 75W/150W
• Nominal Impedance: 8 ohms Compatible
• High-Frequency Driver: 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
• Low-Frequency Driver: 5.25" spun-copper IMG woofer
• Enclosure Type: Acoustic Suspension
• Inputs: Single Gold Plated Binding Posts
