Real Custom Cinema - In-Home Theater RCC-102

For 102" - 111" Screens / 1000 Cubic Feet

• K-603-M 90° x 60° Tractrix® Horns
• K-45-ST 15” Polyfiber Woofer Cones with 3” Voice Coils
• Front Mounted Aluminum Input Panels with Wire Management Channel
• K-49-EP 18” Polyfiber Woofer Cones with 3” Voice Coils
• Cinema Tractrix Ports

CUSTOM CINEMA MADE EASY

The Klipsch Real Custom Cinema (RCC) is a behind-the-screen, professional-grade home cinema system. Just pick the screen width that best fits your space.

BEHIND THE SCREEN

The same materials and technology featured in our line of professional cinema speakers can be found in the Klipsch Real Custom Cinema solution, including Titanium Diaphragm Compression Drivers with massive voice coils, 90° x 60° Tractrix® Horns, and cinema Tractrix ports.

CRAFTED IN THE U.S.A.

Designed and assembled with pride in Hope, Arkansas, the Klipsch Real Custom Cinema features free ProSystem Design Support, printed specs, and a certificate of authenticity. Each order is also labeled and signed by the craftsperson.

Klipsch Real Custom Cinema Speaker Systems

The Klipsch Real Custom Cinema speaker systems are designed to fit most medium to large dedicated home theater or media rooms, for placement behind an acoustically transparent screen in 16:9 or widescreen formats. At just 20.25” deep, each modular bundle includes highly efficient horn-loaded left, center and right channel speakers with either 3” or 1.75” compression drivers, depending on the system, and 15” woofers, and two 18” subwoofers. The Klipsch Real Custom Cinema behind-the-screen speakers are designed and handcrafted in Hope, Arkansas.

Not only do the speakers deliver impactful cinematic experiences, they were designed with the integrator in mind. The process is simple. Determine the screen size and position in the room, order one of three Klipsch part numbers depending on the width of the screen, cut the hole or build out a false wall, place the speakers, connect the wires, and hang the screen over the speakers. The modular false wall design will eliminate light creep behind the screen for a professional audio and visual experience. High performance Klipsch Professional cinema surround speakers or THX Cinema Series speakers are available separately to complement the Real Custom Cinema behind-the-screen speaker system and complete the surround sound experience.

Specifications

• Speaker System: Behind-The Screen LCR/SUB System for Screens 112”-121” in Width
• Max Continuous Output: 126 dB
• Max Peak Output: 132 dB
• System Frequency Response: 18 - 20kHz
• Power Handling:
  • LCRs (Each): 200W Continuous, 800W Peak
  • SUBs (Each): 600W Continuous, 2400W Peak
• System Sensitivity: 107 dB, 2.83V @ 1m, 1/2 space
• Horizontal Coverage: 90° +/- 20 (1.1kHz - 20kHz)
• Vertical Coverage: 60° +/- 20 (2.2kHz - 20kHz)
• Nominal Impedance: 8 Ohm
• Minimum Recommended Amplifier Power:
  • LCRs: 200W RMS
  • SUBs: 500W RMS
• High Frequency Drivers: (3) K-702 1.75” Titanium Compression Driver Mounted on a K-603-M Horn
• Low Frequency Drivers: (3) K-45-ST 15” Polyfiber Woofers

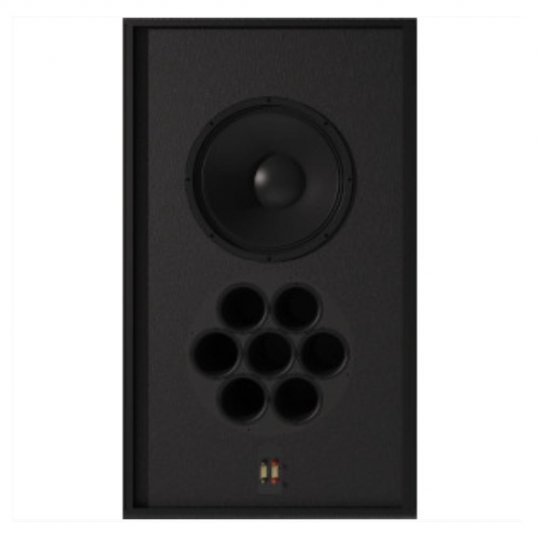

• Subwoofer Drivers: (2) K-49-EP 18” Polyfiber Woofers
• Enclosure Type: Double Braced Dado and Rabbit MDF
• Inputs: Dual 5-Way Binding Posts
• System Height: 55” (139.7 cm)
• System Width: 101.25” (257.18 cm)
• System Depth: 20.25” (51.44 cm)
• System Weight: 648 lbs (293.93 kg)
• Finish: Textured Black Paint
• Recommended Screen Width: 102” - 112”
• Recommended Screen Size (Diagonal):
  • 16:9: 117” - 129”
  • 1:2.35: 110” - 121”
