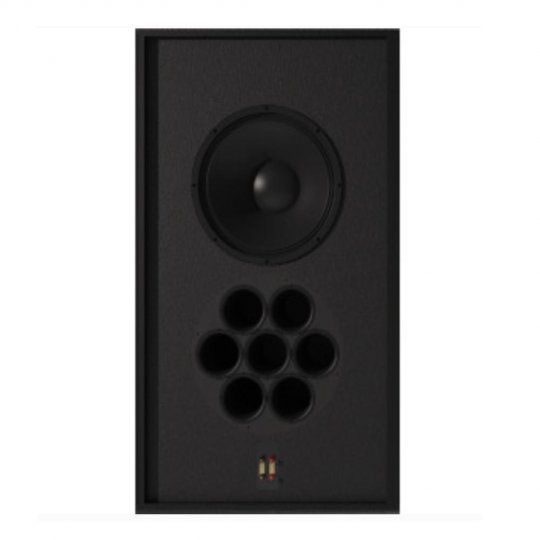

Klipsch RCC-112 Behind-The-Screen LCR/SUB System

Designed for screens ranging from 112” to 121” in width, the Klipsch RCC-112 is a powerful Behind-The-Screen LCR/SUB system engineered to deliver exceptional audio performance in large home theaters or commercial cinema setups.

This system features advanced components:

• K-691 3” Titanium Diaphragm Compression Drivers with 3” Voice Coils
• K-510-M 90° x 60° Tractrix® Horns
• K-45-ST 15” Polyfiber Woofer Cones with 3” Voice Coils
• K-49-EP 18” Polyfiber Woofer Cones with 3” Voice Coils
• Front Mounted Aluminum Input Panels with Wire Management Channel
• Cinema Tractrix Ports

Specifications:

• Speaker System: Behind-The-Screen LCR/SUB System for Screens 112”-121” in Width
• Max Continuous Output: 130 dB
• Max Peak Output: 136 dB
• System Frequency Response: 17 - 20kHz
• Power Handling: LCRs (Each): 400W Continuous, 1600W Peak; SUBs (Each): 600W Continuous, 2400W Peak
• System Sensitivity: 107 dB, 2.83V @ 1m, 1/2 space
• Horizontal Coverage: 90° +/- 20 (1.1kHz - 20kHz)
• Vertical Coverage: 60° +/- 20 (2.2kHz - 20kHz)
• Nominal Impedance: 8 Ohm
• Minimum Recommended Amplifier Power: LCRs: 250W RMS; SUBs: 500W RMS
• High-Frequency Drivers: (3) K-691 3” Titanium Compression Driver Mounted on a K-510-M Horn
• Low-Frequency Drivers: (3) K-45-ST 15” Polyfiber Woofers
• Subwoofer Drivers: (2) K-49-EP 18” Polyfiber Woofers
• Enclosure Type: Double Braced Dado and Rabbit MDF
• Inputs: Dual 5-Way Binding Posts
• System Height: 55” (139.7 CM)
• System Width: 111.5” (283.21 CM)
• System Depth: 20.25” (51.44 CM)
• System Weight: 683 LBS (309.80 KG)
• Finish: Textured Black Paint
• Recommended Screen Width: 112” - 121”
• Recommended Screen Size (Diagonal): 16:9: 128” - 140”; 1:2.35: 122” - 132”
