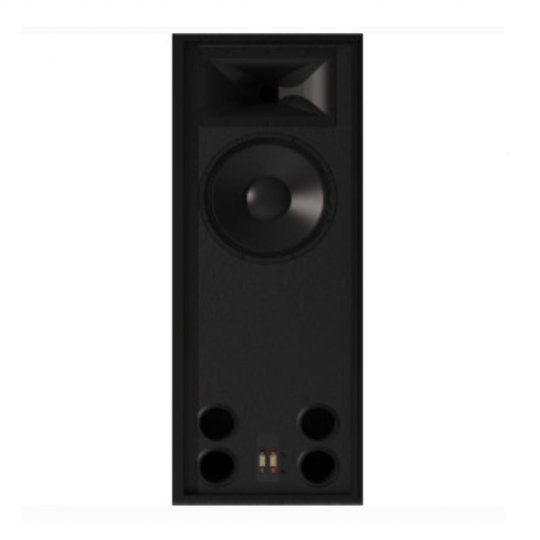

Klipsch Real Custom Cinema Speaker Systems

The Klipsch Real Custom Cinema speaker systems are meticulously crafted for medium to large dedicated home theater or media rooms. Designed for placement behind an acoustically transparent screen in 16:9 or widescreen formats, these systems redefine cinematic experiences.

Key Features:

• Modular Design: Each bundle includes highly efficient horn-loaded left, center, and right channel speakers with either 3” or 1.75” compression drivers (depending on the system) and 15” woofers, along with two 18” subwoofers.
• Behind-the-Screen Placement: Specifically designed for placement behind acoustically transparent screens, these speakers provide impactful audio while maintaining a sleek aesthetic.
• Easy Installation: Designed with integrators in mind, the installation process is simplified. Determine screen size and position, order the appropriate Klipsch part number, cut the hole or create a false wall, place the speakers, connect the wires, and hang the screen over the speakers.
• No Light Creep: The modular false wall design eliminates light creep behind the screen, ensuring a professional audio and visual experience.
• Comprehensive Surround Sound: Klipsch Professional cinema surround speakers or THX Cinema Series speakers (available separately) can complement the Real Custom Cinema behind-the-screen speaker system for a complete surround sound setup.

Specifications:

• Screen Compatibility: 16:9 or widescreen formats, 112”-121” wide screens
• Subwoofer Drivers: 18” high output polyfiber cinema subwoofer drivers
• Woofers: 15” high output polyfiber cinema woofers
• Compression Drivers: 3” titanium HF cinema compression drivers
• Tractrix® Horns: 90° x 60° Tractrix® Horns for precise audio dispersion
• Construction: Premium double braced MDF construction with high-impact textured black finish

Specifications

• Speaker System: Behind-The Screen LCR/SUB System for Screens 112”-121” in Width
• Max Continuous Output: 130 dB
• Max Peak Output: 136 dB
• System Frequency Response: 17 - 20kHz
• Power Handling:
  • LCRs (Each): 400W Continuous, 1600W Peak
  • SUBs (Each): 600W Continuous, 2400W Peak
• System Sensitivity: 107 dB, 2.83V @ 1m, 1/2 space
• Horizontal Coverage: 90° +/- 20 (1.1kHz - 20kHz)
• Vertical Coverage: 60° +/- 20 (2.2kHz - 20kHz)
• Nominal Impedance: 8 Ohm
• Minimum Recommended Amplifier Power:
  • LCRs: 250W RMS
  • SUBs: 500W RMS
• High-Frequency Drivers: (3) K-691 3” Titanium Compression Driver Mounted on a K-510-M Horn
• Low-Frequency Drivers: (3) K-45-ST 15” Polyfiber Woofers
• Subwoofer Drivers: (2) K-49-EP 18” Polyfiber Woofers
• Enclosure Type: Double Braced Dado and Rabbit MDF
• Inputs: Dual 5-Way Binding Posts
• System Height: 55” (139.7 CM)
• System Width: 111.5” (283.21 CM)
• System Depth: 20.25” (51.44 CM)
• System Weight: 683 LBS (309.80 KG)
• Finish: Textured Black Paint
• Recommended Screen Width: 112” - 121”
• Recommended Screen Size (Diagonal):
  • 16:9: 128” - 140”
  • 1:2.35: 122” - 132”
