MantelMount RB100 Recess Box (For Models MM700, MM540 and MM340

Secure One-Page Checkout


Get 10 Miles When you spend $239.99. See details
MantelMount Authorised
This product is brand-new and factory sealed MantelMount RB100  Available 239.99
UPC : 861709000315  5% Price Promise
Warranty : 1yr Manufacturer Warranty Assistance
Shipping : FREE in Canada Ships in 2 to 4 Days

$80/mo suggested payments with 3 month special financing now with Flexiti.Get approved for financing in under 3 minutes

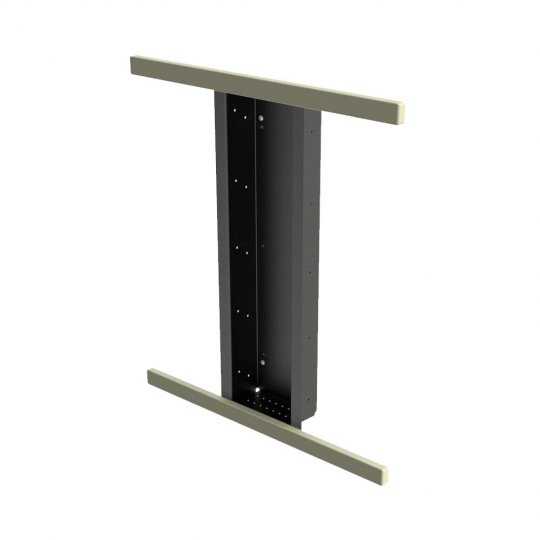

This simple-to-install add-on accessory allows you to integrate MantelMount seamlessly into a custom-built wall opening. Easily fitting between standard or custom stud configurations, the RB100 provides the flushest TV-to-wall storage on the market by allowing the MantelMount center arm to now fold into the wall opening when the TV is in the raised position. The result is concealed mounting hardware and a 1.8 inch flush-to wall TV storage! (For Models MM700, MM540 and MM340)


  • 1.8" Flush To Wall Mounting
  • Simple To Install
  • Easily Fits Between Studs
  • Concealed Mounting Hardware
  • Center Arm Folds Into Wall
  • Paintable covers for braces

Note 1: If recessing the MM340 or MM540 with the RB100 Recess Box, you will also need to purchase the SSB40 Adapter in order to connect the mount to the recess box with a compatible bolt configuration pattern. The MM700 integrates directly with the RB100 and does not need the SSB40 Adapter.

Note 2: If recessing the MM540 with the RB100 Recess Box, maximum swivel is 35 degrees in both directions. The swivel extender kit included with the MM540 will not will not be usable if the mount is recessed.

Note 3: If your wall has a wider than average stud placement, the RBE10 Recess Box Extenders accessory can be used with the RB100 Recess Box to reach studs up to 34 inches apart.

Note 4: A TV at least 32 inches in height should entirely conceal the recess box when in the raised position. For TV's shorter than 32 inches in height, you may see a portion of the recess box when the TV is raised.

MantelMount RB100 Recess Box (For Models MM700, MM540 and MM340
MantelMount RB100 Recess Box (For Models MM700, MM540 and MM340 Shipping : FREE in Canada
In Stock
Now $239.99
