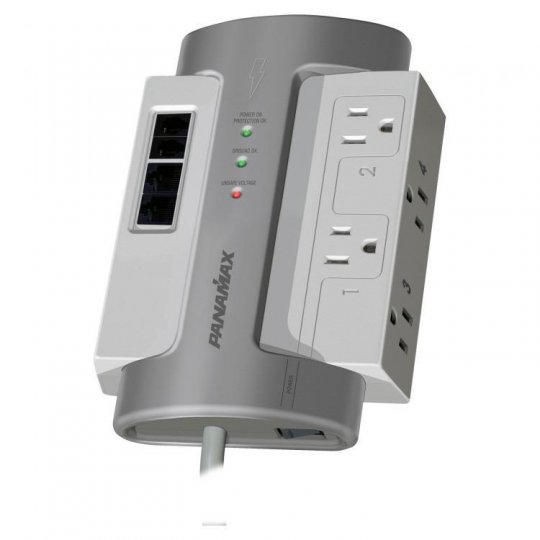

Noise Filtration/Surge Protection for All Home/Office Equipment

• Exceeds UL Safety Standards
• Solid-State Telephone Line Protection
• Solid-State 100bT Ethernet Line Protection
• Includes DSL Phone Line Splitter
• Four AC Outlets with Transformer Spacing
• Accepts Add-on Signal Line Modules to Accomodate System Expansion

Features:

• RJ-11 Phone line IN/OUT connectors.
• RJ-45 CAT5e IN/OUT LAN connectors.
• Power indicator LEDs.
• Four (4) protected AC receptacles with tranformer spacing.

Specifications:

General:

• Family: Floor Models
• Line Voltage: 120 (Volts)
• BlueBOLT Enabled: No
• Number of Outlets: 4
• Outlet Descriptions: All 4 outlets filtered and surge protected
• Control: On/Off control to all outlets through power switch.
• Compliance: UL 1449 3rd Edition, 3000A
• USB Charging: N/A
• Low Voltage Trigger: N/A
• AC Power Cord: 8 ft. captive cord

AC Protection:

• AC Protection Technology: Protect or Disconnect, Automatic Voltage Monitoring, L-N, L-G, N-G Protection Modes, Thermal Fusing
• Automatic Voltage Shutoff: Yes
• Undervoltage Shutoff: 90 VAC ± 6 VAC
• Over-Voltage Shutoff: 144 VAC ± 8 VAC
• Maximum Current Rating: 15 (Amps)
• Initial Clamping Level: 200V Peak

Filtration:

• Filtration Technology: RFI/EMI Filtration
• Filtration Rating: 50 dB @ 100 KHz - 1 MHz

Signal Line Protection:

• Signal Line Protection: 1 LAN, 1 Tel
