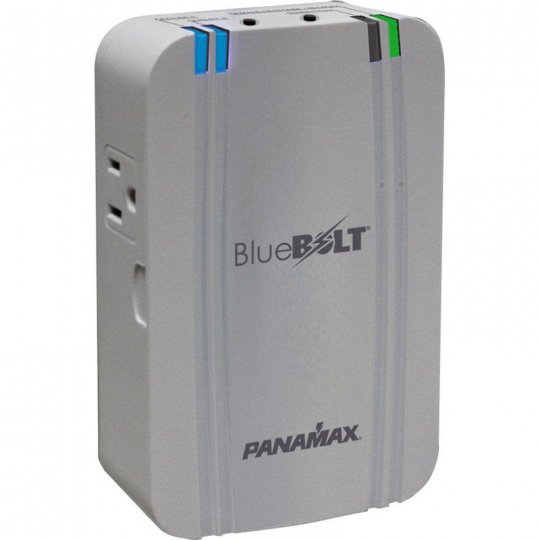

Bring BlueBOLT® power control and energy management to any standard 120V outlet.

BlueBolt Control with ZigBee® Communication

ZigBee® Wireless Communications for remote outlet control & energy monitoring via BlueBOLT® (Requires BB-ZB1 GATEWAY, sold separately).

Off-site Reboot

Hard-reboot problem electronics remotely.

Scheduled Conservation and Alerts

Schedule conservation commands to eliminate wasted power and lower utility bills.

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Instant Override Buttons

Push-button power switches instantly power outlets on or off (overrides BlueBOLT power commands).

Features:

• Remotely monitor and control equipment and appliance loads.
• Push-button power switches instantly power outlets on or off.
• EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
• Protect-or-Disconnect™ Circuitry.
• Diagnostic Lights (LED): Outlet 1 & 2 Status, Demand Response/Network and Wiring Fault.
• Removable, paintable cover ensures seamless fit with any décor.
• Thin Profile - Only 1.5" inches deep.
• Convenient display feature; turn cover around to hide diagnostic lights.

Specifications:

General:

• Family: Smart Plugs
• Line Voltage: 120 (Volts)
• BlueBOLT Enabled: Yes
• Number of Outlets: 2
• Outlet Descriptions: Both outlets Individually controllable, filtered and surge protected
• Control: Individual on/off control to outlets via BlueBOLT (BB-ZB1 required), or through the push-button power switches.
• Compliance: C-UL (UL standard #1449)
• USB Charging: N/A
• Low Voltage Trigger: N/A
• AC Power Cord: N/A
• Dimensions: 3.25" W X 1.625" D X 5.25" H
• Weight: 0.7 lbs

AC Protection:

• AC Protection Technology: Protect or Disconnect, L-N, L-G, N-G Protection Modes, Thermal Fusing
• Automatic Voltage Shutoff: No
• Undervoltage Shutoff: N/A
• Over-Voltage Shutoff: N/A
• Maximum Current Rating: 12 (Amps)
• Initial Clamping Level: 200V Peak

Filtration:

• Filtration Technology: RFI/EMI Filtration
• Filtration Rating: 50 dB @ 100 kHz - 1 MHz

Signal Line Protection:

• Signal Line Protection: No
