Unique imaging technologies for a Hollywood Cinema Experience

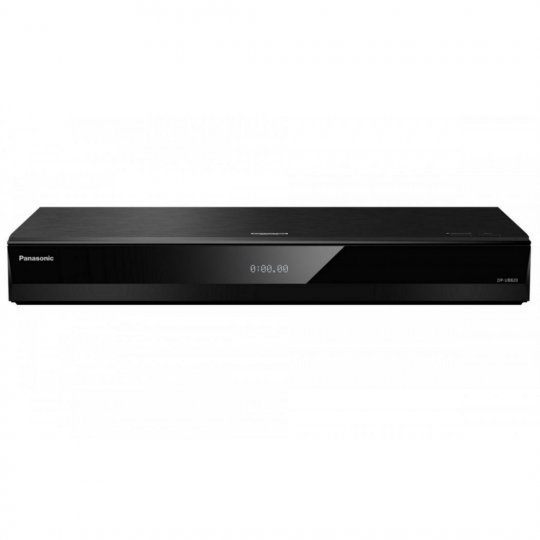

Panasonic's 4K PRO HDR model Ultra HD Blu-ray Player features an HCX Processor for Ultra HD Blu-ray packed with original imaging technologies for stunning picture quality. The precise colours and HDR reproduction that form the essential elements of Ultra HD are the basis of high-definition images. They bring you a whole new viewing experience that you've never had before.

• * HCX stands for Hollywood Cinema Experience.
• * Supervised by Panasonic Hollywood Laboratory.

Experience stunning 4K pictures

Panasonic Ultra HD Blu-ray Players support multiple HDR formats, such as HDR10, which is the standard HDR format for films, and UHD Blu-ray discs. They now support HDR playback of HDR10+ dynamic metadata, the next-generation standard. And they are compatible with Dolby Vison and Hybrid Log-Gamma. The synergistic effect achieved with Panasonic's original high-quality image technologies enables even more precise image expression.

HDR Optimizer for Greater Content Clarity

Panasonic's original image processing technologies achieve HDR images with higher definition than before. Tone mapping is used to adjust the brightness level of the content. And even HDR images from ordinary HDR10 and TV footage, which do not support special new formats like HDR10+ and Dolby Vision, provide optimal playback.

Stunning colour and details

4K High-Precision Chroma Processor

Technologies from Panasonic Hollywood Laboratory, the base for Blu-ray Disc Research & Development, are applied to Panasonic's unique "4K High Precision Chroma Processor." 4K image colour signals (4:2:0) are interpolated into 4K (4:4:4) by a multi-tap chroma process, for natural textures and depth.

Experience Studio Master Sound with High-Res Audio

This model is designed for high-resolution audio reproduction. In addition to the conventional WAV/FLAC/MP3/AAC/WMA/AIFF formats, DSD (5.6 MHz/2.8 MHz/11.2MHz) and ALAC music files can be reproduced. Simply connect to your home audio system to enjoy music sources equivalent to studio master sound quality.

* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

Specifications:

Playable Discs::

• BD-ROM:
• Ultra HD Blu-ray/ FULL HD 3D/ BD-Video: Yes
• BD-RE/ BD-RE DL (Ver.3):
• BDAV/ AVCHD/ AVCHD 3D/JPEG/ MPO: Yes
• BD-R (Ver.1.3) / BD-R DL (Ver.2):
• BDAV/ AVCHD/ AVCHD 3D/ MKV/ JPEG/ MPO: Yes
• DVD:
• DVD-Video: Yes
• +R*1/ +R DL*1/ +RW*1:
• DVD-Video/ DVD Video Recording: Yes
• AVCHD/ MKV: Yes / Yes* ( *DVD-R / DVD-R DL)
• FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3/ AIFF: Yes (DVD-R / DVD-R DL)
• JPEG/ MPO: Yes (DVD-R / DVD-R DL)
• CD, CD-R/ -RW:
CD-DA/ DTS-CD: Yes
• MKV: Yes (CD-R / -RW)
• FLAC/ WAV/ ALAC/ WMA/ AAC/ MP3/ AIFF: Yes (CD-R/ -RW)
• JPEG/ MPO: Yes (CD-R / -RW):

Audio System:

• Dolby Digital/ TrueHD: Yes (Decode and Bitstream Output*2)
• Dolby Digital Plus: Yes (Decode and Bitstream Output*2)
• DTS-HD Master Audio/ DTS-HD High Resolution Audio: Yes (Decode and Bitstream Output*2)
• Dolby Atmos/ DTS:X: Yes (Bitstream Output*2)
• FLAC: Yes (Max. 192 kHz / 24 bit)
• WAV: Yes (Max. 384 kHz / 32 bit)
• ALAC: Yes (Max. 96 kHz / 32 bit (7.1 ch), 176.4 /192 kHz / 32 bit (5.1 ch))
• DSD (DFF, DSF): Yes (2.8 MHz (2ch / 5.1 ch), 5.6 MHz (2 ch / 5.1 ch), 11.2 MHz (2 ch))
• AIFF: Yes (Max. 384 kHz / 32 bit (2 ch)):

USB:

• Slot: Yes (2)
• Front: 1 (USB 2.0 High Speed)
• Rear: 1 (USB 3.0 Super Speed):
• Playback:
• FLAC/ WAV/ ALAC/ AIFF/ DSD (DFF, DSF)/ WMA/ AAC/ MP3: Yes (Gapless Playback: FLAC / WAV / AIFF/ DSD (DFF,DSF))
• MKV/ MP4 (H.264/HEVC), TS (MPEG-2/H.264/HEVC): Yes
• MPEG-2/ AVCHD/ AVCHD 3D: Yes
• JPEG/ MPO: Yes

High Quality Picture:

• HCX Processor for Ultra HD Blu-ray: Yes
• HDR:
• HDR10+: Yes*3
• Dolby Vision: Yes*3
• Hybrid Log Gamma (HLG): Yes
• HDR Optimiser: Yes
• 4K Up-scaling:
• 60p/50p/ 4:4:4 (HDMI2.0): Yes*4*5
• 24p/ 25p: Yes*4*5:
• 4K Direct Chroma Up-scaling: Yes*4
• 4K Networking (4K Video*6 Playback/ 4K JPEG Playback*4): Yes
• 4K VOD: Yes*7
• Picture Type Presets: (Normal / Cinema / Fine Cinema / Retro Cinema / Animation / Live)*8
• Block/ Random/ Mosquito Noise Reduction: Yes
• Video on Demand in HD Quality: Yes
• Ultra HD Premium: Yes
• Deep Colour: Yes
• x.v.Colour: Yes*9

High Quality Sound:

• TWIN HDMI: Yes
• Pure Audio on HDMI (HDMI Low Clock Jitter Process): Yes
• High Quality Network Audio Playback (DLNA): Yes*10 (FLAC / WAV / ALAC / AIFF / DSD / WMA / AAC / MP3)
• High Clarity Sound Premium: Yes
• Digital Tube Sound: Yes (Up to 192 kHz / 32 bit)
• Surround Re-Master: Yes*11 (Up to 192 kHz / 32 bit)
• Audio D/A Converter: Yes

Smart Features::

• Viewing Experience Controlled via Voice(Google Assitant/ Amazon Alexa)(Available for English): Yes
• Unit Display: Yes (Dot Matrix)
• Remote Control: Yes (Simple)
• Subtitle Position/Brightness Adjustment: Yes
• HDAVI Control 5 (VIERA Link): Yes
• Mirroring with Smartphone/Tablet: Yes*12
• Internet Apps: Yes*13
• Web Browser: Yes
• Wireless LAN System: Yes (Built-in) IEEE802.11 a/b/g/n/ac
• Network Contents Playback (Client & Renderer): Yes*10
• External HDD Playback: Yes*14
• Network Drive Access: Yes
• BD-LiveTM: Yes*15

Terminal:

• HDMI Output: Yes (2)
• Optical Output: Yes
• Analogue Audio LR Output: Yes*16
• Analogue Audio 7.1ch Output: Yes
• LAN (Ethernet) Terminal: Yes (for Ultra HD Blu-ray, Network Contents Playback*10, BD-LiveTM*15, Internet Apps*13 and Firmware Update)

Others:

• Video System: NTSC
• Power Supply: AC 120 V, 60 Hz:
• Power Consumption:
• Normal Use: 31 W
• Standby(Quick Start Off): 8 W
• Standby (Quick Start Off)-Network Standby Off: 0.2 W

Dimensions & Weight:

• Dimensions (W x H x D): Approx. 430 x 62 x 204 mm*17
• Weight: 2.4 kg

Note:

• *1 Discs recorded and finalized on recording devices.
• *2 HDMI connections and compatible equipment (e.g. AV Receiver) required.
• *3 Enabled by software update
• *4 For 4K Up-scaling playback a TV with same resolution is required.
• *5 For 4K/60p video, a high speed HDMI cable supporting 18 Gbps bandwidth is required.
• *6 MP4/ MKV/ TS (H.264/ HEVC) Up to 3840x2160 25p/ 30p, 4096x2160 24p.
• *7 Some network content services may not be available in your country.
• *8 Ultra HD Blu-ray and Photo (JPG/ MPO) are not supported.
• *9 This function is effective only when reproducing AVCHD data recorded with x.v.Color technology. The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required.
• *10 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.
• *11 CD sampling is done at 176.4/88.2 kHz.
• *12 A device that supports the Mirroring function and AndroidTM ver. 4.2 or higher is required.
• *13 Requires broadband Internet service.
• *14 The external HDD with capacities of 4TB or less in processing NTFS/ FAT32 data is supported. Playback is not possible with some external hard disk drives.
• *15 To enjoy content, you will need to insert a USB (1GB or more of free space). Requires broadband Internet service.
• *16 The analog 2-channel output terminal can also be used as an analog 7.1-channel output terminal.
• *17 Excluding the projecting parts.
• Specifications are subject to change without notice. All numbers given here are approximate.
