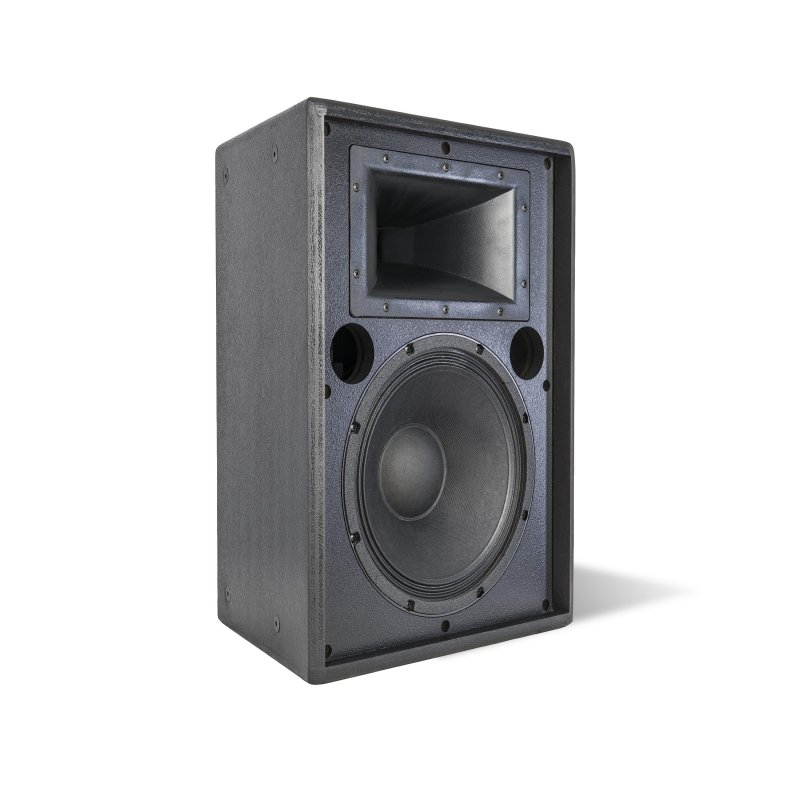

The KI-262 two-way trapezoidal loudspeaker is ideally suited for applications where small size uniform power response and ease of installation contribute to a quality sound solution. The Tractrix® Horn-loaded KI-262 is recommended for use in theaters, auditoriums, clubs, churches, and A/V production environments.

Able to hang using 12 built-in 3/8" 16-thread fly points the KI-262 provides the coverage control, fidelity, and reliability expected of Klipsch professional loudspeakers. The plywood enclosure uses dado "lock-joint" and rabbet construction techniques on CNC-fabricated panels for long-term reliability and ruggedness.

Specifications:

• Frequency Response: 75Hz-12.5kHz±4dB, -10dB 64Hz (see graph)
• Power Handling: 250 Watts (41.5V)
• Maximum Continuous Output: 125dB
• Dispersion Angle: 60° Horizontal X 40° Vertical (see graph)
• Directivity: 9dB (see graph)
• Sensitivity: 102dB
• Nominal Impedance: 8 Ohms, 6.9 Ohms Minimum at 195Hz (see graph)
• Crossover Frequency: 1400Hz, 12dB/Octave on LF,18dB/Octave on HF
• Overload Protection: KLIP Overload Tweeter Protection Circuit
• Components: K-42-KP 12" Woofer, K-52-TI 1.5" Titanium Diaphragm Compression Driver
• Enclosure Material: 18mm 13-Ply Baltic Birch Plywood Cabinet, 1" 11-Ply Birch Plywood Baffle
• Input Connections: Two NL-4 Speakon Connectors Wired in Parallel
• Depth: 13.375" (33.973cm)
• Height: 23" (58.42cm)
• Width Front: 16.813" (42.705cm)
• Width Back: 6.813" (17.305cm) 22.5° Angled Box
• Net Weight: 47 lbs. (21.338kg)
• Shipping Weight: 54 lbs. (24.516kg)
• Finishes: Black, White and Raw Birch
