With defined dispersion characteristics for perfect Dolby Atmos surround sound

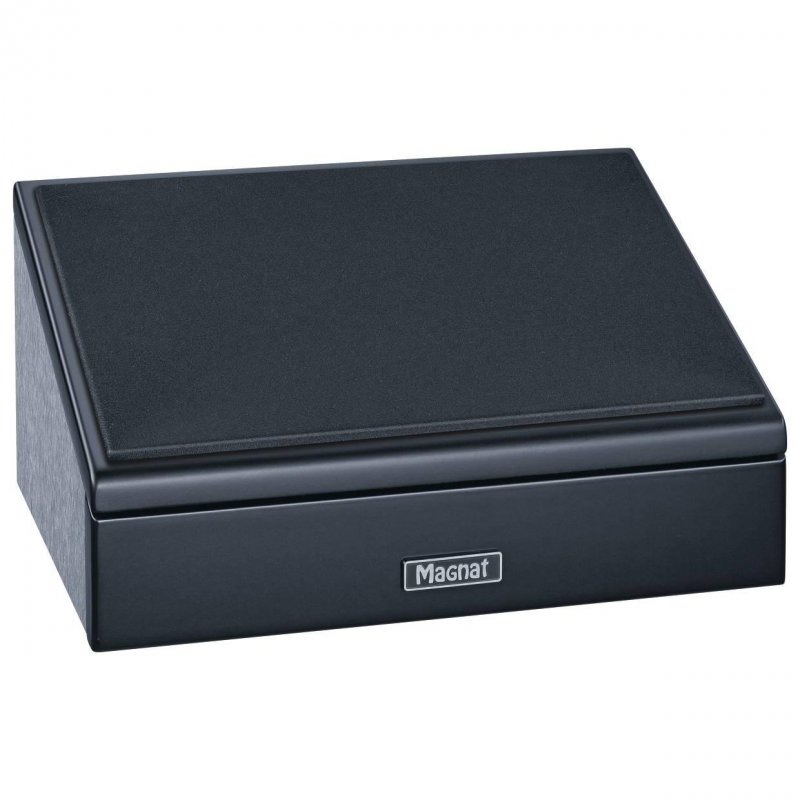

Dolby also imposes extremely strict requirements to ensure that the demanding multi-channel procedure can generate perfect reproduction. The dispersion characteristics and position of the add-on loudspeakers are important. A subwoofer with an integrated tweeter, a so-called coaxial driver, is the best option here. The Cinema Ultra AEH 400-ATM is a coax with a 13 cm bass plus 25 mm tweeter cone and is a perfect fit, in terms of both external appearance and installation depth, on top of an LCR 100-THX – which is also where it should be according to the Dolby guidelines. For those cases where home cinema fans prefer to mount the excellent sounding AEH 400-ATM on the wall or ceiling, we have, instead of the frequency response optimised for ceiling reflection as stipulated by Dolby, included a second crossover for linear reproduction which can be activated via a toggle switch.

Can be switched over to the di-rect radiator

The Atmos speaker can be switched from indirect radiation via the ceiling to direct radiation using a small toggle switch. This switchable sound characteristic ensures maximum flexibility.

Features:

High-performance Add-on Loudspeaker

• “Atmos mode” for ceiling reflection according to Dolby Atmos guidelines
• “Direct mode” for direct emission use on the wall or ceiling

Chassis

Crossover

Cabinet

• Offset baffle in a high-quality deep black silk matt lacquer finish
• Durable brushed-metal textured film in anthracite on the body
• Front panel and trim rings in matt black with a black chrome gloss ring
• Magnetically held cloth cover on a thin MDF frame
• Low-reflection metal logo in brushed titanium look

• Wall-fixing mountings according to the widespread VESA standard, hole pattern 100x100mm M4;
• Sturdy metal wall brackets for wall mounting with silicone spacer;
• Adhesive silicone feet provided for set-up on front loudspeakers, sideboards etc.

Specifications:

• Atmos-Modus: 3.200 Hz
• Direct-Modus: 3.300 Hz

• Front: black silk matt
• Body: textured film - anthracite
