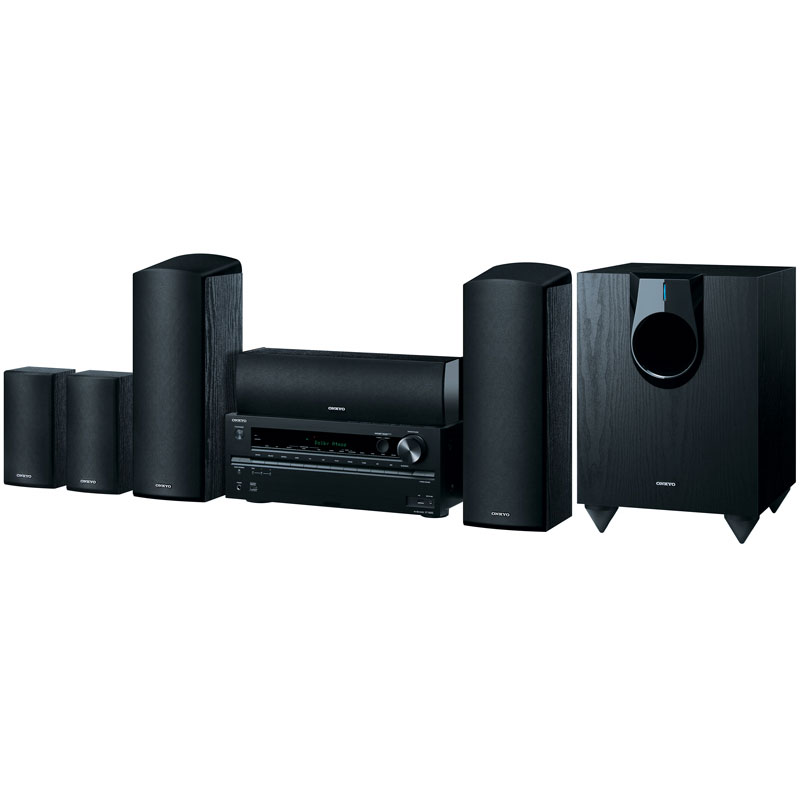

One Easy Step to Sensational Surround-Sound
Be among the first in the world to experience the power of Dolby Atmos® sound with the HT-S7700— the HTiB package with everything you need for next-generation home entertainment. Paired with Onkyo's high-current discrete amplification system is a Dolby Atmos-enabled speaker package designed to add multidimensional sound to the latest 4K/60 Hz games and movies. This solid and compact speaker system includes a subwoofer driving 120 Watts through a big 10-inch cone, and gives you a totally immersive audio experience. You can stream high-resolution music via built-in Wi-Fi® and remote app, and you can access the largest selection of internet streaming services around. Bluetooth is also built-in, with sound quality boosted by a Music Optimizer DSP mode. There's even a phono input to connect your turntable, and USB port for lossless audio. Graphical menus are overlaid via HDMI® 2.0 and there's a choice of preprogrammed or smartphone remote control, making this package a snap to set up and use
| RECEIVER | |
| Amplifier Section | |
| Power Output | |
| All Channels | 115 W/Channel (6 Ohms, 1 kHz, 0.7%, 2 Channels Driven, FTC) |
| Dynamic Power (front) | 180 W (3 Ohms) 160 W (4 Ohms) 100 W (8 Ohms) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20Hz-20kHz, half power) |
| Damping Factor | 60 (Front, 1 kHz, 8 Ohms) |
| Input Sensitivity and Impedance | 200 mV/47 k-ohms (Line) |
| Output Level and Impedance | 200 mV/2.2 k- ohms (Rec out) |
| Frequency Response | 5 Hz100 kHz/ +1 dB, -3 dB (Direct mode) |
| Tone Control | ±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 100 dB (Line, IHF-A) |
| Speaker Impedance | 6 Ohms16 Ohms |
| Video Section | |
| Input Sensitivity/Output Level and Impedance | |
| Video | 1.0 Vp-p/75 Ohms (Component Y) 0.7 Vp-p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 Ohms (Composite) |
| Component Video Frequency Response | 5 Hz50 MHz (-3 dB) |
| Tuner Section | |
| Tuning Frequency Range | |
| FM | 87.5 MHz107.9 MHz |
| AM | 530 kHz1,710 kHz |
| FM/AM Preset Memory | 40 stations |
| General | |
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 5.0 A |
| Standby Power Consumption | 0.15 W |
| Dimensions (W x H x D) | 17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 329 mm) |
| Weight | 19.8 lbs. (9.0 kg) |
| Speaker - Type | |
| Front/Center | 2-way Bass Reflex |
| Surround | Full-Range, Acoustic Suspension |
| Surround Back | Full-Range, Acoustic Suspension |
| Subwoofer | Bass reflex, Powered |
| Speaker - Drivers | |
| Front | 3 1/4" (8 cm) cone woofer x 2 1" (2.5 cm) balanced-dome tweeter |
| Center | 3 1/4" (8 cm) cone woofer x 2 1" (2.5 cm) balanced-dome tweeter |
| Surround | 3 1/4" (8 cm) cone |
| Surround Back | 3 1/4" (8 cm) cone |
| Subwoofer | 10" (25 cm) cone |
| Speaker - Frequency Response | |
| Front/Center | 55 Hz50 kHz / 60 Hz50 kHz |
| Surround | 80 Hz20 kHz |
| Surround Back | 80 Hz20 kHz |
| Subwoofer | 25 Hz150 Hz |
| Speaker - Output Sound Pressure Level | |
| Front | 79.5 dB/W/m |
| Center | 79 dB/W/m |
| Surround | 81 dB/W/m |
| Surround Back | 81 dB/W/m |
| Subwoofer | - |
| Speaker - Max. Input Power | |
| Front/Center/Surround | 130 W |
| Surround Back | 130 W |
| Subwoofer | - |
| Speaker - Max. Output Power | |
| Subwoofer | 120 W |
| Speaker- Nominal Impedance | |
| Front/Center/Surround | 6 Ohms |
| Surround Back | - |
| Subwoofer | - |
| Speaker - Input Sensitivity/Impedance | |
| Subwoofer | 540 mV/20 k-ohms |
| Speaker - Dimensions (W x H x D) | |
| Front | 6 1/8" x 18 3/8" x 7 3/16" (155 x 467 x 183 mm) |
| Center | 16 9/16" x 4 1/2" x 4 11/16" (420 x 115 x 119 mm) |
| Surround | 4 1/2" x 9 1/16" x 3 3/4" ( 115 x 230 x 96 mm) |
| Surround Back | - |
| Subwoofer | 12 1/2" x 18 7/16" x 15 11/16" (317.5 x 468 x 398 mm) |
| Speaker - Weight | |
| Front | 7.9 lbs. (3.6 kg) |
| Center | 5.1 lbs. (2.3 kg) |
| Surround | 2.2 lbs. (1.0 kg) |
| Surround Back | - |
| Subwoofer | 21.2 lbs. (9.6 kg) |
| UPC Code | |
| (B) | 751398012044 |
Product Details
- Onkyo HT-S7700
-
Brand New : Factory Sealed
- UPC : 751398012044
- EFLC : 3964
- Write a review
Warranty
Two Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Onkyo Authorized
Returns
Easy Returns
- 30-day return window on eligible items
- Full refund issued in accordance with our return policy
