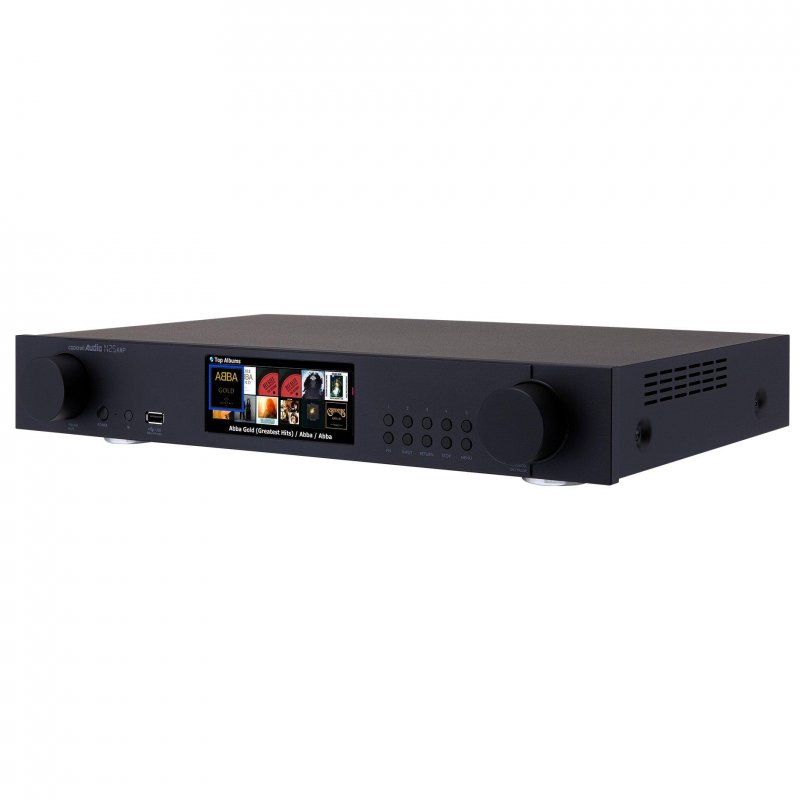

CocktailAudio N25AMP

All-in-one HiFi Audio Streamer & Player.

What is the CocktailAudio N25AMP

The N25AMP is the most advanced all-in-one network audio player in the world, featuring 150 watts powerful amplifier built-in, a Sabre32 Reference DAC chip and high-performance Dual Core ARM Cortex A9 processor, running at 1.0Ghz. It has been designed to meet all the requirements of digital music playback, keeping pace with today's digital world. The N25AMP is based on long proven cocktailAudio technologies, such as the hardware circuit design and versatile custom-designed software, developed by in-house R&D team, to achieve the best audio performance and ease of use across all its functions.

Simply connect the bookshelf speakers and you will have a great HiFi system with wonderful sound. It offers high-quality playback from local USB storage, home network sources like NAS, major online streaming services, internet radio, DAB+/FM radio, aptX HD Bluetooth, Soptify Connect, Airplay for iOS devices and much more. Optionally, the N25AMP provides Bluetooth transmission, allowing playback of music from the N25AMP via Bluetooth headphones or speakers. It also supports playback covering a huge variety of audio format including DSD, MQA, DXD, HD FLAC, HD WAV, CAF, ALAC, AIFF and more.

Additionally, for use as a complete and convenient music system throughout the home, the N25AMP provides not only Multiroom function(Group Play), carefully developed by cocktailAudio team over several years, but also a HDMI eARC Input to connect with TVs.

Finally, when paired with optional extras, you can expand its functionality as a music server, aptX Bluetooth transmitter, and more.

Hardware Specifications

• Equipped with a high-performance dual core ARM Cortex A9 processor running at 1.0Ghz
• Combined with 150 watts powerful class D amplifier built-in
• ESS ES9018K2M Sabre32 Reference DAC chip for D-A conversion
• USB Audio Class 2.0 output for connection to external USB DACs
• Isolated power supply circuit design, separate for digital and analogue sections, to remove electrical noise
• 4.6" TFT LCD screen (800 x 320 pixels) for intuitive GUI
• DAB+/FM tuner built-in
• HDMI eARC input built-in
• HDMI output for connecting external screens, such as a TV as the GUI screen, or for audio signal output
• Bluetooth receiver built-in, with support for SBC, AAC, aptX, aptX LL, aptX HD
• USB Audio Class 2.0 input
• High quality analogue output terminals
• Digital output (1 x Coaxial, 1 x Toslink)
• Digital input (1 x Coaxial, 1 x Toslink)
• USB 3.0 high speed host port x2, on the rear panel
• USB 2.0 host port x1, on the front panel
• Giga Fast Ethernet(10/100/1000Mbps) built-in
• Five (5) custom keys on the front panel for DAB+ or FM radio presets
• Precisely CNC-machined aluminum front panel and robust rigid steel chassis

Versatile functionalities and usage

• Support for major music streaming services - Amazon Music, HighResAudio, TIDAL, TIDAL MQA, Deezer, Qobuz, Spotify Connect, Napster and Internet Radio(Airable)
• Replaygain function to normalize loudness for individual songs or albums
• MultiRoom function (Group Play)
• Spotify Connect and Apple Airplay
• Support for various file formats including MQA, DSD(64/128/256), DXD(24Bit/352.8Khz), PCM signal up to 32Bit/384Khz including 24Bit/192Khz WAV/FLAC and a full range hi-res audio file formats
• High connectivity
• Versatile network functions such as UPnP Server/Client/Renderer, Samba Server/Client(Network File Server/Client) are supported
• Support as a certified 'Roon Ready' end point
• Multiple control methods with customized remote control App(NOVATRON MusicX NEO) for iOS and Android, desktop PC(Windows, Mac), IR remote control and well-organized functional keys on the device front

Optional Functions

• Bluetooth transmission function, with optional Bluetooth transmitter module
• Music server with music database, with storage is connected

High Performance System, with Custom-designed Software

Based on a dual core ARM Cortex A9 processor, running at 1.0Ghz, selected components and proven cocktailAudio software, the N25AMP meets all the requirements for modern digital music playback, with exceptional audio performance and versatile features.

Superior Sound Quality Through Expert Circuit Design and Carefully Selected Components

The N25AMP is built with premium components, such as the audiophile ES9018K2M DAC chips, as well as featuring enhanced hardware circuit design technologies, such as a clean power supply path through the use of separate digital and analogue parts, as a simplification of the signal circuit path. This results in the delivery of clear and transparent sound.

Audiophile D-A Converter Sabre32 Reference DAC

As the N25AMP is built based on the Sabre32 reference DAC, ES9018K2M, it can be used as an audiophile D/A Converter, with a wide dynamic range and low distortion when connected to compact disc players or any other digital audio source.

High Connectivity for Various External Devices

The N25AMP has high connectivity by offering digital inputs (Coaxial/Toslink), HDMI eARC in, 3x USB host ports, digital outputs (Coaxial/Toslink), analogue output, USB audio input/output, HDMI output, GigaFast Ethernet LAN, etc.

High Performance Class D Amplifier Built-in

The N25AMP offers dynamic total 150 watts powerful class D amplifier with lower harmonic distortion. Simply connect bookshelf or floorstanding speakers to get a great HiFi system with wonderful sound.

DAB+ and FM radio tuners

The N25AMP offers high quality digital radio via a DAB+ Tuner and also FM radio. Any song or broadcast can be recorded with high quality sound to external USB storage or NAS drives connected to the N25AMP.

USB Audio Class 2.0 input

Equipped with a USB Audio Class 2.0 input, the N25AMP can work as a USB digital to analogue converter (DAC).

USB Audio Class 2.0 output

An external USB DAC can also be connected, whilst using the N25AMP for its versatile streaming and music serving functions.

2x High Speed USB 3.0 Host Ports and 1x USB 2.0 Host port

For quick data transfer via connected devices, such as external USB storage, the N25AMP offers 2x high speed USB 3.0 host ports at the rear and 1x USB 2.0 host port on the front panel.

High Quality Analogue Out Terminals

A high quality, well-shielded, analogue out terminal guarantees lossless signal transmission.

4.6 inch wide TFT LCD for intuitive GUI

Through a high-resolution 4.6" wide TFT LCD on the front panel, the N25AMP can be conveniently operated using cocktailAudio's intuitive GUI.

HDMI eARC Input

The N25AMP offers HDMI eARC(Audio Return Channel) input so that your TV can be hooked up to enjoy wonderful sound via the speakers connected to the N25AMP.

HDMI out for External Screens or Audio Out

Connect external TV screens for a bigger GUI or a slideshow of photos while listening to your music collection. Alternatively, connection can be made to an AV receiver for audio out.

Five Front Panel Preset Soft Keys

The front panel features five preset soft keys for DAB+/FM radio or internet radio stations.

Multi-room (Group Play) Function

CocktailAudio's in-house software team have developed a multi-room (Group Play) function so even hi-res music, including DSD, MQA, 192Khz/24Bit HD FLAC, WAV can play seamlessly in any room of the home wirelessly. Play the same song in every room or play the same song with two devices as Left/Right channel in perfect sync.

Built-in aptX HD Bluetooth Receiver

Send music to the N25AMP conveniently from portable devices via Bluetooth, with support for various audio codecs such as SBC, AAC, aptX, aptX LL, aptX HD.

Roon Ready

As the N25AMP is 'Roon Ready' and is certified as an end point, you can control the N25AMP with Roon, one of the best ways to access digital music playback.

Apple Airplay and Spotify Connect

Play songs from iOS devices and music from Spotify via the N25AMP.

MQA (Master Quality Authenticated)

The N25AMP includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

Remote Control with Customized Remote App - MusicX NEO

Control the N25AMP wirelessly with the customised remote-control app, MusicX NEO, which is developed carefully by an in-house R&D team for complete yet simple and intuitive control.

Major Music Streaming Services Integrated

Stream music from tens of thousands of internet radio stations, Spotify Connect, Amazon Music, TIDAL, Deezer, Napster, Qobuz, HighResAudio, etc.

Support for a Wide Range of File Formats

The N25AMP supports most existing music file formats, such as MQA, DSD(64/128/256), DXD(24Bit/352.8Khz), PCM, 24Bit/192Khz WAV/FLAC, AAC, CAF, ALAC, AIFF, AIF, MP3, APE/CUE, Ogg, M3U, PLS, etc.

Versatile Networking & app control with MusicX NEO

Connect the N25AMP to your network for streaming music to and from other devices such as NAS drives, shared folders on PCs and control it all remotely via MusicX NEO. The N25AMP also supports various network protocols including UPnP Server/Client/Renderer, Samba Server/Client , etc.

Rugged and Durable Full-size Casing

The N25AMP front panel is formed of 10mm thick aluminium, manufactured by precise CNC cutting, then attached to a rugged metal chassis. This solid and stable construction aids high quality playback by reducing unwanted resonance.

aptX HD Bluetooth Transmitter

Send music streamed or served via the N25AMP to Bluetooth headphones or Bluetooth speakers. The optional N25AMP Bluetooth transmitter module supports various Audio Codec like SBC, AAC, aptX, aptX LL, aptX HD. * Bluetooth transmitter module required.

Create the Music database from the scanned metadata of the music files in the connected USB storage

Connect the external USB storage to the N25AMP to store large amounts of music files. The N25AMP will scan all music files stored in the USB storage, and will build the Music database from the scanned metadata only without transferring the music files themselves.

Clever and convenient functions with Music Database

The N25AMP has an intuitive and powerful Music Database built-in, which offers simple and convenient functions to manage music collections, such as SEARCH, list views by text or cover art, SORT, and various view types (album, artist, etc..).

Edit music tag info

Change or enter information about each album, track or recording for easy browsing. Use a USB keyboard to edit song tag information easily.

Optional WiFi USB dongle for wireless networking

For wireless networking an optional USB WiFi dongle can be purchased.

Create the Music database from the scanned metadata of the music files stored in the NAS drives

Add the shared folders to the N25AMP by the NET share on the Browser. The N25AMP will scan all music files stored in the shared folders of the NAS drives, and will build the Music database from the scanned metadata only without transferring the music files themselves.

Features:

Comprehensive and Clever Functions

Included for greater flexibility and control of the user experience.

1. Alarm


Set an alarm so the N25AMP turns on at a predetermined time.

2. Sleep Repeat


Set specific sections to play on repeat.

3. Sleep Function


Automatic power down, with a single press of the remote control, after a preset time.

4. HDD Format


Quickly format hard disks with Linux or NTFS file systems for use with the N25AMP.

5. Clock & Display OFF


Press CLOCK on the remote control to show the current time.

6. Auto Shutdown


Schedule a time for the N25AMP to power down.

7. Seek to Percent mode


The 'Seek to Percent' function offers a quick way to jump to any point in a track using the number buttons on the remote.

8. Gapless Playback


Set the N25AMP to ignore gaps between tracks for unbroken playback.

9. Jump to Song Mode


During playback, a press of the CAP/ NUM button on the remote will toggle the 'Jump to Song' or 'Seek to Percent' functions. In 'Jump to Song', pressing a number will skip to that track.

10. Resume Play


After power on, playback is automatically resumed from wherever it was last stopped.

11. Display mode


Change the display mode of the Music DB to list by Album, Genre, Track, Artist, Composer, Year, Mood, etc.

12. Make Playlists


Create permanent playlists for favourite music.

13. Scroll Speed


Control the text scroll speed on the screen.

14. 'My Playlist'


My playlist is a special 'virtual playlist' for creating a play cue. It disappears when playback is stopped.

15. Listing by Text or Cover Art


Switch between album or song lists, displayed with text or cover art, with one press of the remote control.

16. Audio file format conversion


Convert existing audio files into other formats, (e.g. mp3, FLAC, WAV, MP4) for use on other devices - digital audio player, smart phone, car stereo, etc.

Specifications:

Model Name:

• cocktail Audio N25AMP

Host CPU & Memory:

• CPU: Dual Core ARM Cortex A9 running at 1.0GHz
• Main Memory: DDR-1066 1GByte
• NAND Flash 8GByte

Display:

• 4.6" TFT LCD(800 x 320pixels)(* able to connect to ext. screen via HDMI out)

Interface:

• Key & Jog(Volume/Scroll), IR Remote Control, Customized Remote App for iOS and Android devices

Amplifier (Speaker Out):

• Rated output 75W + 75W@1Khz, 8ohm, 0.1% THD (Total 150W) (Max Total 230Watts)

Analog Out (Sabre³² ES9018K2M DAC):

• Unbalanced (PRE-OUT):
• RCA, Dynamic Range: 127dB (Max 2Vrms, Stereo) THD +N: -110dB(0.0003%)
• Frequency Response: 20~80KHz(±0.2dB)

Digital Output (Variable/Fixed):

• COAXIAL x 1: S/PDIF 75ohm RCA, Sample rate: up to 24bit/192KHz
• TOSLINK x 1: S/PDIF, Sample rate: up to 24bit/192KHz
• USB Audio x 1: USB Audio Class2.0 Output
• HDMI Out x 1: HDMI Audio Out(*Shared with HDMI Out for external screen)

Digital Input:

• COAXIAL x 1: Sample Rate: up to 24bit/192Khz
• TOSLINK x 1: Sample Rate: up to 24bit/192Khz
• HDMI eARC IN: Up to PCM 192KHz/24Bit

USB Audio Input (USB DAC):

• USB B type connector, USB Audio Class 2.0 input (support up to PCM 384Khz/32Bit, DSD Native 256, and DoP 128)

Bluetooth SINK(Receiver):

• BT 5.0 supports
• Profile : A2DP/AVRCP
• Audio Codec: SBC, AAC, aptX, aptX LL, aptX HD

Tuner:

• DAB+ / FM Radio: Selectable for DAB/DAB+ or FM Radio

Connectivity:

• USB Host
• USB3.0(5V/1A) x 2 at rear
• USB2.0(5V/1A) x 1 at front
• Network
• Wired: Giga Fast Ethernet(10/100/1000Mbps)
• Wireless(Option): ** 802.11b/g/n WiFi USB dongle(Option)

Codec & Format Supported:

• MQA, PCM 384Khz/32Bit, DSD(DSD64, DSD128, DSD256), DXD(24Bit/352.8KHz), HD WAV(24Bit/192KHz), HD FLAC(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, CAF, Ogg Vorbis, PCM, M3U, PLS, etc

Network Protocols Supported:

• UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc

Internet Services:

• Internet Radio: Airable
• Online Music Services: Amazon Music, TIDAL, TIDAL MQA, Deezer, Qobuz, Napster, HighResAudio, Spotify Connect

Supported OSD languages:

• English, German, French, Spanish, Italian, Polish, Dutch, Russian, Traditional Chinese, Simplified, Chinese, Japanese, Korean,(To be added by request)

Isolated Power management:

• Linear Transformer: For audio signal management
• 400W internal SMPS: For digital CPU management

Power Source:

• 220V area: AC 220V - 240V, 50/60Hz
• 110V area: AC 110V - AC 120V, 50/60Hz

Mechanical:

• Material
• Front: 10mm thickness aluminum by CNC cutting
• Knob: Aluminum by CNC cutting
• Body: Metal

• Dimension
• Without foot: 440mm(W) x 260mm(D) x 61mm(H)
• With foot: 440mm(W) x 260mm(D) x 73mm(H)
