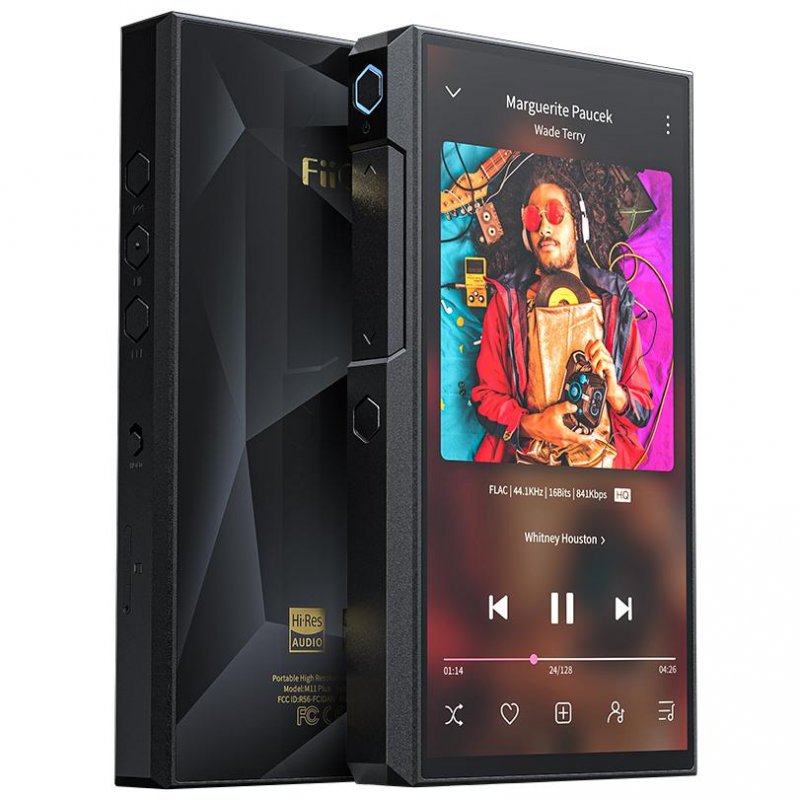

Crown Jewel of Portable Music Player

• Out of print AK4497EQ*2
• THX AAA-78*2 amps
• Legendary octa-core Snapdragon 660 6th-gen honeycomb design
• 5.5-inch 18:9 bezel-less screen Global MQA 8x decoding New Digital Audio Purification System (DAPS)
• New-gen interactive intelligent volume system

A grand finale of high-end chips Out-of-print AK4497EQ DAC

The M11 Plus LTD is equipped with 2 of the now out-of-production AK4497EQ DAC chips with their unique, soft, and natural charm that will allow you to rediscover your music all over again.

• Native decoding: DSD512
• Max PCM support: 768kHz
• Signal-to-noise ratio: 131dB
• Distortion: 116 dB

The parameters above came from the chip. For specific parameters of the device, please refer to the parameter list.

Legendary octa-core Snapdragon 660 Smooth

In the M11 Plus LTD is a Snapdragon 660 with a 4 big / 4 small core architecture plenty capable of providing a smartphone- like smooth experience. Not only can the chip capably handle tasks like watching videos and playing games, it can also ensure ultra-low power consumption when only listening to music for better battery life.

• RAM + Internal storage: 4G + 64 GB
• GPU: Adreno 512
• Process: 14nm

Immersive live concert listening experience Neutrally pure amp architecture

Thanks to the feed-forward error correction technology and "neutral" design, the THX AAA-78 amps of the THX AAA Frontier series will let you experience every last sound and detail faithfully restored and placed in the soundstage, as if you were in the recording studio.

New anti-interference circuit design

The M11 Plus LTD adopts a totally new internal layout and a patented modular circuit design. Each module of the circuit has its own shielding cover, which also means that the digital and analog portions are totally separated. This ensures that these parts do not interfere with each other and ultimately results in purer sound.

Enhanced power supply

Rock on with heavenly sound

The front low-pass filter, small signal amplification, and amp expansion circuit each have their own independent power supplies - all for achieving a stronger overall power supply for better dynamics. Additionally, many measures have been taken to ensure excellent temperature management - including independent shielding covers of different components, use of customized thermal silica gel and graphene, and nickel silver heatsinks all to absorb and dissipate heat as needed. Rock on without actually worrying your device will burn!

All-new DAPS (Digital Audio Purification System) , 4th-gen FGPA + NDK femtosecond crystal oscillator

Audio data is passed through a FiiO-developed 4th-gen FPGA with phase-locked loop technology, which works together with two custom Japanese NDK femtosecond crystal oscillators to provide a high-precision and low jitter unified clock source for the entire audio architecture. This is all done in the pursuit of purer sound.

Go wireless HiFi SBC/AAC/LDAC two-way Bluetooth

Besides support for AirPlay and DLNA streaming, newly added is support for the AAC codec for Bluetooth transmission and reception so that iPhone owners can also enjoy truly high fidelity wireless sound. Bluetooth 5.0 transmission support: SBC/AAC/aptX/aptX-HD/LDAC Bluetooth 5.0 reception support: SBC/AAC/LDAC

FiiO's 6th-gen honeycomb

The M11 Plus LTD inherits the well-received 3D cut designs of the M11/M11 Pro, while innovating with new hexagonal honeycomb design elements. The body and buttons of the M11 Plus LTD seamlessly come together in a design that is both exquisitely beautiful, yet bold and aggressive. This is one device that is sure to immediately catch your eyes.

Dazzling diamond cut textured

Contrasting with the bold aggressiveness of the rest of the device is the delicate, exquisite diamond cut texture of the rear cover. Due to the refraction of light, looking at the back cover from different angles produces different looks for a gorgeous and delightful aesthetic.

New generation interactive intelligent volume system,Unique all-in-one volume button + touch panel

Let go of the traditional volume wheel, and embrace the volume button + touch panel. Not only does this volume panel take up less space (leaving more for other components), it also brings an unprecedented volume change experience either through precise adjustments with buttons or by sliding on the touch panel. 5 volume adjustment methods supported: Sliding on panel, buttons, touchscreen, FiiO Link, and Bluetooth remote control.

Insist on a better 5.5-inch 18:9 screen

Not all screens are created equal to a bezel-less one. The M11 Plus LTD has an upgraded 5.5-inch HD screen with even more gorgeous colors and an accurate color temperature. And its 18:9 screen ratio is the perfect combination of maintaining an excellent visual experience while making for a more comfortable grip.

Ready for 2.5/3.5/4.4! Newly added balanced line-out

In addition to the 2.5/3.5/4.4mm headphone outs, a new 4.4mm balanced line-out is also added, allowing the perfect connection to many headphones/amplifiers in a single device.

3 gain levels for all kinds of headphones

While the M11 Plus LTD can output a mighty 588 mW, there are 3 gain levels- low, medium, and high. Each gain level has 120 volume steps, allowing you to dial in the volume to exactly where you want. The M11 Plus LTD is perfect whether you are using high-impedance headphones or high- sensitivity earphones.

Beautiful, Convenient, Efficient New Android 10 version

The M11 Plus LTD contains the first iteration of FiiO's version of Android 10, with 137 icons redrawn, every detail customized and inspected, everything made sure to be beautiful yet intuitive. New functions such as dark mode, night mode, and three navigation options give you new ways to further enhance your media experience.

Five modes for all situations

Bluetooth receiving mode

Listen anytime, anywhere when connected via Bluetooth

USB DAC mode

Connect to any computer to make them sources of music

AirPlay mode

Allows iPhone users to get around AAC-limited Bluetooth

Android mode

Enjoy 3rd party apps and play to your heart's content

Pure Music mode

Be free from other applications and be purely immersed in your music

Unlimited possibilities with the shortcut button

With the highly-customizable FiiO-exclusive shortcut button, you can execute previously complex operations with just one click to your liking.

• -One click for random next track
• -One click to delete currently playing song
• -One click to switch filters
• -One click to switch EQ
• -One click to enter USB DAC mode
• -One click to enter Bluetooth reception mode

Massive 6000 mAh battery with 27W smart fast charging

Thanks to the ultra-small size of the volume adjustment system, the M11 Plus LTD contains a huge 6000 mAh battery with support for QC2.0/3.0/4.0 and USB PD fast charging. After a full charge, the M11 Plus LTD can be continuously listened to for 11.5 hours and can remain in deep standby for up to 1000 hours.

• Continuous playback: 11.5h
• Fast charging: 3H
• Long standby: 41day

*The data came from comparisons with the M11 Pro (Type C port).

3rd-gen All to DSD technology for a purer sound

The FiiO-developed All to DSD technology is now in its 3rd generation, with 30% lower power consumption compared to the previous gen, less unwanted harmonics, and a softer, purer sound.

Master-quality sound reproduction Global MQA 8x decoding support

The M11 Plus LTD supports decoding MQA tracks in 8x mode-allowing for rich, master-quality sound reproduction with high sampling rates in manageable file sizes.

"High Fidelity Audio Products (CPHA)" certified recognized by a leading national body

CPHA is currently the authoritative body on certifying mid-to high-end audio products in China through comprehensive objective testing and subjective evaluation, while also providing references to companies looking to improve their products' sound quality.

Hi-Res Audio certified

The M11 Plus LTD is Hi-Res Audio certified in recognition of its ability to present richer musical details in highly realistic soundscape.

Hi-Res Audio Wireless certified

The M11 Plus LTD is Hi-Res Audio Wireless certified, being able to support 24 bit/96kHz and above as well as supporting the LDAC Bluetooth format for excellent performance.

Serious about car sound National patent competition winner In-vehicle mode

FiiO has conducted in-depth research on the in-vehicle usage habits of hundreds of audiophiles all around the world to continuously optimize the user experience while in the car. The in-vehicle mode automatically turns on and off the player in sync with the car, while the user interface changes to make in-vehicle use safer and easier.

Quality Accessories

Tempered glass screen protector with oleophobic layer, exquisite custom leather case, USB 3.0 data/charging cable

Specifications:

• CPU model: Qualcomm Snapdragon 660
• DAC: AK4497EQ*2
• Amp: THX AAA-78*2
• Screen: 5.5 inch 1440x720 incell touch screen
• Dimensions: 136.6x75.7x17.6mm
• Weight: About 310g (Black)
• USB: TYPE C Two-way USB3.0
• Battery: 6000mAh High-voltage quick-charging Li-polymer battery
• Battery life: 11.5h for PO;10 h for BAL
• Charging time: About 3h(QC4.0 quick charge)
• PO Output power: 206mW(32Ω)
• BAL Output power: 588mW(32Ω)
• Frequency response: 5Hz~90kHz(-5dB)
• SNR: ≥120dB
• THD+N: <0.0006%(A-wt.)
• Noise floor: PO<2µV;BAL<3µV
• Output impedance: PO≤1Ω;BAL≤2Ω
• Max output specification: 384kHz-32bit;DSD256
• Supported third party apps: Apple Music, Google Play, etc
