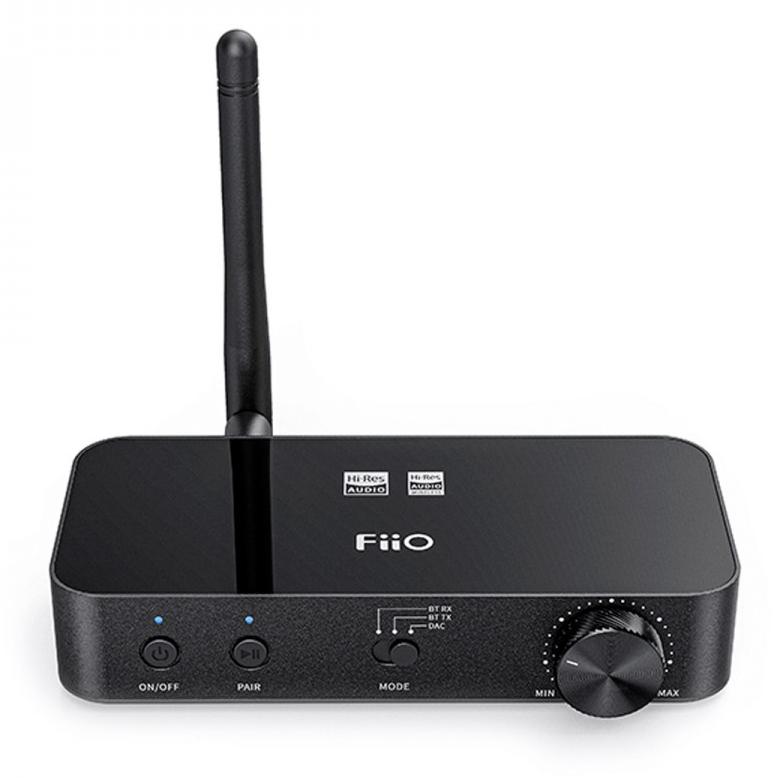

Versatile and powerful, the FiiO BTA30 is a Bluetooth receiver and transmitter, but also a DAC. Featuring a complete set of connectivity, a control application and very good sound qualities, the BTA30 is the ideal companion to enjoy your music with ease.

3 Modes of operation

The BTA30 offers 3 distinct operating modes: Bluetooth reception (BT Rx), Bluetooth transmission (BT Tx) and DAC. The selection is made simply by a button on the front of the device. The embedded Bluetooth chip supports high resolution codecs such as aptX-HD and LDAC.

Bluetooth Reception

Bluetooth Transmission

DAC

Complete Connectivity

Although compact, the BTA30 is equipped with a complete set of connectors. It is equipped with Bluetooth 5.0, Toslink Optics, Coaxial and USB-C. At the output, the device offers Bluetooth, Optical, Coaxial and RCA line output.

The coaxial input and output are shared on a single connector.

The USB-C connector allows both data transmission and power supply to the unit.

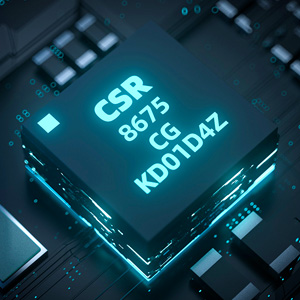

Bluetooth CSR8675 Chip

Bluetooth reception and transmission of the BTA30 is enabled by a Qualcomm CSR8675 Bluetooth chip, supporting transmission up to 24bit 96kHz (depending on the codec used).

High Performance DSP

The BTA30 also features an independent CR5302SN DSP, which allows the BTA30 to tune to the different formats supported by the camera. In addition, it allows 192kHz upsampling of all digital audio streams for improved accuracy and listening experience.

AK4490EN DAC

The digital/analog conversion is carried out by an AKM AK4490 chip with excellent performance. Its implementation allows you to enjoy a great sound richness thanks to a better SNR and a better dynamic range than the DAC integrated in the Bluetooth chip. The DAC is combined with film capacitors for clearer and more transparent highs.

Volume control

The BTA30 incorporates a high level volume control. This allows a precise adjustment of the sound level thanks to the ADC curve reconstruction. It acts on both digital and analog output volume and can be remotely controlled via the mobile application.

When using the unit in USB DAC mode, the volume control cannot be used.

Control App

Your smartphone, when connected to the BTA30, can control the BTA30 via the FiiO Music or FiiO Control application. The application allows you to act on the balance, filters, Bluetooth format priority, to disable LED indicators, to adjust the volume level and to activate a fixed output level.

Download FiiO Control app for Android

Download FiiO Control app for iOS

Download FiiO Music app for Android

Download FiiO Music app for iOS

Dual Hi-Res certification

The BTA30 has the dual certification of Hi-Res Audio and Hi-Res Audio Wireless, awarded by the Japan Audio Society. These certifications guarantee high quality sound reproduction.

Specifications

• Product type    Bluetooth Receiver
• Inputs    Bluetooth 5.0
• 1x USB-C
• 1x Optical Toslink
• 1x Coaxial (shared with the output)
• Outputs    1x Optical Toslink
• 1x Coaxial (shared with the input)
• 1x RCA stéréo
• Bluetooth Chip    CSR8675
• DSP Chip    CR5302
• DAC Chip    AK4490
• AOP    OPA1662
• Supported Bluetooth codecs    SBC, AAC, aptX, aptX-HD, aptX LL, LDAC
• Supported sampling rates    Optique : PCM jusqu'à 24bit 96kHz
• Coaxial : PCM jusqu'à 24bit 192kHz, DSD64 (DoP)
• USB : PCM jusqu'à 16bit 48kHz
• Transmission range    Approx. 30m (without obstacles, SBC codec)
• LED Indicators    SBC : Blue
• AAC : Teal
• aptX HD : Yellow
• aptX : Purple
• aptX LL : Green
• LDAC : White
• Analog output level    Max 3Vrms
• THD+N (RCA)    0.002% (SPDIF input 24bit 48kHz, 1kHz -3dB)
• SNR (RCA)    115dB

GENERAL

• Housing material    Aluminum
• Color    Black
• Dimensions    120 x 55 x 23.5mm
• Weight    115g
• Package    1x FiiO BTA30
• 1x Bluetooth Antenna
• 1x USB Cable
• 1x RCA Cable
