Android-based smart portable music player. Mastering quality lossless playback.

Powerful, power-saving CPU with 4x Cortex-A9

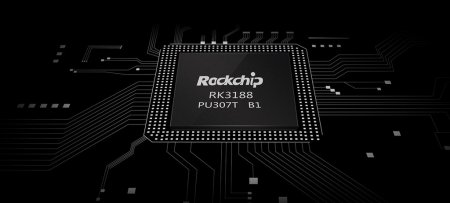

The X7 utilizes Rockhip's RK3188 SoC, Cortex-A9 cores(each 35% faster than Tegra3at CPU and GPU performance respectively. The RK3188 is also made in a new 28nm process, 55% faster and 60% more power efficient than the 45nm LPSoC process, ensuring long runtime with ultra-low leakage current.

No-compromises DAC for the Ultimate Sound

Designed originally for hi-end home audio, the X7 is one of the utilize the original ESS ES9018S in portable audio. Its 8 output channels can be bridged 4-a-side for an astonishing 135dB S/N ratio and dynamic range, while THD is as low as - 120B. Compared to the ES9018K2M popularly used in portable devices, the original ES9018S features 6dB higher SNR and dynamic range at the higher power consumption, a cost that the X7 is willing to pay with its robust power section.

Patebtd siyrce+ amp design for best of both worlds

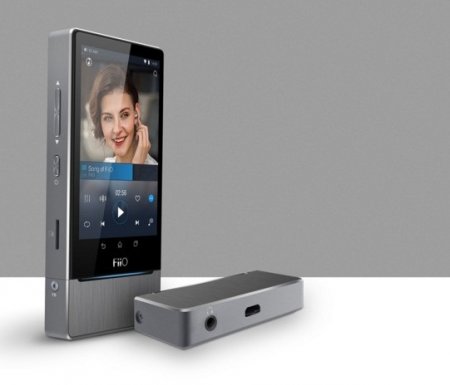

Patent-pending dedicated source module + independent headphone anp module design keeps the compact integrated profile of a single portable music player while providing the sonic advantages of utilizing a separate headphone amplifier. The resulting customizability allows you to customize the resulting sound (warm, neutral, etc.), output power (for driving IEMs or full-size headphones) or output port (single-ended or balanced, etc.) by choosing among different modules.

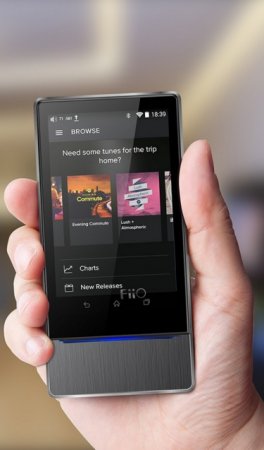

Reasonablu sized for one-handed operation

The X7 utilizes a full multitouch screen for operation. Obviously, when it comes to music players, larger isn't always better. After extensive comparison with other music players, we settled on a width of 64mm, which is a comfortable middle size between 58.6 (iPhone5) and 67mm (iPhone6) that is very suitable for one-handed operation.

Given the unavoidable thickness of the X7 from having a flagship-class DAC, amp and a battery to the match, making the X7 comfortably handholdable from a thickness point of view is also a significant challenge. The X7 is carefully bevelled at the edges and also has a stepped design at the back, which has proven to be a comfortable hold in user testing.

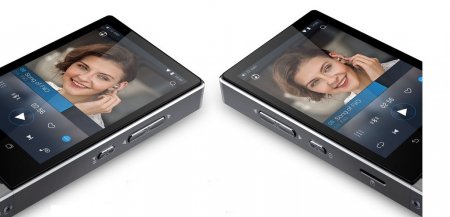

Symmetrical button design Customizable mapping for left/right handed control

We each have our handedness preference for pressing buttons on the side of the player;the X7 carries 6 hard buttons, 3 on each side in symmetrical layout: volume +/-, prev/next track, power, play/pause; all of which may be mapped to either the left or right side for your most comfortable control.

Precision machining tolerances for reliable connections

To ensure that the headphones amp module is easily mounted and removed, with reliable connections, precision machining; the chassis is CNCed in difficult side-on- manner requiring precise assembly and each part is examined via magnified projection before being accepted for use. The expansion module is secured via stainless steel star screw, which may be unscrewed using the provided tool. Hardened bronze screw nuts are installed within the chassis for reliable multiple installation and reinstallation of modules without fear of loosening connections.

Quality supplier, precision CNC equipment, ensuring every X7 is successfully produced

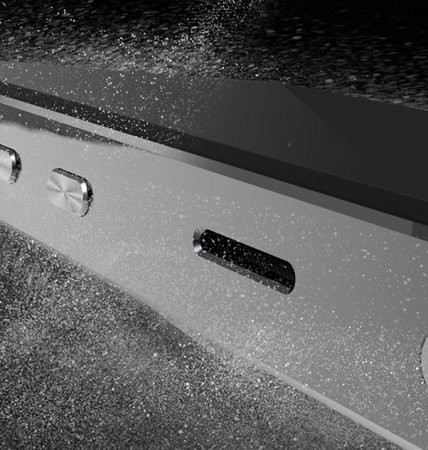

Carefully chosen aluminium blocks are clamped to machining brackets. CNC machine bevels and machines the six sides according to the customized computer programs. The main body chassis alone take 160min to cut into shape. Onto the surface finishing production line; the chassis needs to be polished and cuts removed before the sandblasted finish is to be applied using microscopic metal beads. Onto anodizing, which takes place only after each part is thoroughly soaked in cleaning solution. Coloring takes place through microscopic pore opening, color anodizing and finally microscopic pore closing. Thus each part takes 40 minutes to color. Finally we come to diamond edge bevelling; the edges on both the and back of the X7 are bevelled using the same processing as for an iPhone 5, where in the diamond cutter revolves at 30,000 rpm to bevel the edges to a mirror finish, and a protective surface is formed under the instantaneous high temperature to produce the aesthetic bright bevelled edges. The bronze mounting posts are then riveted and the whole chassis is inspected and packaged.

• 160min: CNC machinig
• 80min: Color anodizing
• 100min: Buttons machinig
• 50min: Headphone amp module machining

ALL-purpose player - universal decoder

Not only does the X7 support popular lossless/lossy music such as wav, FLAC, APE, ALAC, ALFF,WMA, MP3, OGG, etc. higher formats such as DXD, DSD64/128 and PCM are supported at up tp 384kHz/64bit|5.6MHz (DSD).

X7's own customized music app

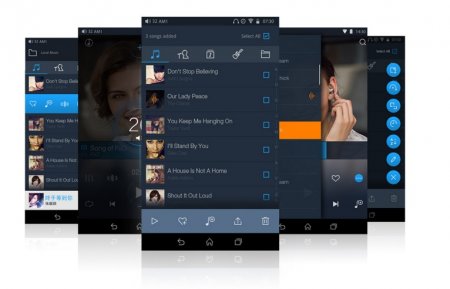

X7's embedded music app (FiiO Music) player apps, the X7 music app handles lossless music more proficiently and is more user-friendly. The UI is clear and concise, and all status indicators and controls are available at your fingertips in a few screens.

Intuitive and Powerful

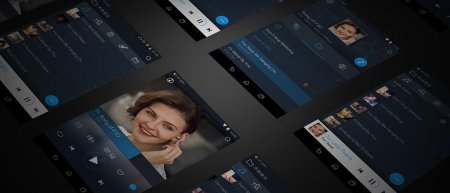

Designed for the advanced audiophile. Swipe from left edge of screen to show the Now Playing playlist; slide up and down on the right side of the screen to adjust volume; the X7 also has other features such as custom playlists and batch addition of deletion of song favorites.

More fun with accessories for X7

The X7 supports pairing with Bluetooth devices for effortless wireless music playback and remote control; 3rd party apps may be used to connect to ultimate online music via WiFi. Through firmware updates, playback via DLNA, NAS and cloud storage will also be supported by the FiiO Music app.

Docking expansion functionality

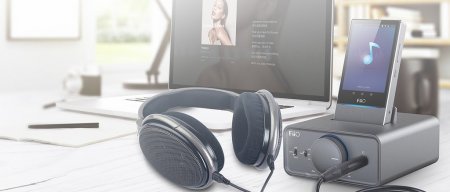

Coming home from a day enjoying Hi-Fi music from the X7 on the move, you may plug the X7 onto the FiiO-exclusive docking amplifier K5 for even higher-grade home listening! The K5 charges the X7 while providing extra functionality such as > 1.5W output power, balanced line out, and aux line in, while the X7 may continue to be connected to the computer to the computer via the K5 for e.g. USB DAC function.

Specifications:

Main Unit

• CPU Model: RK3188
• CPU Operating Frequency: 1.4GHz
• Keyboard: Virtual QWERTY keyboard
• Special features: Dual Android / Pure Music operating modes, symmetrical remappable keys, separate interchangeable amp modules, USB DAC, docking connector, etc.
• Operating System: Deeply customized Android 4.4.4
• No. of Cores: 4
• DAC: ES9018S
• Input Method: Touchscreen
• User Interface: Android 4.4.4 / FiiO Music

Connectivity

• WIFI: 2.4GHz IEEE802.11 b/g/n standards supported
• USB: Micro USB2.0
• Bluetooth: 2.4GHz Bluetooth V4.0 + EDR

Display Screen

• Display Size: 3.97 inches
• Display Type: IPS TFT
• Resolution: 480x800
• Touchscreen: Tracks up to 5 simutaneous touch points
• Number of Colours: 16.7 million colors
• Viewable Angle: 178°
• Pixel Density: 233 ppi

Sensors

• Light Sensor: Included
• Accelerometer: Included
• NFC: Not included

Storage

• RAM: 1GB
• Storage Expansion Type: Micro SD
• Maximum Storage Expansion: 128GB
• Total ROM: 32GB
• ROM Available to User: About 27G

Buttons and Ports

• Buttons: Side buttons + touchscreen
• Headphone Out: 3.5mm TRRS (supports in-line remotes)
• Line out / Coaxial Out: 3.5mm TRRS composite port
• Custom Key Mapping: Supported (track and volume controls)
• Balanced Output: Supported (balanced amp module sold separately)
• USB Connection: Micro USB2.0 (charging / data transfer / docking function / USB DAC)

General

• Color: Titanium
• Weight: 220g
• Recommended headphone Impedance: 16~300 Ω (depending on fitted amp module)
• Bass Boost: N/A
• Balance Control: Max. 10 dB bias
• USB DAC: Up to 384kHz/32bit supported, DSD supported (driver installation
required on computer)
• Dimensions: 130 mm x 64 mm x 16.6 mm
• Volume Control: 120 steps +/- button control (via analog-domain controller
• Equalizer: 10-band EQ (±6dB), 8 presets+custom preset, freestyle EQ curve drawing planned
• Treble Control: N/A
• Gain Control: Low / High

Power Specifications

• USB Power Adapter: DC5V 2A recommended
• Charging Indication: Via LCD display and pulse LED
• Battery Indication: Yes (Accurate battery % readings)
• Battery: Internal 3500 mAh Li-polymer battery
• Play Time: About 9 hours (32Ω headphones driven to normal listening levels via IEM amp module, display off)
• Charging Time: <4.5h (using USB 5V 2A charger)

Others

• Firmware upgrade: Supported both via zip file and OTA
• Font Size: Changeable

Partial Performance Parameters for Line Output

• THD+N: <0.0007% (10 KΩ/1 kHz)
• Frequency Response: 20 Hz~20 kHz
• Channel Separation: >100 dB (10 KΩ/1 kHz)
• SNR: ≥115 dB (A-weighted)
• Dynamic Range: >115 dB
• Line Level: >1.4 Vrms (10 KΩ/1 kHz)

Partial Performance Parameters for Headphone Output

• Output Power 1: >100 mW(32Ω/1 kHz)
• Output Power 2: >200 mW(16Ω/1 kHz)
• Output Power 3: >10 mW(300Ω/1 kHz)
• Frequency Response: 20 Hz~20 kHz
• SNR: ≥115 dB (A-weighted)
• Output Impedance: <0.2 Ω(32Ω load)
• Channel Separation: >73 dB(32Ω/1 kHz)
• THD+N: <0.0008% (32Ω/1 kHz)
• Peak Output Voltage: >5.2 Vp-p
• Max. Output Current: >250 mA(For reference)

Audio Formats Supported

• DSD: DSD64/128(".iso", ".dsf", ".dff")
• DXD: 352.8K
• APE FAST/High/Normal: 384kHz/24bit(MAX)
• APE Extra High: 192kHz/24bit (MAX)
• APE Insane: 48kHz/24bit (MAX)
• Apple Lossless: 384kHz/24bit (MAX)
• AIFF: 384kHz/24bit (MAX)
• FLAC: 384kHz/24bit (MAX)
• WAV: 384kHz/64bit (MAX)
• WMA LOSSLESS: 96kHz/24bit (MAX)

• MP2, MP3, AAC, ALAC, WMA, OGG...
