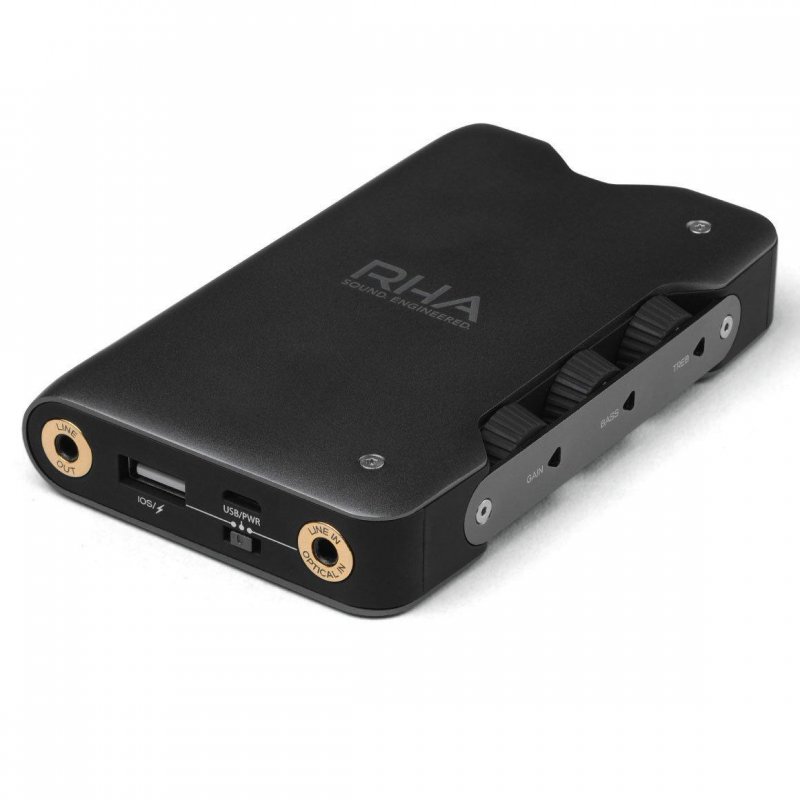

The Dacamp L1

The Dacamp™ L1 bypasses the internal signal processing components of mobile and desktop devices with high-resolution digital-to-analog converters and amplifiers for clear and precise Hi-Fi sound, anytime, anywhere.

Portable Hi-Fi

Hi-Fi Audio Anywhere and at Any Time

RHA's Dacamp L1 receives and processes digital audio signals from mobile and desktop devices, restores subtleties, imaging, and depths lost due to inferior sound processing components, producing quality that is as close as possible to the original recording.

The Dacamp has been awarded the "Hi-Res Audio" certificate by the "Japan Audio Society".

Double DAC, Double Amplifier

Revolutionary Channel Processing

With dual ESS Sabre 32 ES9018K2M digital-to-analog converters and amplifiers of class AB of Dacamp L1 has a fully symmetrical circuitry. The result is accurate, high-quality audio playback with support for audio formats up to 384 kHz / 32 bit PCM and Quad DSD (11.2 MHz, DSD256).

Sound, Your Way

Bass, Treble and Gain Control

In addition to the three sound levels, the Dacamp L1 offers unprecedented control over low and high frequency ranges with 12-step physical knobs (-3 dB to 9 dB) to adjust the sound to your needs.

Compatibility

Inputs Compatible with Multiple Devices

The Dacamp L1 bypasses the audio components of most devices, receives digital audio signals directly and converts them. Besides the compatibility with current OS systems of smartphones (Android 4.0+ with OTG, iOS), the Dacamp L1 can be easily integrated into Linux, Windows and Mac operating systems. Learn More .

For devices without a USB output as well as other DAC devices, the amplifier of the Dacamp L1 can be operated via a 3.5 mm input. For separate Hi-Fi components and consoles, the Dacamp supports the mini optical TOSLINK input.

Durable, Compact, Classic

Inspired by Hi-Fi

The Dacamp L1 is encased in machined aluminum and offers a high-quality design inspired by the home audio range, an intuitive user interface, and in-depth controls to prevent unintentional movement. The housing is made of extruded aluminum, creating a single, sturdy piece. The exterior is made entirely of metal and acts as an electromagnetic shield that protects against signal interference.

Hours of Playback

10 hours Battery Recharge Time and Charging Function

Thanks to its 4000 mAh lithium-ion battery, the Dacamp L1 can operate headphones from 12 to 600 ohms for up to 10 hours via the 3.5 mm headphone output and the 4-pin mini XLR connectors. When not in use, it can charge portable devices via a USB port.

High-resolution Digital to Analogue Processing

The Dacamp L1 is a portable headphone amplifier and DAC with dedicated processing circuits for each audio channel. It retrieves digital audio signals from smartphones, laptops, tablets and desktops, and uses premium DAC components to decode, convert and produce high-resolution, true-to-life analogue audio.

• Output Power (16Ω): 300mW
• Output power (300Ω): 28mW
• Output Impedance: 2.2 ohms
• THD + N: > 0.0018%
• Dynamic range: 111dB
• PCM sampling frequencies: 44.1 - 384kHz, 16/24/32-bit
• DSD sampling frequencies:
• 2.8224MHz (DSD64)
• 5.6448MHz (DSD128)
• 11.2896MHz (DSD256)
• Input connections: 3.5 mm input, USB-A, USB Micro-B, mini-TOSLINK optical
• Output connections: 3.5 mm output, 3.5 mm headphone output, 4-pin mini XLR (tuned)
• Battery: 4000 mAh

Packaging:

• Height: 200mm
• Width: 150mm
• Depth: 70mm
