Highend headphone amplifier
Ultimate highend headphone sound!

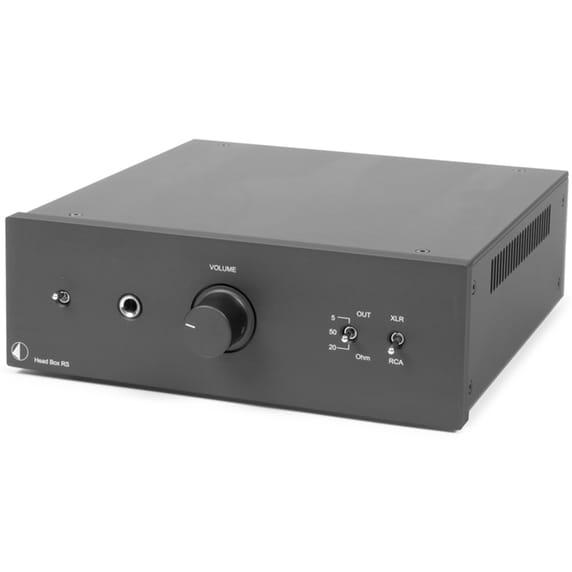

Head Box RS is a reference quality headphone amplifier with fully balanced tube input stage (double triode tube 6922) and single ended, class A „FET (Field Effect Transistor)" output stage. It offers balanced and unbalanced input as well as balanced and unbalanced bypass connectors for using the pass-through input signal with other components.
Volume control consists of a precise volume regulator with matched resistance between left and right channel.
A special output impedance selector allows to adjust output impedance in three steps 5, 20 and 50 ohm to achieve better impedance matching between amplifier and headphones. Some experiments with different positions of output impedance selector are highly recommended to get the ultimate sound experience for your headphone.
An advanced multi-stage power supply with four different output voltages is used to achieve the best possible S/N ratio for outstanding reproduction of detail, dynamics and imaging with any dynamic headphone!
Features:
- Fully balanced double mono design
- Tube input stage
- Class-A FET output stage
- Switchable output impedance for ultimate performance
- Superior low distortion
- Low noise components for ultimate dynamic & detail
- Output: 6.3mm socket
- Optional Upgrade: Linear power supply Power Box RS Uni 1 (or 4) for further improved sound quality
Specifications:
- Power output: 350 mW at 32 ohms / 60 mW at 300 ohms
- Crosstalk: - 58 dB
- Frequency response: 30 Hz - 20 kHz /(+0,2 dB; -0,05 dB)
- THD+N: 0.17% (XLR in, output impedance setting 5 ohm, load 32 ohm
- Gain: 9 dB
- S/N ratio: 99 dBA
- Headphone jack: 3-pole ¼" (6.3 mm ) co-axial jack
- Line-level input: 1 pair RCA + 1 pair XLR
- Line-level output: 1 pair RCA + 1 pair XLR
- Outboard power supply: 20 V/3 A DC, suitable for your country's mains supply
- Power consumption: 1,3 A DC
- Dimensions W x H x D: 206 x 72 x 200 (209) mm
- Weight: 2150 g without power supply
Product Details
- Pro-Ject PJ50438835
-
Brand New : Factory Sealed
- EAN : 9120050438835
- EFLC : 9800
- Write a review
Warranty
One Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Pro-Ject Authorized
Returns
Easy Returns
- 30-day return window on eligible items
- Full refund issued in accordance with our return policy
