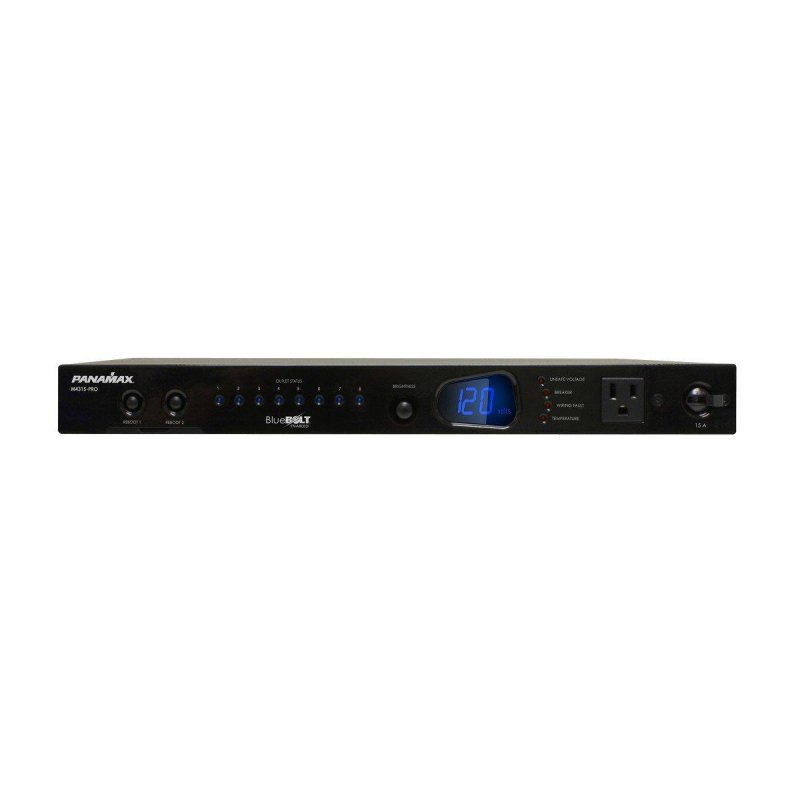

Advanced 15 amp power controller with top of the line Linear Noise Filtration, Automatic Voltage Monitoring and catastrophic surge protection.
The M4315-PRO features Panamax's revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Panamax: uncompromised AC protection and purification. Outlets: all eight (8) rear panel outlets are separately controlled. They are grouped into four (4) filter-isolated banks. BlueBOLT™ is included, providing secure, hosted IP system control and monitoring for the M4315-PRO.
1 RU 15 AMP 8 BlueBOLT Programmable Outlets w/Auto Reset, 10Ft IEC Cord
Features:
Panamax M4315-PRO Features at a Glance:
Power Management with Control System Interactive Functionality.
- 15 Amp Capacity M4315-PRO
- 8 Individually Controllable Rear Panel Outlets
- Fully Programmable
- TCP/IP (BlueBOLT™) Installed
- RS-232 Card (Included, not installed)
- Linear Filtration with 3 Isolated LiFT Filter Banks, 76db (5 kHz - 250 kHz), 46 db (250 kHz - 1 MHz)
- One Isolated Filter Bank for High Current Devices, 60db (5 kHz - 450 kHz), 46 db (450 kHz - 1 MHz)
- Front Panel Circuit Breaker
- Removable Front Rack Ears
- 12 Volt Input Triggering
- Detachable 10 ft. Power Cord
- AVM & Protect-or-Disconnect Circuitry
Speicifications:
General:
- Family: Pro Series
- Line Voltage: 120 (Volts)
- Number of Outlets: 9
- Number of Isolated Banks: 4
- Outlet Descriptions:
- 1 (always on, linearly filtered outlet, front panel)
- 6 (individually switchable, linearly filtered outlets)
- 2 (individually switchable, high current outlets)
- Rack Mountable: Yes
- Rack Ears Included: Yes
- Front Panel Meter(s): Volts/Amps Combo Meter
- Front Media Light(s): No
- Control: Full outlet control using BlueBOLT or Telnet commands. Limited outlet control through front panel buttons or rear panel DC trigger.
- Voltage Regulation: No
- Compliance: cCSAus
- Low Voltage Trigger: 12V In
- AC Power Cord: 10 ft. detachable
- Dimensions: 19" W (17" without rack ears) x 12.25" D x 1.75" H
- Weight: 12 lbs
AC Protection:
- AC Protection Technology:
- Protect or Disconnect
- Automatic Voltage Monitoring
- L-N, L-G, N-G Protection Modes
- Thermal Fusing
- Under-Voltage Shutoff: 100 VAC ± 2 VAC
- Over-Voltage Shutoff: 134 VAC ± 2 VAC
- Maximum Current Rating: 15 (Amps)
- Initial Clamping Level: 200V Peak
Filtration:
- Filtration Technology: LiFT
- Filtration Rating:
- Banks 1, 2, 3: 76db, 5KHz - 250 kHz
- Bank 4 High Current Outlets: 46 db, 250 KHz - 1 Mhz
- Signal Line Protection:
- 1 LAN
- 1 Tel
- 2 Cable/Satellite
Other:
- Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
- Single Pulse Energy Dissipation: 2700 Joules
- Peak Impulse Current: 135,000 Amps
- LAN - Wires Protected: 8-Wires
- LAN - Compatibility: 10/100/1000 BASE-T
- LAN - Clamping Level: 60 ± 5V
- Coax - Shielded: Yes
- Coax - Insertion Loss: < 0.5 dB
- Coax - HD 1080 i/p Ready: Yes
- Coax - Frequency Range: 0 MHz - 2.2 GHz
- Coax - Connections: Female "F", Gold Plated
- Coax - Clamping Level: 75V
- Coax - Bidirectional: Yes
