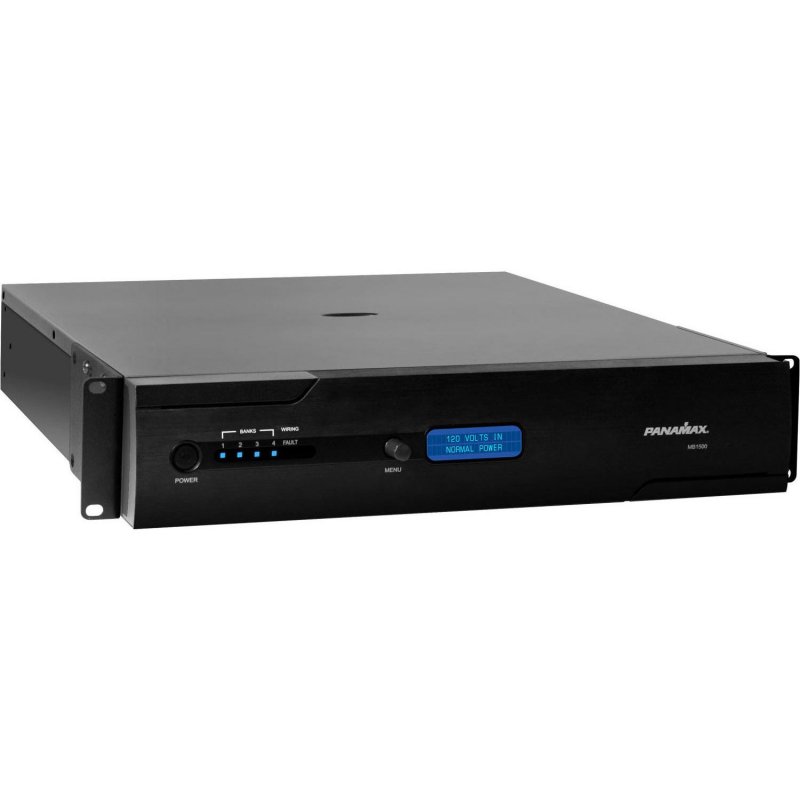

1500VA, Fully Programmable, Uninterruptible Power Supply, Voltage Regulator & Power Conditioner
Combines Power Management, Voltage Regulation, and Surge Protection with AVM and Battery Backup to provide the complete solution.
MB1500 prevents critical equipment from losing setup configuration, stored data and hard-disk crashes. Shuts off projection equipment via IR control to allow the projector bulbs to go through a proper cool-down cycle before shutting off.
Features:
- 1500 VA Rated Battery Backup
- True Sine Wave Output
- AVM Automatic Voltage Monitoring
- LiFT Linear Filtering Technology Noise Filtration
- Protect or Disconnect Voltage Protection
- Voltage Regulation
- Dual Learning IR Output Controls
- USB Interface
- RS-232 with Open Source Protocol
- Fully Programmable
- Four Programmable Critical Load Management AC Outlet Groups
Specifications:
General:
- Family: Rack Mount
- Line Voltage: 120 (Volts)
- BlueBOLT Enabled: Yes
- Number of Outlets: 8
- Number of Isolated Banks: 2
- Outlet Descriptions: All 8 outlets surge protected, linearly filtered, and backud up
- Rack Mountable: Yes
- Rack Ears Included: Yes
- Front Panel Meter(s): LCD Displays status and menu navigation items
- Front Media Light(s): No
- Control: Remote control through RS-232 interface card or via internet with BlueBOLT-CV1 card
- AC Power Cord: Heavy duty captive power cord
- Dimensions: 17" W (19" w/ rack ears) x 19.2" D x 3.5" H (4" tall with feet installed)
- Weight: 72 lbs.
Battery Backup:
- Input Frequency: 47 - 63 Hz
- Regulation Capture Range: 96 - 135V (Sensitive Mode), 93 - 142V (Standard Mode)
- Output Frequency: 60 Hz ± 1%
- UPS Output Capacity: 1500VA, 900W @ 0.6pf
- Regulation Output Range: 120V ± 5% (Sensitive Mode) 120V ± 10% (Standard Mode)
- UPS Backup Time (Full Load): 12 minutes
- UPS Backup Time (Half Load): 32 minutes
- Transfer Time: < 4ms
AC Protection:
- AC Protection Technology: Non-sacrificial SMP (Series Multi-Stage Protection)
- Automatic Voltage Shutoff: Yes
- Over-Voltage Shutoff: 150V ± 5V (fast rise) 140 ± 5V (slow rise)
- Maximum Current Rating: 12 (Amps)
Filtration:
- Filtration Technology: Linear Filtering Technology (LiFT)
- Filtration Rating: 10 dB @ 10kHz, 40 dB @ 100 kHz, 50 dB @ 500kHz
Product Details
- Panamax MB1500
-
Brand New : Factory Sealed
- UPC : 050616008525
- EFLC : 8097
