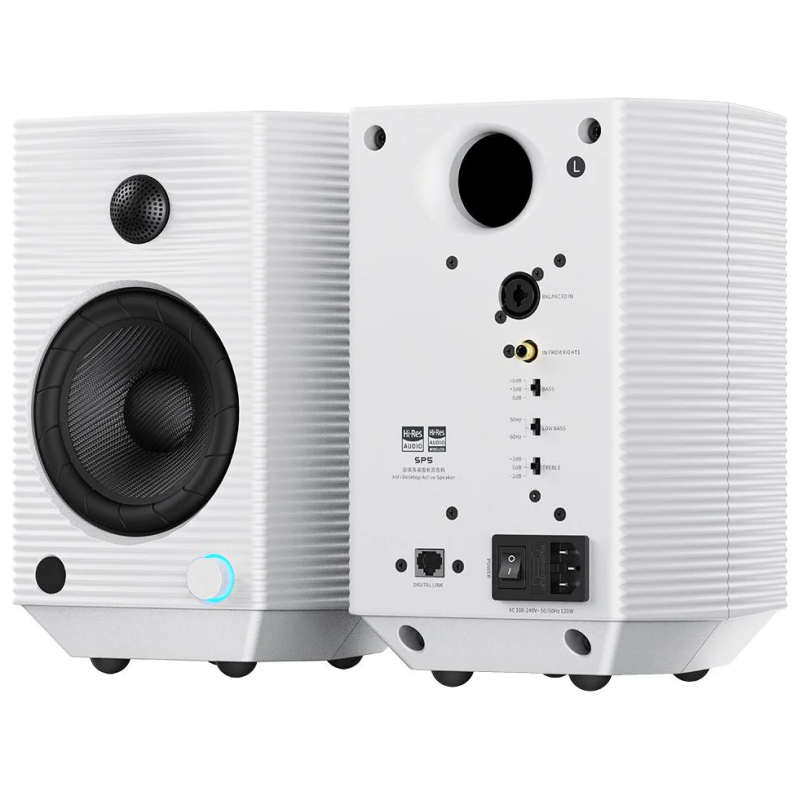

FiiO SP5 Active Desktop Speakers

The FiiO SP5 is a high-fidelity active desktop speaker system engineered for powerful, precise and versatile performance. Featuring a 5.25-inch composite fiber woofer and a 1-inch composite silk soft dome tweeter, the SP5 delivers deep bass, clear mids and refined treble within a rigid die-cast aluminum cabinet.

Each speaker is powered by an independent 120W supply and a four-way amplification design (60W×2 for woofers, 20W×2 for tweeters). With balanced XLR input, high-resolution Bluetooth support and advanced DSP features including 10-band PEQ, the SP5 integrates seamlessly into desktop, studio or living room setups.

Features

• 5.25-inch composite fiber woofer (6Ω)
• 1-inch composite silk soft dome tweeter (8Ω)
• Four-way independent amplification: 60W×2 (woofers) + 20W×2 (tweeters)
• Independent 120W power supply for each speaker
• Dual ES9068AS DAC chips (left/right independent)
• Texas Instruments TPA3116D2 Class D amplifiers
• XLR balanced input (supports XLR3 and TRS 6.35)
• RCA, AUX, USB and Bluetooth inputs
• Qualcomm QCC5125 Bluetooth 5.1 chipset
• Supports SBC, AAC, aptX, aptX LL, aptX HD, LDAC, aptX Adaptive
• Low-noise NJW1195A electronic volume control
• Ten-band PEQ via FIIO Control app
• Two-stage bass and treble adjustment
• 50Hz / 60Hz low-frequency extension adjustment
• Die-cast liquid aluminum cabinet (650℃ process)
• Includes two Furukawa oxygen-free copper AC power cables

Specifications

General

• Model: SP5
• Product type: Active desktop speakers
• Color: Black / White
• Max SPL: 104 dB
• Cabinet material: Die-cast liquid aluminum alloy

Drivers

• Woofer: 5.25-inch (6Ω), composite carbon fiber cone
• Tweeter: 1-inch (8Ω), composite silk soft dome
• Crossover: Active electronic two-way, 3.1 kHz crossover frequency

Frequency Response

• 65 Hz – 20 kHz (standard mode)
• 50 Hz – 20 kHz (low-frequency boost + extension enabled)

Amplification

• Woofer output power: 60W × 2
• Tweeter output power: 20W × 2
• Total independent amplification: 120W per speaker

Adjustments

• Treble adjustment: -2 dB / 0 dB / +2 dB
• Bass adjustment: 0 dB / +3 dB / +6 dB
• Low-frequency extension: 50 Hz / 60 Hz selectable

Bluetooth

• Chipset: Qualcomm QCC5125
• Bluetooth version: 5.1
• Supported codecs: SBC, AAC, aptX, aptX LL, aptX HD, LDAC, aptX Adaptive

Inputs

• XLR balanced input
• RCA input
• AUX input
• USB input (up to 96 kHz / 24-bit)
• Bluetooth input

Dimensions & Weight

• Main speaker: approx. 170 × 185 × 280 mm (W × D × H, including feet)
• Secondary speaker: approx. 170 × 185 × 280 mm (W × D × H, including feet)
• Main speaker weight: approx. 6.01 kg
• Secondary speaker weight: approx. 5.94 kg
• Total packaged weight: approx. 15 kg

What’s in the Box

• FiiO SP5 Main Speaker
• FiiO SP5 Secondary Speaker
• 2 × Furukawa oxygen-free copper AC power cables
• Speaker connection cable
• User documentation
