The ultimate 4K experience for the professionally installed home theater.

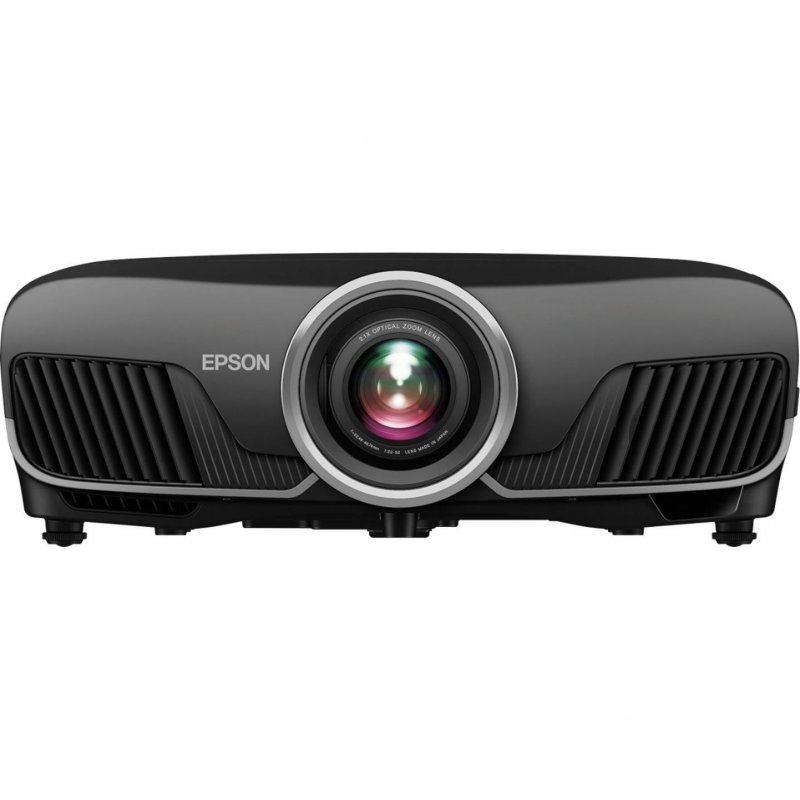

The Epson® Pro Cinema 6050UB 4K PRO-UHD projector represents our most advanced 4K home theater experience to date. Capable of displaying an astonishing 2,600 lumens for both color and white brightness3 - along with proprietary processors for resolution enhancement, color and image processing - the Pro Cinema 6050UB produces incredible brightness, color accuracy and image detail to faithfully display all your favorite content the way it was meant to be seen. If you're looking for a 4K home theater experience to exceed your expectations - look no further. Now that's Projection Perfected.

4K PRO-UHD Projection Technology

A new type of 4K home theater experience that utilizes advanced processing technologies for resolution enhancement, color and image processing - resulting in an exceptional 4K home theater experience.

True 3-Chip Projector Design

Advanced 3LCD technology displays 100% of the RGB color signal for every frame. This allows for an outstanding color gamut while maintaining excellent brightness, without any "rainbowing" or "color brightness" issues some may see with other projector technologies.

Unique S2 Pixel-Shift Processor

Advanced pixel-shifting processor precisely controls three high-definition LCD chips to parallel process millions of pixels of information. This new type of resolution enhancement technology1 results in an exceptionally sharp 4K visual experience.

Precise H2 HDR Processor

Full 10-bit HDR color processing accepting 100% of the HDR source information to faithfully reproduce HDR content for an exceptional visual performance.

Powerful ZX Digital Imaging Processor

Realtime 12-bit analog-to-digital video processing for smooth tonal transitions, while helping to eliminate banding, blocking and other compression artifacts from the final visual performance. This powerful processor faithfully reproduces the source material the way it was intended to be shown.

Outstanding Brightness

Capable of displaying 4K content at an incredible 2,600 lumens for both color and white brightness. This not only provides for a wider performance envelope but allows for an exceptional HDR performance.

• Epson UltraBlack™ Technology - Epson created a Proprietary Compensation Filter designed to control the polarization of light itself. This allows Epson to suppress any stray light within the signal, producing an outstanding Dynamic Contrast ratio of 1,200,000:1.
• Precision HDR Adjustment - Realtime HDR curve adjustment allowing for 16-steps of control to fine-tune the HDR performance regardless of the content.
• Extreme Color Gamut - One of the first commercially available home theater projectors capable of displaying the full three-dimensional DCI-P34 color space. This extreme color performance is 50% wider than typical Rec. 709 projectors and allows for a truly professional-level of color accuracy.
• Epson VRX Lens Technology - Designed for zero-light-leakage, all Epson VRX Lenses utilize a proprietary 15-element precision glass structure for outstanding image clarity and edge-to-edge focus uniformity.

Eco Features:

• RoHS compliant
• Recyclable product
• Epson America, Inc. is a SmartWay™ Transport Partner

Specifications:

Projector:

• Projection System: Epson 3LCD, 3-chip technology
• Projection Method: Front/rear/ceiling mount
• Driving Method: Poly-silicon TFT Active Matrix, 0.74"-wide panel
• Color Brightness - Color Light Output: 2600 lumens
• White Brightness - White Light Output: 2600 lumens
• Aspect Ratio:
  • Native 16:9 widescreen (4:3 resize,16:10 resize)
  • Compatible with 4:3 with Normal, Full or Zoom Modes (Anamorphic Wide and Horizontal Squeeze require an Anamorphic Lens Kit, sold separately)
• Resolution: 4K Enhancement1 (1920 x 1080 x 2)
• Maximum Resolution: 4096 x 2160
• Supported Resolution: 3840 x 2160, Full HD 1080p/i, HD 720p, 576p/i, 480p/i
• Lamp Life:
  • ECO mode: Up to 5000 hours
  • Medium mode: Up to 4000 hours
  • High Mode: Up to 3,500 hours
• Throw Ratio Range: 1.35 - 2.84
• Size - projected distance: 50" - 300"
• Keystone Correction: Vertical: ±30 degrees (Manual)
• Contrast Ratio: Up to 1,200,000:1, Auto Iris on
• White Balance: 8-point adjustment
• Color Processing: Full 10-bit (partial 12-bit)
• Color Reproduction: Full-color (up to 1.07 billion colors)

General:

• Operating Temperature: 41º to 95ºF (5º to 35ºC)
• Weight: 24.7 lb
• Security: Kensington security lock port

Projection Lens:

• Type: Powered focus/optical zoom/lens position
• F-number: 2.0 - 3.0
• Zoom Ratio: 1 - 2.1
• Lens Shift:
  • Vertical: ±96.3
  • Horizontal: ±47.1
• Lens Cover: Powered, Slide Lens Shutter

Other Home Projector:

• Cinema Filter:
  • Automatically adjusts to color mode
  • On: Cinema, Digital Cinema
  • Off: Natural, Black & White Cinema, Bright Cinema, Dynamic, 3D Dynamic, 3D Cinema
• Auto Iris:
  • Automatically adjusts to video source
  • Off/On: High-speed or Normal, 2D and 3D mode
• Super Resolution: 2D and 3D
• Computer Compatibility: PC, Mac®

Parental Controls:

• Power Button Lock: Power Button Lock hinders projector from being turned on without parental supervision

Projector Details:

• Display Performance:4K/UHD @ 60 Hz compatible, HDR102, 3-dimensional DCI-P3 color gamut4, 4Ke1, 1080p; HD,2D, 3D
• Color Modes:
  • 2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, Black & White Cinema
  • 3D: Dynamic, Cinema
• Input Signal: 480i , 576i, 480p, 576p, 720p, 1080i, 1080p, 4K x 2K HDMI: TMDS
• Interfaces:
  • 2x HDMI (HDCP 2.2)
  • 1x USB Type A (for optical HDMI cable 300 mA max.
  • power supply only)
  • 1x USB (for wireless and firmware)
  • 1x Mini USB (service only)
  • 1x LAN (RJ45)
  • 1x Computer/D-sub 15-pin
  • 1x RS-232c
  • Trigger out (On, Off, Anamorphic Wide)
  • 12 V DC, 200 mA maximum
• Fan Noise:20 dB - 31 dB

Projector Dimensions:

• Including feet: 20.5" x 17.7" x 7.6" (W x D x H)

Remote Control:

• Features:Front and rear directional
• Operating Distance:32 feet (10 meters)

Power:

• Power Supply Voltage: 100-240 VAC ± 10%, 50/60 Hz
• Power Consumption: Normal Mode: 373 W; ECO Mode: 283 W

What's In The Box:

• Pro Cinema PC 6050UB projector
• Ceiling mount
• Cable cover
• Spare lamp
• Power cord
• Two HDMI cable clamps
• Remote control with AA batteries
• CD-ROM with user guide link
• Quick Setup Guide
