Modest size, monumental performance

A deceptively thin and discreet floorstanding speaker, the Imagine X1T has wide bandwidth and high SPL output capabilities that defy its small size. A seamless blend of design and performance, the X1T is able to meet the demands of your multi-channel setup. Capable, energetic and attractively priced, these speakers pack a mighty punch.

Size-defying power

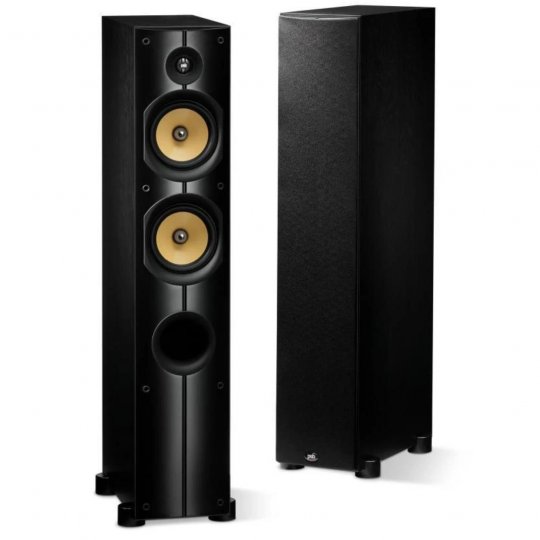

The Imagine X1T Tower is a dual-woofer transitional two-and-a-half way speaker with identical 5¼" (133mm) woofers that work together at the lowest frequencies but crossover at different frequencies to integrate better with room acoustics and give the best dispersion and power response. Imagine X models are all carefully matched in timbre, giving you the freedom to combine any of the models to work together in a variety of different rooms and system setups.

Dynamic accuracy

Like all woofers in the Imagine range, the cone materials have been carefully engineered for optimal control, allowing for a simpler, more cost effective crossover design. Tonal, spatial and dynamic accuracy are at the forefront of this speakers design which includes the Imagine one-inch titanium dome tweeter. The X1T fills the room with a refined mix of high and low frequencies that blend beautifully together.

Bring your space to life

Placement throughout the home is effortless thanks to the smart, minimalist design of these speakers and their small footprint. As the smallest floorstanders in the Imagine line up, the X1T’s can be easily incorporated into your space. Their modest size combined with a handsome cabinet design will suit any room and compliment many different system setups without any added clutter.

Features:

• 200 watts input power
• 1" (25mm) titanium dome with ferrofluid neodymium magnet
• 2 x 5¼" (133mm) clay/ceramic reinforced injection molded polypropylene cone woofers
• Bass reflex (ported) design
• Two sets of gold-plated five way binding posts can be bi-wired or bi-amped
• Black ash vinyl finish

Specifications:

Frequency Response:

• On Axis @ 0° ±3dB: 35-23,000Hz
• On Axis @ 0° ±1 1/2dB: 48-20,000Hz
• Off Axis @ 30° ±1 1/2dB: 48-10,000Hz
• LF Cutoff -10dB: 30Hz

Sensitivity:

• Anechoic Chamber: 88dB
• Listening Room: 90dB

Impedance:

• Nominal: 8 Ohms
• Minimum: 4 Ohms

Input Power:

• Recommended: 20 - 200 Watts
• Program: 200 Watts

Acoustic Design:

• Tweeter (Nominal): 1" (25mm) Titanium Dome with Ferrofluid, Neodymium Magnet
• Woofer (Nominal):
• 2 x 5 1/4" (133mm) Injection Moulded Clay/Ceramic reinforced
• Polypropylene Cone
• Rubber Surround / Dual Magnet
• Crossover: 1,800Hz, LR4, 800Hz
• Internal Volume: 1.42 cu ft (40.2L)
• Design Type: Bass Reflex Front Port

Dimensions / Weights / Finish:

• Size (W x H x D): 8 1/4 x 34 1/2 x 15 5/8" *, 208 x 874 x 395mm
• Weight: Net - 38lb (17.3kg)/
• Finish: Black Ash
