Get the whole picture with 4K

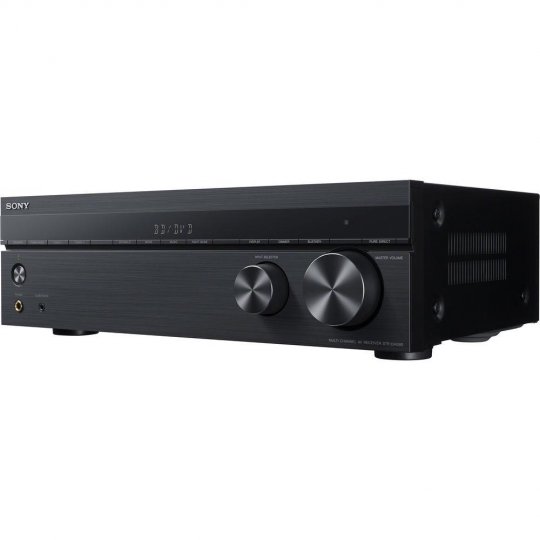

Experience the bigger, clearer picture when you upgrade your home cinema setup with the STR-DH590. The 5.2ch
AV receiver brings movies to life with 4K HDR pass through, Dolby Vision™ and flexible surround sound. Bring all
your entertainment together with BLUETOOTH® technology and multiple inputs.
See clearly with High Dynamic Range
With support for High Dynamic Range (HDR) signal pass-through, you can enjoy the incredible jump in image
contrast and brightness it brings-and the additional shadow detail and highlights further enhance picture detail
and brings colours to life. Latest HDR standards such as HDR10, HLG (Hybrid Log-Gamma) and Dolby Vision™ are
supported.
Enjoy consistent 4K quality
Maintain 4K quality from source to screen. 4K passthrough allows a signal to pass through the receiver without
compromising image quality and is HDCP 2.2 compatible.
Flexible surround sound

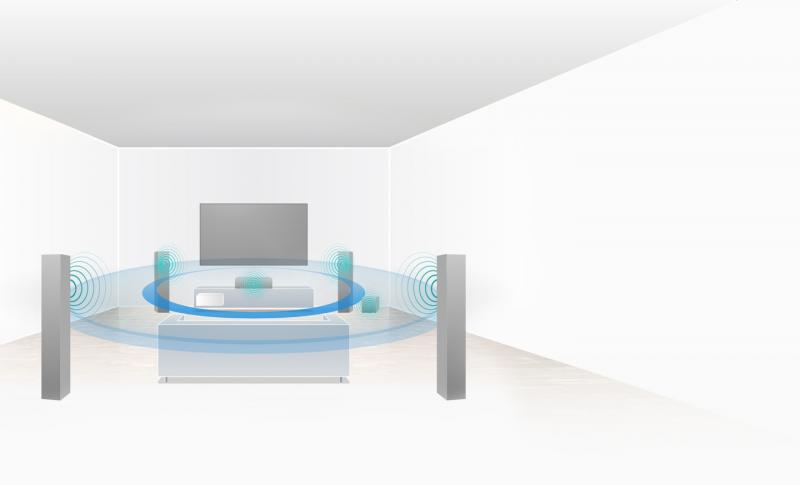

5.1 ch surround for cinematic sound
Immerse yourself in movie action with a 5.1 channel surround speaker system that brings cinema home.

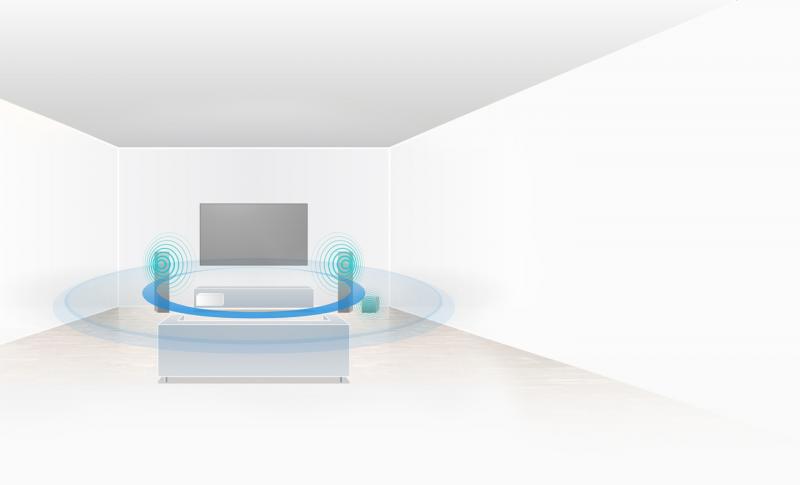

Easy, virtual surround with S-Force PRO Front Surround
Ideal for smaller rooms, S-Force PRO Front Surround delivers a virtual surround acoustic field using only two speakers.

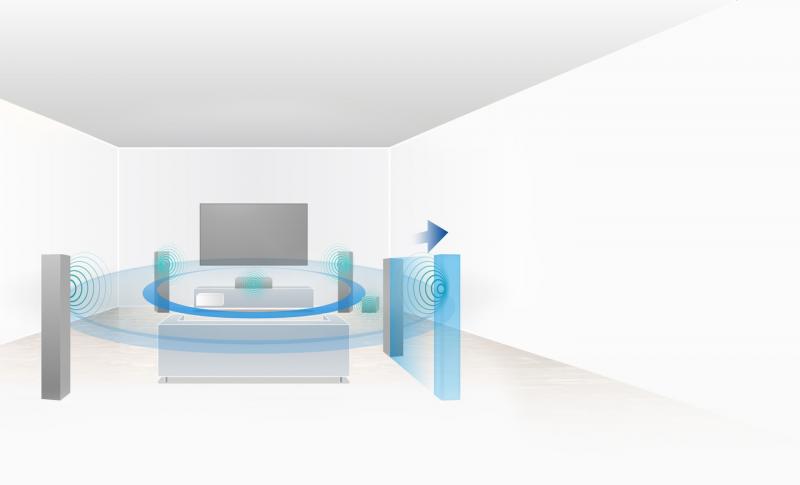

Optimise home entertainment with Digital Cinema Auto Calibration
Digital Cinema Auto Calibration (DCAC) automatically optimises sound based on where you sit in relation to your
speakers, to help give you the best from your home cinema system.

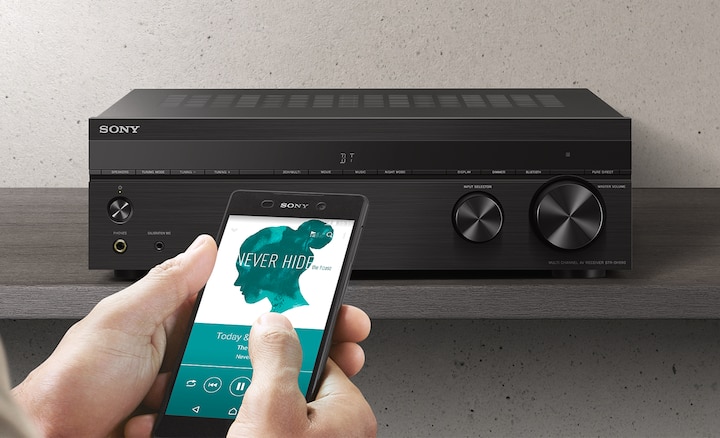

Smarter Bluetooth® connectivity
Not only can you connect to the STR-DH590 through Bluetooth® and play all your favourite tracks, but with
Bluetooth® Standby, you can turn your receiver on straight from your paired smartphone or tablet.
Connect everything

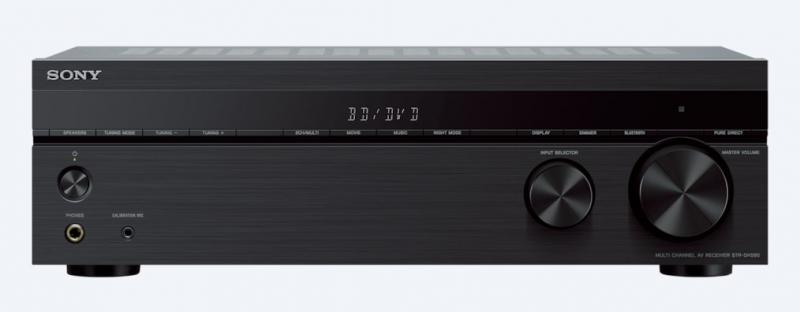

Clean design, smooth connection, clear sound
A minimal front includes the Pure Direct button which feeds sound directly to the receiver's amplifier,
preserving signal and clarity.

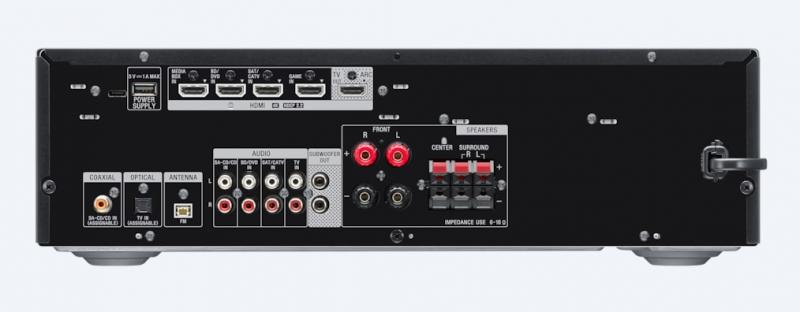

Bring it all together

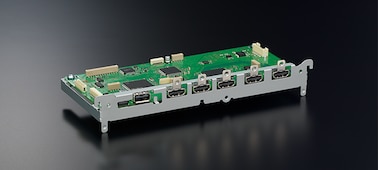

A truly dynamic home entertainment setup. There are four HDMI inputs and one output, plus optical/coaxial
digital and analogue audio connections so that you can connect your TV, UHD Blu-ray Disc™ player, games console
and more, quickly and easily.

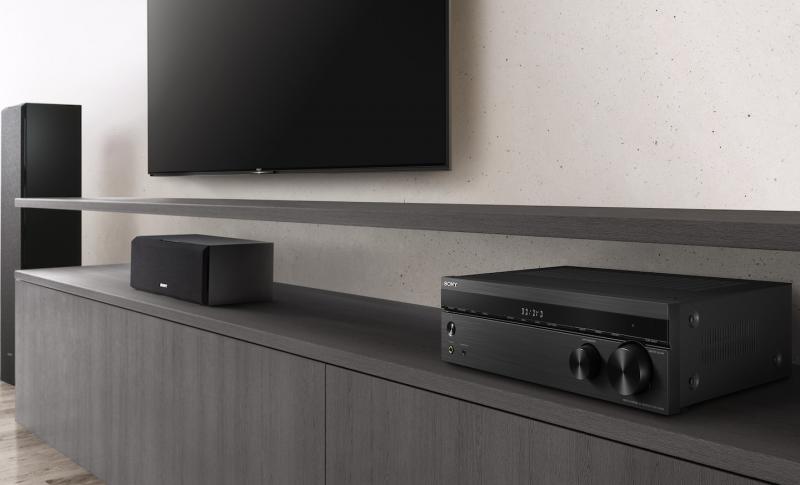

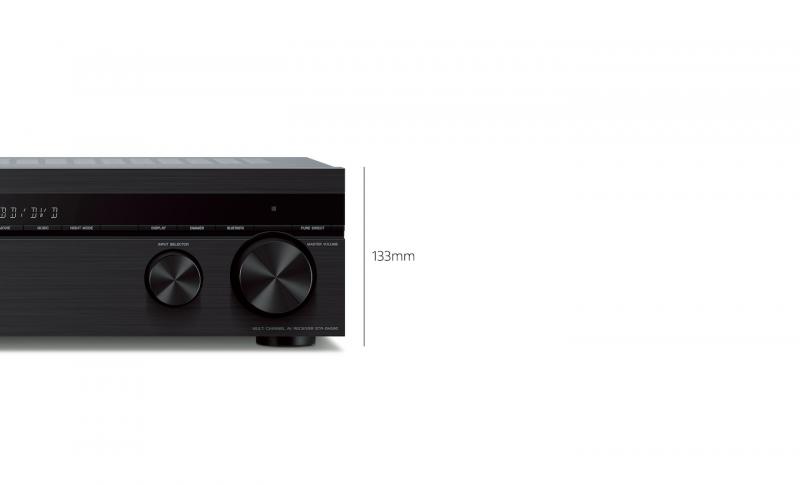

Made to fit your home entertainment
Get the world of home cinema packed neatly into a small casing. The STR-H590 has a compact profile for easy storage
in a media unit. Plug in your existing equipment with no hassle for maximum entertainment.
Features:

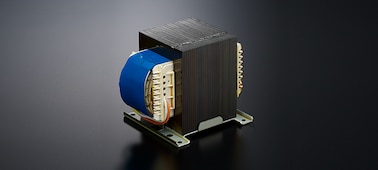

Large capacity power transformer built for clarity:
Care and attention to the highest quality audio starts with the power transformer.
Constructed For Precision:
A reinforced frame and beam chassis design reduces external speaker sound pressure for more focused,
powerful sound.
Power Amplifier For Minimal Distortion:
The power amplifier uses a glass-epoxy circuit board for reduced vibration and distortion, giving clear,
high power from each of the discrete amplifiers.
DSD decoding:
Co-developed for High-Resolution Audio by Sony and Philips, the companies behind the original CD format,
DSD offers a revolutionary way of capturing and playing back audio. Its sampling frequency is 64-times
that of CD.

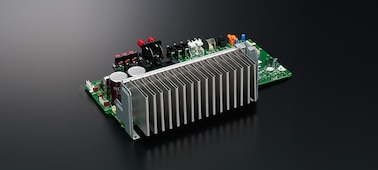

Expertly Designed To Prevent Overheating:
The heat sink is specially designed to maximise air intake, keeping the amplifier circuit cool to reduce
distortion and increase reliability.
A Metal Framework Protects The Circuits:
The metal framework and heat sink bracket shields the circuits from sound pressure and radiation, for high-rigidity
and clearer sound quality.
FM tuner with presets:
An FM tuner with 30 digital presets. Station names, auto tuning and direct tuning are available.
The Way The Artists Truly Intended:
Enjoy the subtlest nuances of studio-quality sound in higher-than-CD quality with High-Resolution Audio. Passion
for music unites every component from signal to speaker, so it feels like the artist is performing right in front of
you.
Specifications:
Amplifier:
- Number Of Amp. Channels: 5
- Number Of Decodable Channels: 5.1 ch
- Power Output: 145w (6ohms, 1khz, 1ch Thd 0.9 %)
- Speaker Impedance: 6 - 16 Ohms
- Sound Field: 2ch Stereo,Direct,Multi Ch Stereo,Dolby Surround,Neural: X,Front Surround,Audio Enhancer,Headphone 2ch
Video Features:
- HDR (High Dynamic Range): Yes (HDR10, HLG, Dolby Vision™ Compatible)
- Audio Return Channel: Yes
- HDMI® Pass Through: Yes
- 3d Over HDMI: Yes
- 4k 60p 4:4:4 Support: Yes
- A/V Sync: Yes (Fixed)
- Bravia® Sync™ (CEC Control): Yes
Audio Features:
Auto Speaker Calibration:
- Calibration Features: Advanced D.C.A.C., Automatic Phase Matching, Calibration Mic (Mono)
Auto Speaker Calibration:
- Calibration Features: D.C.A.C., Calibration Mic (Mono)
Tuner Features:
- FM/AM: Yes / No
- Preset Channel (FM/AM): TTL30 (30 / -)
- RDS: Yes
Interface:
- HDMI Supporting HDCP 2.2 In/Out: 4 / 1
- Input And Output Terminals: Audio Input Opt (1), Audio Input Coax (1), Analog Audio Input (4), Pre Out Subwoofer (2), Headphone Output (1),
USB (For power supply only)
- Speaker Output Terminals: Front,Center,Surround,Surround
Decoding Format for HDMI:
- DSD, Dolby® Digital, Dolby® Dual Mono, DTS-HD Master Audio™, DTS-HD High Resolution Audio, DTS®, DTS 96 / 24
Network Connectivity:
- Network Features: Bluetooth® Receiver
General Features:
- Auto Standby: Yes
- Gui (Graphical User Interface): Yes
- Power Requirement: AC 120V 60Hz, AC 230V 50Hz
Size & Weight:
- Dimensions (W X H X D MM): 430 x 133 x 297 mm
- Weight (Kg): 7.1kg
