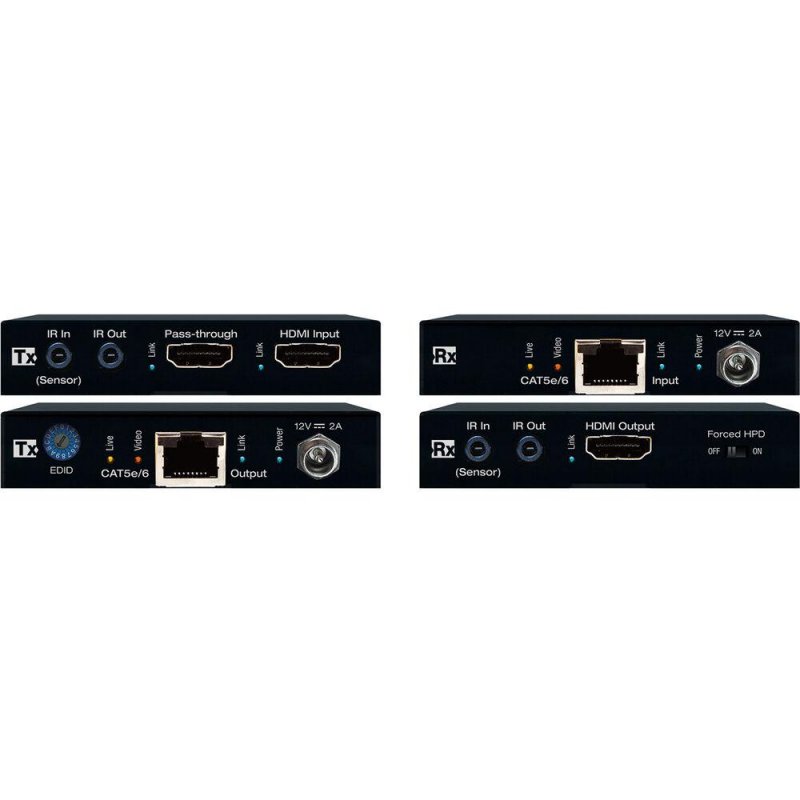

Key Digital KDEX18G 4K HDR HDMI Extender Transmitter and Receiver Kit
Brand New · Factory Sealed · Key Digital Authorized Dealer
$339.99
Free Canada-wide Shipping
•
Order Now : Ships Mon
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Low Stock : Order Soon
- Free shipping
- 1yr Manufacturer Warranty
- Pickup available: Richmond Hill, ON
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Features:
- UHDoTP via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length
- 4K Resolution Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate UHDoTP transmission channel
- 4K to 1080p Down Convert: Optional resolution conversion applied at UHDoTP output provides added integration options in retrofit installations as well as added distance performance
- 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
- Flexible Power over CAT (PoC): Only one power connection needed. Tx may power Rx, or Rx may power Tx.
- Low Profile: Slim chassis design
- Signal Extension: For resolution and cable quality
- 4K/UHD: Up to 35m (115ft) using CAT5e/6
- 1080p: Up to 50m (164ft) maximum
- Minimum: 5m (17ft) CAT5e/6 cable length required for all resolutions
- HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
- HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:2:2/8 bit
- EDID Control: Internal library with 15 EDID handshakes including 4K with HDR in addition to native EDID data from Output/Display device connected to Rx
- Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected display/output device
- Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID handshake control, and Hot Plug Detection control
- IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
- Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
- HDMI Pass-Through: Enables connection to local monitor or AV Receiver.
- Surround Audio Support: On HDMI pass-thru and UHDoTP outputs:
- HDMI Pass-Thru: Supports Dolby®, Dolby® TrueHD, DTS ™ and DTS-HD ™ (formats up to 7.1)
- UHDoTP Output: Supports Dolby®, DTS ™ (formats up to 5.1/6.1)
Specifications:
Technical:
- Inputs Tx (Each): 1 HDMI, 1 IR
- Outputs Tx (Each): 1 UHDoTP, 1 IR
- Inputs Rx (Each): 1 UHDoTP, 1 IR
- Outputs Rx (Each): 1 HDMI, 1 IR
- Bandwidth: TMDS bandwidth 18Gbps
- Deep Color Support: Digital video formats in Deep Color Mode up to 12 bits per color
- DDC Communication: EDID and HDCP Bi-directional buffering from Display to Source
- HDMI Connector: Type A, 19 Pin Female
- RJ45 Connector: Shielded Link Connector, UHDoTP
- IR In & Out Connectors (Each): 3.5mm
- Power: (1) 12V/2A, 24W DC Power Supply (Screw-In Type). 100-240VAC, 50-60Hz. Interchangeable transformer plug with screw-in connector. SKU: KD-PS12V2ASC
General:
- Regulation: CE, RoHS, WEEE, EAC
- Enclosure: Black Metal
- Product (Each): 4.1" x 2.8" x 0.875"
- Weight: 0.75 lbs
What's in the box:
- 4x Mounting Brackets
- 1x IR Emitter
- 1x IR Sensor
- 1x Power Supply
