Take Classic proves that convenience doesn't have to mean compromise. Sure, you can shop for individual home theater components-but you won't get better performance, or better looks. Integrating the best technologies Energy has to offer, the Take Classic can fill your room with hair-rising effects and theater-like sound: hyperbolic aluminum dome tweeters for screaming highs, Convergent Source Modules for clear, crisp dialogue and music and a Ribbed Elliptical Surround on the subwoofer that makes every explosion a room shaking affair. In addition, integrated keyhole wall-mounts, threaded inserts and rubber bumpers let you choose how and where to place your speakers.

Bragging Rights
Energy has been a leader in audio research and development as well as in the engineering and manufacturing of speakers since 1973. With this pedigree Take Classic components were developed with Energy's core principles in mind. These include:

Flat On-Axis Frequency Response with Wide Bandwidth - Speakers should reproduce the entire audio range in a uniform manner. By ensuring that no one frequency dominates any other, Energy ensures that every note is the way it was intended to be-and the sound as natural as possible.

Wide and Constant Dispersion - Sound at all frequencies radiating from the speaker should be in an even pattern, in all directions throughout the room.

Low Distortion and Resonance - Speaker system is distortion- or resonance-free, but Energy has achieved a significantly lower distortion level, a clearly audible improvement.

The Take Classic 5.1 home theater system also offers terrific performance and great features:

• Our patented Convergent Source Module (CSM) 3-inch poly-titanium woofer and .75-inch hyperbolic aluminum-dome tweeter -the heart of Energy speakers
• Patented Ribbed Elliptical Surround woofers create high efficiency, low distortion
• An aluminum dome tweeter for sonic accuracy
• Front and rear venting for more powerful bass response

Take Classic raises the bar for 5.1 speaker system performance. It includes a powerful 200-watt subwoofer with a front-firing port, 8-inch driver and Ribbed Elliptical Surround™ for bass that you feel as much as hear. The Convergent Source Module (CSM), with its 3-inch poly-titanium woofer and .75-inch hyperbolic aluminum-dome tweeter, focuses sound for clearer dialogue and stirring music. The CSM gives soundtracks a dynamic frequency range and a huge soundstage, for smooth, realistic sound from each satellite speaker and the center channel. Music and movie lovers rejoice. Take Classic puts the passion back into your favorite films.

Exclusive Energy® Brand Technologies

Convergent Source Module
The Convergent Source Module, or CSM, provides wide dispersion, low distortion and amazing midrange performance. The speaker's midrange and tweeter are positioned in close proximity to one another and act as a single source, thereby increasing overall dispersion and reducing any lobing effect. The chambering of the mid and tweeter lowers the driver's resonance, reducing distortion.

Ribbed Elliptical Surround Technology
Energy's patented Ribbed Elliptical Surround technology (U.S. patent #6,725,967, Canadian patent #2,407,123) increases excursion, eliminates distortion and raises efficiency on woofers and subwoofers. The Elliptical Surround encompasses the cone, allowing it to move identically in both directions, resulting in near zero distortion. And while conventional designs are often plagued with surround dimpling, which causes them to radiate in and out of phase and distort at all listening levels, Energy's designs aren't influenced by dimpling at all, instead proprietary Ribbed Elliptical Surround technology allows for a larger cone surface, resulting in greater efficiency. This design also lets the cone achieve greater peak to peak movement, thus allowing it to travel more than double the distance of the competition. These attributes enable Energy woofers and subwoofers to move incredible amounts of air, ultimately allowing them to play lower frequencies with greater bass extension and fidelity.

What's in the Box

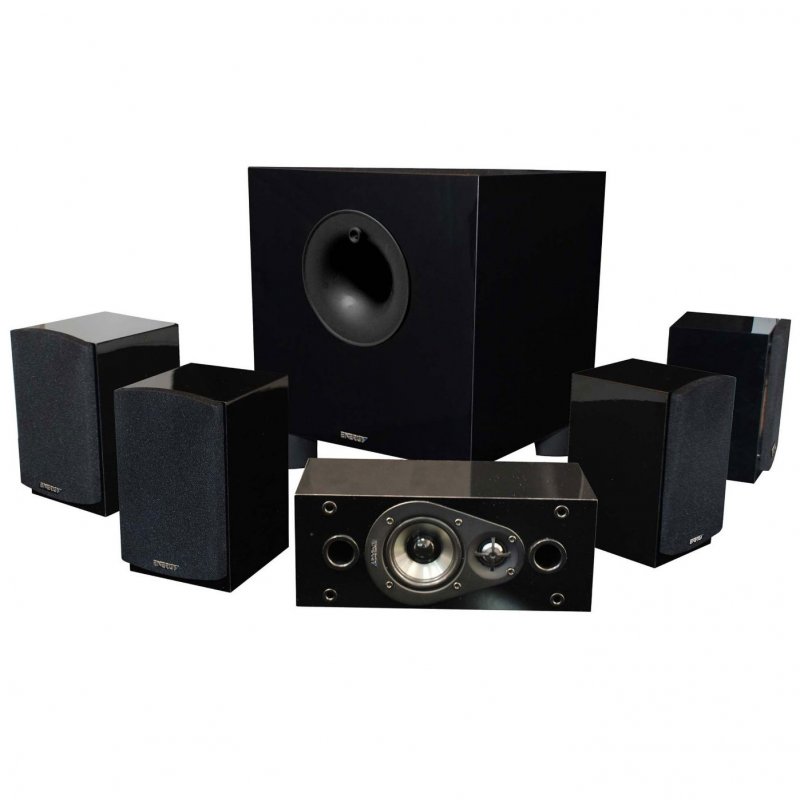

A 6-piece, high gloss black set of Energy Take Classic 5.1 speakers: 4-Take satellite speakers, 1-perfectly matched Take center channel speaker, 1-perfectly matched Take powered subwoofer; 1-owners manual.

Technical Specifications

• Frequency Response - Sat: 115Hz-20KHz; Center: 110Hz-20KHz; Subwoofer: 33Hz-150Hz +/- 3dB
• Crossover Point - 2.9 kHz
• Sensitivity - 89dB
• Power Handling - Sat & Center: 100 Watts; Subwoofer: 200 Watts
• Recommended Amplifier Power - 20 - 100 Watts RMS (continuous)
• Impedance - 8-ohm compatible
• Subwoofer Variable Low Pass Filter - 40Hz-150Hz @ 18dB/octave
• Tweeter - ¾-inch (19 mm) Hyperbolic™ aluminum-dome
• Woofer - Sat & Center: 3-inch poly-titanium; Sub: 8" IM Cone with Patented Ribbed Elliptical Surround
• Dimensions (inches) - Sat: 6 7/8 x 4 1/8 x 4 1/8; Center: 4 1/8 x 10 1/4 x 4 1/8; Subwoofer: 12 5/8 x 12 5/8 x 12 5/8 (add 2 1/6" for feet)
• Weight - Sat: 2.9 lbs; Center: 3.2 lbs; Subwoofer: 19.7 lbs

Maximum Performance Tips:
The center channel speaker needs to be centrally located so that the dialogue appears to be coming from the center of the screen. It needs to be above or below the monitor, as closely to it as possible. If you're using a rear projection television, the most likely option is to place it above the screen. If you have a front projection system, you have choices-stand mounting, or placement on furniture, for example. It is important, though, to place the speaker so that its front edge is even with the edge of the shelf or stand supporting it. Unwanted diffraction occurs when the center channel is too far back into a cabinet or other surface with edges that could impede sound dispersion.

For left or right front channels, the distance between the speakers should be 6-8 feet at minimum for the best stereo imaging. The optimum room shape is rectangular, with the speakers along one of the shorter walls, facing the opposite side. If possible, do not place speakers against a wall or at rear of a bookshelf; corner placement is usually the worst option. Try to keep the speakers-especially rear vented models-at least two feet from the surface behind it, unless you use a vent plug. For best results mounting on a rear wall, position the speakers so they flank the main listening area and point toward the front of the room. They should be raised to a height of approximately six feet and should ideally have a space of six feet between them. The three most common subwoofer locations include corners (which can result in boomy or exaggerated low frequency response), placement along a wall, away from the corner (producing moderate bass performance with increased fidelity over corner placement), or beside a front speaker (creating a better blend with the front speaker, but sacrificing overall volume). Experimentation with subwoofer placement is highly encouraged; slight adjustments can create big differences in sound reproduction. To test subwoofer placement, install it temporarily in your main listening position and walk around the listening room while playing a familiar piece of music until you find the best sounding position.

Satellite

• System Type: Magnetically Shielded Bass Reflex with Rear Firing Port

• Frequency Response: 115Hz-20KHz
• Tweeter: 0.75-inch (19 mm) Hyperbolic aluminum-dome

• Woofer: 3-inch (7.6 cm) poly-titanium
• Crossover Point: 2.9 kHz
• Efficiency (Room): 89 dB
• Impedance: 8-ohm compatible
• Maximum Power Handling: 100 Watts
• Dimension HxWxD (grille not included): 6 7/8 x 4 1/8 x 4 1/8 mm: 169 x 105 x 105

• Weight: 2.9 lb / 1.32 kg

• Inputs: Mini 5-Way Binding Posts


Center

• System Type: Magnetically Shielded Bass Reflex with Dual Front Firing Ports
• Frequency Response: 110Hz-20KHz
• Tweeter: 0.75-inch (19 mm) Hyperbolic aluminum-dome
• Woofer: 3-inch (7.6 cm) poly-titanium
• Crossover Point: 2.9 kHz
• Efficiency (Room): 89 dB
• Impedance: 8-ohm compatible

• Dimension HxWxD (grille not included): 4 1/8 x 10 1/4 x 4 1/8 mm: 105 x 260 x 105
• Weight: 3.2 lb / 1.45 kg

Maximum Power Handling: 100 Watts
Recommended Amplifier Power: 20 - 100 Watts RMS (Continuous)
Colors: High Gloss Black
Inputs: Mini 5-Way Binding Posts
Mounting Options: Built-in keyhole slot and threaded insert (1/4” - 20 TPI) to accept articulating brackets such as Omni Mount

Subwoofer

• System Type: Bass Reflex with Front Firing Port
• Amplifier Power Output: 200 Watts
• Woofer: 8” (20 cm) IM Cone with Patented Ribbed Elliptical Surround
• Frequency Response: 33Hz-150Hz +/- 3dB
• Variable Phase Control: 0°, 180°
• Variable Low Pass Filter: 40Hz-150Hz @ 18dB/octave
• Inputs: Line In/Sub In & Speaker Level In
• Dimension HxWxD (feet not included) add 2 1/16” (52.4mm) for feet: 12 5/8 x 12 5/8 x 12 5/8 mm: 320.7 x 320.7 x 320.7
• Weight: 19.7 lbs. / 8.94 kg.
• Colors: High Gloss Black
