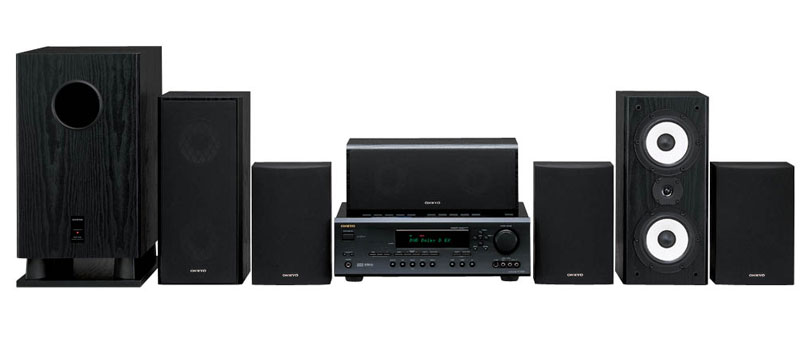

Face it. If you don’t have a receiver and speaker system, then you’re only getting half of the DVD experience. The HT-S770 gives you all you paid for, with a powerful 100-watt, six channel receiver at the center and the matched 6.1-channel speaker system for the enveloping surround sound that you should be experiencing.

• built-in Dolby® Digital EX, DTS-ES®, DTS 96/24, & Pro Logic® IIx processing, for 6.1 surround sound from DVD, VHS, and stereo sources
• DTS Neo:6 modes
• 6-channel amplifier (130 watts x 6)
AM/FM tuner with 30 station presets
• 5.1-channel audio input for connecting an SACD or DVD-Audio player

• Headphone jack (.25-inch)
• Six amplified channels
• Virtual surround sound
• AM-FM tuner
• Tuning: Manual station setting
• Radio station presets: Information not available
• Preset station naming
• Dolby Digital decoder (including Dolby Digital EX 6.1)
• DTS decoder: Yes (including DTS-ES 6.1)
• Dolby Pro Logic decoder
• Dolby Pro Logic II decoder
• Acoustic Control: +/- 10 dB at 50 Hz, / +/- 10 dB at 20 kHz
• Front surround power per channel: 130 watts (at 1 kHz into 8 ohms, FTC); dynamic (peak) power: 170 watts/115 watts
• Rear surround power per channel: 130 watts (at 1 kHz into 8 ohms, FTC); dynamic (peak) power: 110 watts
• Subwoofer power (RMS): 220 watts (powered sub)
• Subwoofer crossover: Selectable: 60, 80, 100, 120, or 150 Hz
• Discrete Output stage
• Onscreen display
• RI-Compatible Remote Control
• Front-panel AV inputs
• Audio outputs: 2 stereo analog (left/right) RCA, 1 monaural RCA subwoofer output
• Audio inputs: 5 stereo analog (left/right) RCA
• Total harmonic distortion: Amplifier: .08 percent at rated output; radio (FM Mono/FM Stereo/AM): 0.2 percent/0.3 percent/0.7 percent
• Multichannel ready

SPEAKERS & SUBWOOFER

• Speaker drivers: Front left/right: 5.25-inch cone with 1-inch dome tweeter; center-channel speaker: 4-inch cone x 2 with 1-inch dome tweeter; left/right surround speakers: 4-inch cone x 1 with 1-inch dome tweeter; subwoofer: 8-inch cone
• Speaker enclosure type: Ported (bass-reflex)
• Speaker terminals: Information not available
• Speaker type: Bookshelf/satellite, subwoofer (all speakers ported for increased bass response)
• Frequency response (+/- 3 dB): Speakers: 30 to 35,000 Hz (system); 30 to 150 Hz (subwoofer), 55 to 35,000 Hz (front left/right speakers), 65 to 35,000 Hz (center-channel and surround speakers); amplifier: 20 to 100,000 Hz (+ 1 dB, - 3 dB)
• Signal-to-noise ratio: Amplifier: 100 dB (IHF-A); radio (FM Mono/FM Stereo/AM): 76 dB (IHF-A)/70 dB (IHF-A)/40 dB
• Nominal speaker impedance: 8 ohms (all speakers); input impedance for subwoofer: 15 kohm/Line
• FM stereo separation: 45 dB at 1 kHz, 30 dB at 100 Hz-10 kHz
• Sensitivity/efficiency (1 watt @ 1 meter): Front: 86 dB/W/m; Center: 85 dB/W/m; Surround: 82 dB/W/m; Subwoofer: 220 mV
• Video shielded: Yes
• Speaker mounts included: No
• Power input: AC 120V, 60 Hz
