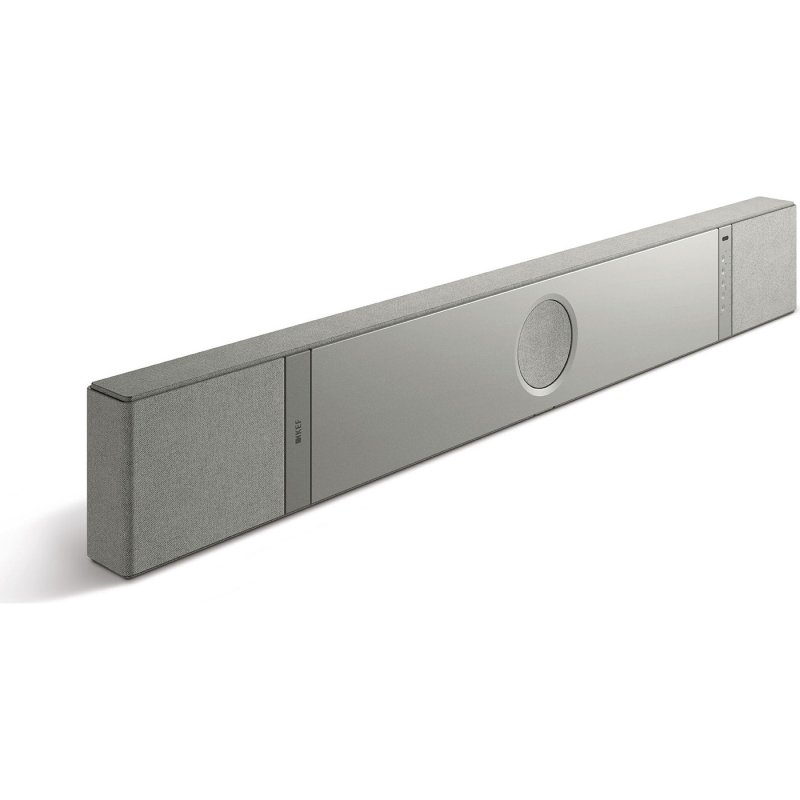

KEF XIO 5.1.2 Dolby Atmos HiFi Soundbar with Uni-Q MX and VECO 820W SILVER GREY

The KEF XIO is a premium all-in-one HiFi soundbar engineered to deliver immersive cinematic sound and exceptional musical performance from a sophisticated, slim-profile enclosure. Featuring a 5.1.2-channel acoustic configuration, 12 Class D amplifiers and KEF's innovative Uni-Q MX, P185 and Velocity Control technologies, the XIO brings the precision and detail of a high-performance KEF audio system to modern home entertainment.

Designed for movies, television, gaming and high-resolution music streaming, the XIO supports Dolby Atmos, DTS:X, Sony 360 Reality Audio and MPEG-H immersive audio formats. Its advanced Music Integrity Engine for Cinema coordinates the soundbar's acoustic drivers, digital signal processing and room-adaptive technologies to create a spacious three-dimensional listening experience with clear dialogue, accurate sound placement and powerful bass.

Finished in Silver Grey, the XIO combines an elegant aluminium top panel with durable splash-resistant acoustic fabric. HDMI 2.1 eARC, optical audio, Wi-Fi, Bluetooth 5.3, Apple AirPlay, Google Cast and extensive music streaming support provide flexible connectivity. Intelligent Placement Technology automatically optimizes the sound for wall-mounted or furniture-based installations, while the KEF Connect app, included remote control and integrated touch panel provide convenient operation.

Immersive 5.1.2-Channel Cinematic Sound

The XIO delivers a 5.1.2-channel spatial audio presentation designed to reproduce sound with convincing width, depth and height. Its sophisticated driver configuration reproduces five main audio channels, a dedicated low-frequency channel and two overhead channels from a single soundbar.

Six Uni-Q MX drivers and two full-range drivers support the main and height channels, while four P185 low-frequency drivers reinforce the bass channel, creating a full-range acoustic presentation without requiring a separate subwoofer.

With support for Dolby Atmos, DTS:X, Sony 360 Reality Audio and MPEG-H, the XIO reproduces compatible immersive soundtracks with precise spatial positioning. Advanced up-mixing technology can also expand conventional mono and stereo content into a wider multichannel presentation.

KEF Uni-Q MX Driver Technology

The XIO features six 50 mm (2") Uni-Q MX drivers, a miniature adaptation of KEF's renowned Uni-Q acoustic technology. These drivers are engineered to deliver precise sound reproduction and broad dispersion from the compact dimensions of a soundbar.

The Uni-Q MX incorporates an innovative decoupler that separates the low-frequency cone from the high-frequency tweeter dome. This arrangement allows the diaphragm to move effectively at lower frequencies while maintaining accurate high-frequency reproduction.

By reducing unwanted interaction between the driver components, Uni-Q MX technology helps produce a balanced soundstage with clear vocals, detailed musical information and consistent audio performance throughout the listening area.

Four P185 Low-Frequency Drivers with P-Flex

The XIO incorporates four KEF P185 low-frequency drivers featuring an innovative high-aspect-ratio racetrack design. Each driver measures 50 x 180 mm (2 x 7"), allowing significant bass performance from a slim acoustic assembly.

The P185 drivers incorporate KEF's P-Flex surround technology, originally developed for the company's high-performance subwoofers. Inspired by the structural principles of origami, the P-Flex surround resists internal acoustic pressure while allowing controlled driver movement.

The compact driver arrangement includes opposing force-cancelling configurations that help reduce cabinet vibration and unwanted mechanical resonance. This engineering allows the XIO to reproduce deep, detailed bass while maintaining its elegant low-profile design.

Velocity Control Technology (VECO)

KEF's patent-pending Velocity Control Technology, or VECO, provides advanced distortion management for the XIO's P185 low-frequency drivers.

A built-in sensor continuously monitors driver cone movement and uses a negative-feedback system to identify deviations from the intended audio signal. Corrective processing is applied to the signal driving the voice coil, helping reduce distortion and compression during demanding low-frequency passages.

This approach improves bass precision and control, allowing the soundbar to reproduce powerful cinematic effects and detailed musical bass with greater accuracy.

Music Integrity Engine for Cinema

The XIO features KEF's Music Integrity Engine (MIE) for Cinema, a proprietary digital signal processing system specifically developed for multichannel home entertainment.

The processing engine coordinates the acoustic drivers and amplifiers while providing spatial audio decoding, sound virtualization, up-mixing and adaptive placement optimization.

These technologies work together to maintain tonal balance, accurate sound imaging and dynamic performance across a variety of audio formats and listening environments.

820-Watt Instantaneous Amplifier Output

Twelve dedicated Class D amplifiers provide a combined instantaneous output power rating of 820 watts. Eight amplifiers drive the high-frequency and midrange sections, while four dedicated amplifiers power the P185 low-frequency drivers.

This integrated amplification system provides precise driver control and dynamic capability, contributing to the XIO's maximum acoustic output of 102 dB SPL at one metre.

The soundbar delivers a specified frequency response of 34 Hz to 20 kHz (±3 dB), measured at 85 dB/1m, providing substantial bass extension and detailed reproduction across the audible frequency range.

Intelligent Placement Technology

KEF Intelligent Placement Technology (IPT) automatically optimizes the XIO's acoustic response according to its surroundings.

Built-in sensing and digital signal processing analyze nearby objects and the soundbar's placement, allowing the Music Integrity Engine to adjust the output for balanced performance.

Adaptive shelf and wall placement modes further optimize sound reproduction, giving users flexibility to position the XIO on suitable furniture or install it using the included wall-mounting hardware.

Dedicated Dialogue and Night Modes

The XIO includes a dedicated Dialogue Mode designed to improve speech intelligibility during television programs, films, documentaries and news broadcasts.

Dialogue Mode emphasizes vocal frequencies while reducing the influence of background sounds, helping voices remain clear during complex soundtracks.

Night Mode is intended for listening at reduced volume levels. It moderates sudden loud effects while maintaining the audibility of quieter soundtrack details, making the XIO suitable for late-night viewing and shared living spaces.

HDMI 2.1 eARC and Optical Audio

The XIO connects to compatible televisions through HDMI 2.1 eARC, supporting high-resolution audio transmission up to 24-bit/192 kHz from compatible sources. This single-cable connection provides a convenient way to integrate the soundbar into modern home theatre systems.

A TOSLINK optical digital input supports compatible television and audio sources at resolutions up to 24-bit/96 kHz. A USB-C service port and RJ45 Ethernet connection are also provided.

Actual available audio formats and resolutions depend on the connected television, source equipment and playback content.

Wired and Wireless Subwoofer Expansion

The XIO delivers substantial bass through its integrated P185 driver system, but also provides options for adding an external subwoofer.

A dedicated RCA subwoofer output allows compatible powered subwoofers to be connected using a conventional analog audio cable.

For wireless integration with compatible KEF subwoofers, the XIO supports the optional KEF KW2 RX receiver. This accessory allows a suitable KEF subwoofer to receive its audio signal wirelessly from the soundbar.

The KEF KW2 RX receiver and external subwoofers are sold separately.

High-Resolution Wireless Music Streaming

The XIO incorporates KEF's W2 wireless streaming platform, providing access to an extensive range of network audio services and playback technologies.

Supported features include Spotify Connect, TIDAL Connect, QPlay, Apple AirPlay, Google Cast and UPnP-compatible playback. Music services include Amazon Music, Qobuz, Deezer, HIGHRESAUDIO, internet radio and podcasts, subject to regional availability.

The network streaming system supports audio resolutions up to 24-bit/384 kHz from compatible sources, allowing the XIO to reproduce high-resolution music files without requiring a separate network music player.

Wi-Fi and Bluetooth 5.3 Connectivity

The XIO supports IEEE 802.11a/b/g/n/ac/ax wireless networking across 2.4 GHz, 5 GHz and 6 GHz frequency bands, providing flexible integration with compatible home networks.

Bluetooth 5.3 enables wireless audio streaming from compatible smartphones, tablets and other Bluetooth-enabled devices.

For installations where a wired network connection is preferred, the integrated RJ45 Ethernet port provides an alternative to wireless networking.

Flexible Controls and KEF Connect App

The XIO offers several convenient control methods, including its integrated top-panel touch controls, supplied infrared remote control and KEF Connect mobile application.

The top panel provides direct access to power, volume, mute and source selection. The infrared remote offers convenient operation from the listening position and includes a customizable favourite button.

Through the KEF Connect app, users can manage playback, select sources and adjust sound settings. Normal and Expert equalization modes provide additional control over the listening experience.

Elegant Construction and Versatile Mounting

The XIO combines a premium aluminium top plate with splash-resistant acoustic fabric, providing a refined appearance and practical durability.

Its minimalist Silver Grey finish complements contemporary televisions and entertainment furniture, while the supplied wall-mounting kit allows installation beneath a wall-mounted display.

Measuring 70 x 1,210 x 165 mm (2.8 x 47.6 x 6.5") and weighing 10.5 kg (23.1 lbs), the XIO delivers a substantial acoustic system within a streamlined enclosure.

Features:

• Premium 5.1.2-channel powered HiFi soundbar
• Supports Dolby Atmos, DTS:X, Sony 360 Reality Audio and MPEG-H
• Six 50 mm (2") KEF Uni-Q MX acoustic drivers
• Two additional 50 mm (2") full-range drivers
• Four 50 x 180 mm (2 x 7") P185 low-frequency drivers
• KEF P-Flex technology for controlled bass reproduction
• Velocity Control Technology (VECO) for low-frequency distortion correction
• Force-cancelling bass driver configuration to reduce cabinet vibration
• 12 dedicated Class D amplifiers
• 820W instantaneous total amplifier output power rating
• KEF Music Integrity Engine for Cinema
• Intelligent Placement Technology with adaptive wall and shelf optimization
• Mono and stereo up-mixing to multichannel audio
• Dedicated Dialogue Mode for enhanced speech clarity
• Night Mode for comfortable lower-volume listening
• Frequency response of 34 Hz to 20 kHz (±3 dB)
• Maximum acoustic output of 102 dB SPL
• HDMI 2.1 eARC and TOSLINK optical inputs
• Dedicated RCA subwoofer output
• Wireless KEF subwoofer connectivity with optional KW2 RX receiver
• Wi-Fi connectivity across 2.4 GHz, 5 GHz and 6 GHz bands
• Bluetooth 5.3 wireless audio streaming
• Apple AirPlay and Google Cast support
• Spotify Connect, TIDAL Connect and QPlay
• Amazon Music, Qobuz, Deezer and other supported streaming services
• Network audio support up to 24-bit/384 kHz
• RJ45 Ethernet connection for wired networking
• USB-C service connection
• Integrated touch controls and included infrared remote
• KEF Connect app with Normal and Expert EQ settings
• Aluminium top plate and splash-resistant acoustic fabric
• Includes wall-mounting hardware and mounting template
• Premium Silver Grey finish

Specifications:

General

• Brand: KEF
• Model: XIO
• Product Type: Powered HiFi Soundbar
• Audio Configuration: 5.1.2 Channels
• Colour: Silver Grey
• Construction: Aluminium Top Plate and Splash-Resistant Acoustic Fabric
• Placement: Wall Mount or Shelf/Cabinet

Drivers & Acoustic Performance

• Uni-Q MX Drivers: 6 x 50 mm (2")
• Full-Range Drivers: 2 x 50 mm (2")
• Low-Frequency Drivers: 4 x 50 x 180 mm (2 x 7") P185 with VECO
• Total Driver Assemblies: 12
• Frequency Response (±3 dB): 34 Hz - 20 kHz, Measured at 85 dB/1m
• Maximum Acoustic Output: 102 dB SPL at 1 m
• Bass Technology: P-Flex and Velocity Control Technology (VECO)
• Processing Engine: KEF Music Integrity Engine for Cinema

Amplification

• Amplifier Type: Class D
• HF/MF Amplifiers: 8 x Class D
• Low-Frequency Amplifiers: 4 x Class D
• Total Amplifiers: 12
• Instantaneous Total Amplifier Output: 820 W

Immersive Audio & Supported Formats

• Maximum Channel Configuration: 5.1.2
• Immersive Audio Formats: Dolby Atmos, DTS:X, Sony 360 Reality Audio, MPEG-H
• Additional Audio Formats: FLAC, WAV, AIFF, ALAC, AAC, WMA, MP3, M4A, LPCM, Ogg Vorbis
• Up-Mixing: Mono/Stereo to Multichannel
• Room Optimization: Intelligent Placement Technology (IPT)
• Placement Processing: Adaptive Wall and Shelf Modes
• Sound Modes: Dialogue, Night
• Equalization: Normal and Expert Modes

Wired Inputs & Outputs

• HDMI Input: HDMI 2.1 eARC
• Optical Audio Input: TOSLINK
• USB: USB Type-C (Service)
• Ethernet: RJ45 Network Connection
• Wired Subwoofer Output: RCA
• Wireless Subwoofer Output: Yes
• Optional Wireless Subwoofer Receiver: KEF KW2 RX (Sold Separately)

Wireless Connectivity

• Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax
• Wi-Fi Frequency Bands: 2.4 GHz / 5 GHz / 6 GHz
• Network Protocols: IPv4, IPv6
• Bluetooth: Bluetooth 5.3
• Apple AirPlay: Supported
• Google Cast: Supported
• UPnP: Compatible
• Control Platform: KEF Connect

Music Streaming Services

• Spotify: Spotify Connect
• TIDAL: TIDAL Connect
• QQ Music: QPlay
• Additional Services: Amazon Music, Qobuz, Deezer, HIGHRESAUDIO
• Other Streaming Content: Internet Radio and Podcasts
• Service Availability: Varies by Region

Supported Audio Resolution

• HDMI eARC: Up to 24-bit/192 kHz
• Network Audio: Up to 24-bit/384 kHz
• Optical Audio: Up to 24-bit/96 kHz
• Resolution Availability: Dependent on Source

Controls

• Onboard Controls: Top-Panel Touch Controls
• Remote Control: Infrared Remote with Customizable Favourite Button
• App Control: KEF Connect
• EQ Options: Normal and Expert Modes

Power

• Power Input: 100-240V AC, 50/60 Hz
• Maximum Operating Power Consumption: 400 W
• ECO Standby Power: Less Than 2.0 W
• Non-Wi-Fi Mode Consumption: Less Than 0.5 W

Dimensions & Weight

• Dimensions (H x W x D): 70 x 1,210 x 165 mm (2.8 x 47.6 x 6.5")
• Weight: 10.5 kg (23.1 lbs)

What's in the Box:

• 1 x KEF XIO Soundbar - Silver Grey
• 1 x Remote Control
• AAA Batteries
• 1 x HDMI Cable
• 1 x Power Cable
• Wall-Mounting Kit
• Wall-Mounting Template
• Product Guide
