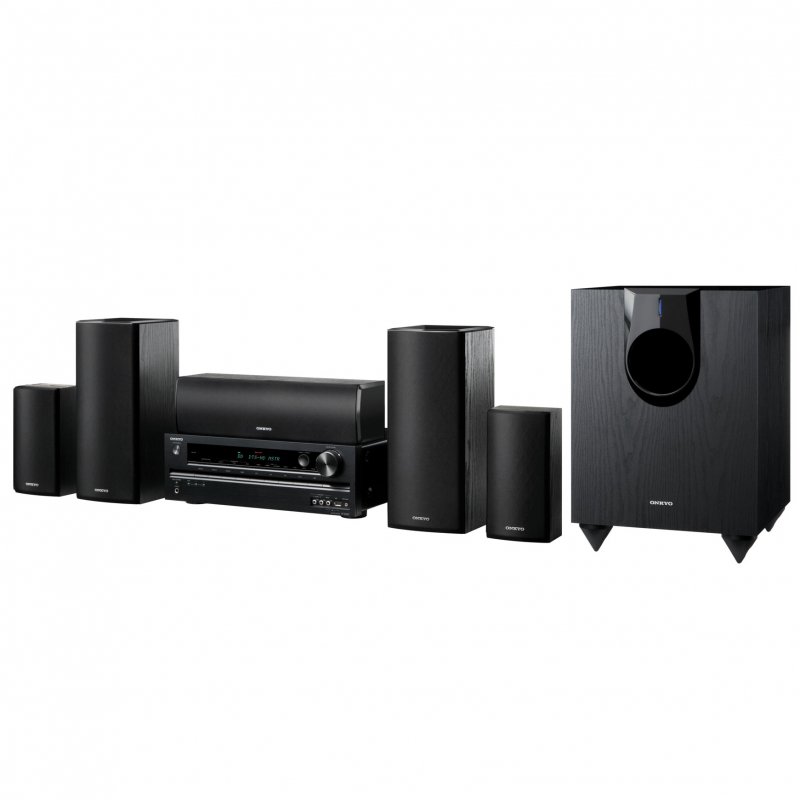

A Rock-Solid Foundation for Affordable Home Entertainment

Taking the hassle out of home theater, Onkyo presents the HT-S3400 package: a full-featured A/V receiver coupled with a quality six-piece speaker set. To handle the latest Blu-ray, gaming, and cable/satellite devices, the receiver sports four new HDMI® inputs. HDMI opens the way to lossless, high-definition audio from Dolby and DTS, as well as immersive new 3D video content. It also supports a convenient Audio Return Channel from a compatible HDTV back to the receiver. Handy analog audio and video inputs on the receiver’s front panel make it easy to hook up your video camera or game console. And rounding out the connection highlights is a Universal Port that lets you connect peripherals such as an optional iPod®/iPhone® dock. Audyssey equalization filters work to optimize your audio experience, while an overlaid on-screen display allows seamless adjustment of the system’s settings during a session. A superbly balanced 5.1-channel speaker set completes the package.

Special Features

HDMI Support for 3D Video and Audio Return Channel
Total 660W with a Powerful 8-inch Subwoofer
Decoding of High-Definition Surround-Sound Codecs
Convenient Overlaid On-Screen Display via HDMI
Audyssey Dynamic Volume™ to Maintain Optimal Listening Level
Audyssey Dynamic EQ™ for Loudness Correction

Amplifier Section
Power Output	-
Front L/R	110 W/Channel (6 ohms, 1 kHz, 1%, 1 channel driven, FTC)
Center	110 W (6 ohms, 1 kHz, 1%, 1 channel driven, FTC)
Surround L/R	110 W/Channel (6 ohms, 1 kHz, 1%, 1 channel driven, FTC)
Surround Back L/R	-
Dynamic Power	160 W (3 ohms) 125 W (4 ohms) 85 W (8 ohms)
THD+n (Total Harmonic Distortion + Noise)	0.08% (20 Hz-20 kHz, half power)
Damping Factor	60 (Front, 1 kHz, 8 ohms)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line)
Rated RCA Output Level and Impedance	200 mV/470 ohms (Rec out)
Maximum RCA Output Level and Impedance	2.0V/2.2 k-ohms (Rec out)
Frequency Response	20 Hz–50 kHz/ +1 dB, -3 dB (DSP Bypass)
Tone Control	±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio	100 dB (Line, IHF-A)
Speaker Impedance	6 ohms–16 ohms
Video Section
Input Sensitivity/Output Level and Impedance	-
Video	1.0 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 ohms (Composite)
Component Video Frequency Response	5 Hz–100 MHz/0 dB, -3 dB
Tuner Section
Tuning Frequency Range	-
FM	87.5 MHz–107.9 MHz
AM	530 kHz–1,710 kHz
FM/AM Preset Memory	40 stations
General
Power Supply	AC 120 V, 60 Hz
Power Consumption	3.5 A
Dimensions (W x H x D)	17 1/8" x 5 7/8" x 12 15/16" (435 x 150 x 328 mm)
Weight	16.5 lbs. (7.5 kg)
Speaker Section
Speaker Type	-
Front/Center	Full-range, bass reflex
Surround	Full-range, bass reflex
Subwoofer	Bass reflex
Drivers	-
Front	3 1/4" (8 cm) cone
Center	3 1/4" (8 cm) cone
Surround	3 1/4" (8 cm) cone
Subwoofer	8" (20 cm) cone
Frequency Response	-
Front/Center	80 Hz–20 kHz
Surround	80 Hz–20 kHz
Surround Back	-
Subwoofer	30 Hz–150 Hz
Output Sound Pressure Level	-
Front	81 dB/W/m
Center	81 dB/W/m
Surround	80 dB/W/m
Surround Back	-
Subwoofer	83 dB/W/m
Max. Input Power	-
Front/Center/Surround	120 W
Surround Back	-
Subwoofer	130 W
Max. Output Power	-
Subwoofer	-
Nominal Impedance	-
Front/Center/Surround	6 ohms
Surround Back	-
Subwoofer	6 ohms
Input Sensitivity/Impedance	-
Subwoofer	-
General
Dimensions (W x H x D)	-
Front	4" x 9 1/8" x 4 11/16" (101 x 231 x 119 mm)
Center	9 1/16" x 4 1/16" x 4 1/2" (230 x 103 x 115 mm)
Surround	4" x 6 5/16" x 4 1/2" (101 x 161 x 115 mm)
Surround Back L/R	-
Subwoofer	11 5/8" x 13 9/16" x 14 1/2" (295 x 345 x 368 mm)
Weight	-
Front	1.8 lbs. (0.8 kg)
Center	1.8 lbs. (0.8 kg)
Surround	1.5 lbs. (0.7 kg)
Surround Back	-
Subwoofer	14.1 lbs. (6.4 kg)

Description image for Onkyo HT-S3400 5.1-Channel Home Theater Package

One-Year Manufacturer's Warranty

This item is features a one-year parts and labor warranty.

Product Details

Onkyo HT-S3400
Brand New : Factory Sealed
UPC : 751398009464
EFLC : 2406
