Stacked with Options and Versatility—From Multiple High-Definition (1080p) Sources to the iPod, Gaming, and SIRIUS™ Satellite Radio

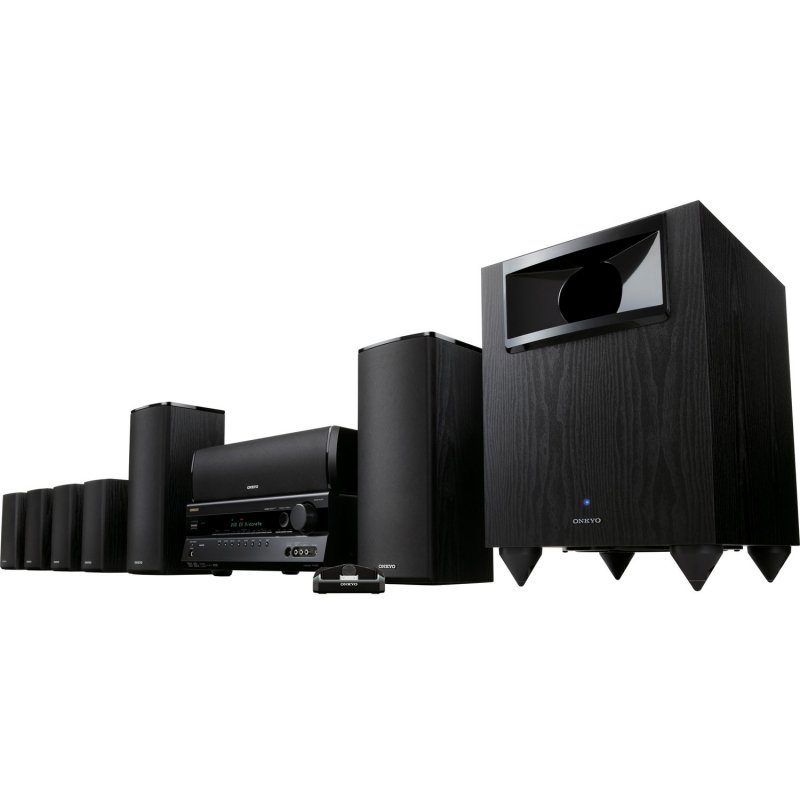

If you want an idea of where Onkyo’s home theater packages are heading, the HT-S5200 is well worth checking out.Like previous Onkyo 7.1-channel receiver/speaker packages, the HT-S5200 delivers reassuringly hefty amounts of power and all-round performance. And in line with other recent offerings, it’s also perfectly suited for high-definition entertainment in the home: 1080p video takes center stage from sources such as Blu-ray Disc, DVD, HD broadcasting, and gaming. The emphasis is still on Onkyo’s audio prowess, so the HT-S5200 is equipped with three groundbreaking Audyssey technologies that will give you the edge in terms of surround sound.It also features some exciting innovations from Onkyo: a dedicated port that connects the iPod via the Dock for the iPod and DSP modes specifically designed for gaming.

Special Features

• Total 1200W with a Powerfull 10-inch 290W Powered Subwoofer
• WRAT technology and discrete amp construction for cleaner sound
• Four 1080p capable HDMI inputs (V1.3a Pass-Thru*)
• 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
• Includes dedicated RI iPod dock (UP-A1L) which supports the following iPods:
  • 4th Gen iPod
  • 4th Gen iPod (color display)
  • iPod Photo
  • iPod video
  • iPod Classic (80, 120 and 160GB)
  • 1st - 4th Gen iPod Nano
  • 1st and 2nd Gen iPod Touch
  • iPhone and iPhone 3G

Amplifier Section

• Power Output -
  • Front L/R 130 W/Channel (8 ohms, 1 kHz, FTC)
  • Center 130 W (8 ohms, 1 kHz, FTC)
  • Surround L/R 130 W/Channel (8 ohms, 1 kHz, FTC)
  • Surround Back L/R 130 W/Channel (8 ohms, 1 kHz, FTC)
• Dynamic Power 210 W (3 ohms)
  • 190 W (4 ohms)
  • 130 W (8 ohms)
• THD (Total Harmonic Distortion) 0.9 %
• Damping Factor 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance 200 mV/47 k-ohms (Line)
• Output Level and Impedance 200 mV/470 ohms (Rec out)
• Frequency Response 10 Hz–50 kHz/ +1 dB, -3 dB (Direct mode)
• Tone Control
  • ±10 dB, 80 Hz (Bass)
  • ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio 100 dB (Line, IHF-A)
• Speaker Impedance 6 ohms–16 ohms

Video Section

• Input Sensitivity/Output Level and Impedance -
• Video 1.0 Vp-p/75 ohms (Component)
• 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)
• 1.0 Vp-p/75 ohms (Composite)
• Component Video Frequency Response 5 Hz–50 MHz

Tuner Section

• Tuning Frequency Range -
• FM 87.5 MHz–107.9 MHz
• AM 530 kHz–1,710 kHz
• FM/AM Preset Memory 30 stations

General

• Power Supply AC 120 V, 60 Hz
• Power Consumption 2.3 A
• Standby Power Consumption N/A
• Dimensions (W x H x D) 17 1/8" x 5 7/8" x 14 1/2" (435 x 150 x 369 mm)
• Weight 18.5 lbs. (8.4 kg)

Speaker Section

• Speaker Type -
  • Front/Center 2-way, bass reflex
  • Surround Full-range, acoustic-suspension
  • Surround Back Full-range, acoustic-suspension
  • Subwoofer Bass reflex
• Drivers -
  • Front 5" (12 cm) cone woofer,
  • 1" (2.5 cm) balanced-dome tweeter
  • Center 3 1/4" (8 cm) cone woofer x2,
  • 1" (2.5 cm) balanced-dome tweeter
  • Surround 3 1/4" (8 cm) cone
  • Surround Back 3 1/4" (8 cm) cone
  • Subwoofer 10" (25 cm) cone
• Frequency Response -
  • Front/Center 35 Hz–50 kHz/60 Hz–50 kHz
  • Surround 80 Hz–20 kHz
  • Surround Back 80 Hz–20 kHz
  • Subwoofer 25 Hz–150 Hz
  • Output Sound Pressure Level -
  • Front 85 dB/W/m
  • Center 85 dB/W/m
  • Surround 81 dB/W/m
  • Surround Back 81 dB/W/m
• Subwoofer -
  • Max. Input Power -
  • Front/Center/Surround 130 W
  • Surround Back 130 W
• Subwoofer Max. Output Power -
  • Subwoofer 290 W
• Nominal Impedance -
  • Front/Center/Surround 8 ohms
  • Surround Back 8 ohms
• Subwoofer Input Sensitivity/Impedance -
  • Subwoofer 20 k-ohms

General

• Dimensions (W x H x D) -
• Front 6 1/8" x 14 5/8" x 7 13/16" (155 x 371 x 198 mm)
• Center 17 3/16" x 4 1/8" x 5 3/16" (436 x 105 x 132 mm)
• Surround 5 5/16" x 10 11/16" x 3 3/4" (151 x 271 x 96 mm)
• Surround Back L/R 5 5/16" x 10 11/16" x 3 3/4" (151 x 271 x 96 mm)
• Subwoofer 11 1/8" x 19 5/8" x 15 11/16" (283 x 498 x 399 mm)
• Weight -
• Front 6.4 lbs. (2.9 kg)
• Center 5.7 lbs. (2.6 kg)
• Surround 2.86 lbs. (1.3 kg)
• Surround Back 2.86 lbs. (1.3 kg)
• Subwoofer 25.4 lbs. (11.5 kg)

Two-Year Parts and Labor by Onkyo Canada

electronicsforless.ca is a certified Onkyo Canada dealer

* SIRIUS requires separate purchase of subscription,compatible tuner and antenna.
