Top-of-the-Line Package with Tall-Boys for More Powerful Audio

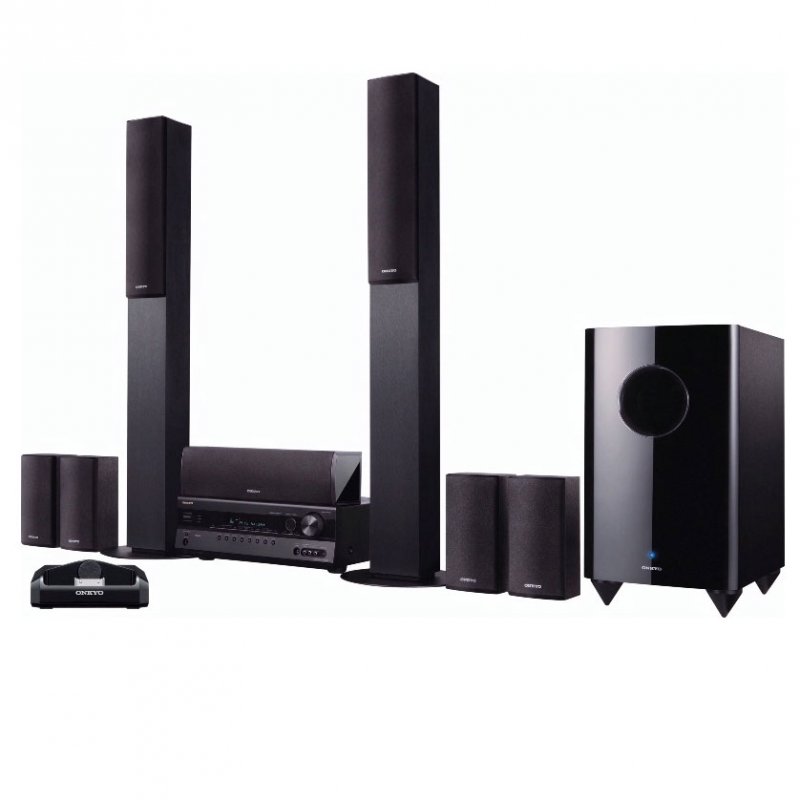

Sitting at the top of our range of home theater packages, the HT-S7300 combines today’s essential A/V technology with proven Onkyo amplification muscle. Four HDMI 1.4a inputs allow you to hook up all your high-def devices and enjoy spectacular widescreen 1080p resolution on a compatible display. Non-HD video sources, meanwhile, can be upscaled to 1080p via HDMI with Faroudja DCDi Cinema™. HDMI 1.4a not only provides a handy Audio Return Channel from your TV’s tuner to the receiver, it also gives you compatibility with upcoming 3D video content. Among the other connectivity options on the HT-S7300 is a Universal Port for the included Dock for iPhone/iPod. The Onkyo name is synonymous with quality sound, so it’s no surprise the HT-S7300 packs stellar audio processing: lossless HD codecs from Dolby and DTS; Dolby® ProLogic IIz for overhead ambience; Audyssey room-correction; and specialized audio modes for gaming. Rounding it out is a speaker set highlighted by a mighty pair of floor-standing front speakers that excel every bit as much with music as they do with movies and games.p>
Special Features
- Four 1080p capable HDMI inputs (V1.4a) supporting 3D video and Audio Return Channel
- Total 1200W with a Powerfull 10-inch 290W Powered Subwoofer
- 1080p scaling via Faroudja DCDi Cinema
- WRAT technology and discrete amp construction for cleaner sound
- 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
- Includes dedicated RI iPod dock (UP-A1) which supports the following iPods:
- 4th Gen iPod
- 4th Gen iPod (color display)
- iPod Photo
- iPod video
- iPod Classic (80, 120 and 160GB)
- 1st - 5th Gen iPod Nano
- 1st, 2nd and 3rd Gen iPod Touch
- iPhone, iPhone 3G and iPhone 3GS
RECEIVER | |
Amplifier Section | |
| Power Output | - |
| Front L/R | 130 W/Channel (6 ohms, 1 kHz) |
| Center | 130 W (6 ohms, 1 kHz) |
| Surround L/R | 130 W/Channel (6 ohms, 1 kHz) |
| Surround Back L/R | 130 W/Channel (6 ohms, 1 kHz) |
| Dynamic Power | 180 W (3 ohms) 160 W (4 ohms) 100 W (8 ohms) |
| THD (Total Harmonic Distortion) | 0.08% (1W) |
| Damping Factor | 60 (Front, 1 kHz, 8 ohms) |
| Input Sensitivity and Impedance | 200 mV/47 k-ohms (Line) |
| Output Level and Impedance | 200 mV/2.2 k- ohms (Rec out) |
| Frequency Response | 5 Hz–100 kHz/ +1 dB, -3 dB (Direct mode) |
| Tone Control | ±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 106 dB (Line, IHF-A) |
| Speaker Impedance | 6 ohms–16 ohms |
Video Section | |
| Input Sensitivity/Output Level and Impedance | - |
| Video | 1.0 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 0.28 Vp-p/75 ohms (S-Video C, PR/CR) 1.0 Vp-p/75 ohms (Composite) |
| Component Video Frequency Response | 5 Hz–50 MHz (-3 dB) |
Tuner Section | |
| Tuning Frequency Range | - |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 stations |
General | |
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 4.9 A |
| Standby Power Consumption | - |
| Dimensions (W x H x D) | 17 1/8" x 5 15/16" x 12 15/16" (435 x 151.5 x 329 mm) |
| Weight | 19.0 lbs. (8.6 kg) |
SPEAKERS | |
| Speaker Type | - |
| Front/Center | 2-way (bass reflex) |
| Surround | Full-Range (acoustic suspension) |
| Surround Back | Full-Range (acoustic suspension) |
| Subwoofer | Bass reflex powered |
| Drivers | - |
| Front | 3 1/4" (8 cm) cone woofer x 2 1" (2.5 cm) balanced-dome tweeter |
| Center | 3 1/4" (8 cm) cone woofer x 2 1" (2.5 cm) balanced-dome tweeter |
| Surround | 3 1/4" (8 cm) cone |
| Surround Back | 3 1/4" (8 cm) cone |
| Subwoofer | 10" (25 cm) cone |
| Frequency Response | - |
| Front/Center | 60 Hz–50 kHz |
| Surround | 80 Hz–20 kHz |
| Surround Back | 80 Hz–20 kHz |
| Subwoofer | 25 Hz–150 Hz |
| Output Sound Pressure Level | - |
| Front | 79 dB/W/m |
| Center | 79 dB/W/m |
| Surround | 81 dB/W/m |
| Surround Back | 81 dB/W/m |
| Subwoofer | - |
| Max. Input Power | - |
| Front/Center/Surround | 130 W |
| Surround Back | 130 W |
| Subwoofer | - |
| Max. Output Power | - |
| Subwoofer | 290 W |
| Nominal Impedance | - |
| Front/Center/Surround | 6 ohms |
| Surround Back | 6 ohms |
| Subwoofer | - |
| Input Sensitivity/Impedance | - |
| Subwoofer | 140 mV/20 k-ohms |
General | |
| Dimensions (W x H x D) | - |
| Front | 10 5/16" x 41 1/8" x 10 5/16" (262 x 1045 x 262 mm) |
| Center | 16 9/16" x 4 1/2" x 4 3/4" (420 x 115 x 121 mm) |
| Surround | 4 1/2" x 9 1/16" x 3 3/4" ( 115 x 230 x 96 mm) |
| Surround Back | 4 1/2" x 9 1/16" x 3 3/4" ( 115 x 230 x 96 mm) |
| Subwoofer | 10 13/16" x 19 15/16" x 16 3/16" (275 x 507 x 411 mm) |
| Weight | - |
| Front | 11.5 lbs. (5.2 kg) |
| Center | 4.9 lbs. (2.2 kg) |
| Surround | 2.2 lbs. (0.8 kg) |
| Surround Back | 2.2 lbs. (1 kg) |
| Subwoofer | 25.6 lbs. (11.6 kg) |
