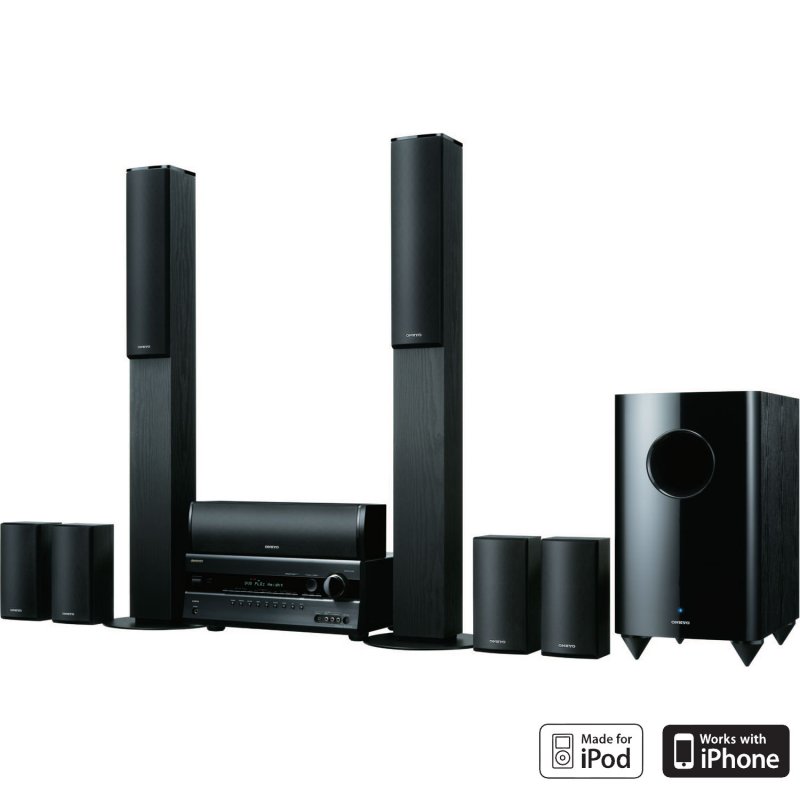

Sleek Receiver-and-Speaker Package Is Built to Thrill

With its two mighty tower speakers, the HT-S8400 stands apart from other home theater package systems. These two-way tall-boys work in concert with the other high-quality speakers to express the full scope and power of your music and other entertainment. No matter whether it’s a song, a game, or a movie, the receiver’s Dolby® Pro Logic® IIz decoding creates an enveloping 7.1-channel soundstage with

superb ambience. Once you’ve set the system up and calibrated the speakers—a breeze, thanks to Audyssey 2EQ®—you can browse your content seamlessly via the intuitive on-screen menus. The receiver accepts a wide range of playback devices and formats, including PC video via RGB and digital audio from iPod®/iPhone® via USB. In addition, four HDMI® inputs handle 3D video, lossless audio from DTS and Dolby, and video upscaling to 4K via Qdeo™ technology. The system’s network capability supports streaming audio from your PC or media server, as well as the infinite variety of internet radio. The HT-S8400 from Onkyo—prepare to be entertained.p>

Special Features

• Network Capability Delivers Internet Radio and Network Streaming

• Four 1080p capable HDMI inputs supporting 3D video and Audio Return Channel
• Over 1000W with a 10-inch 120W Powered Subwoofer
• HDMI upscaling to 4K with Qdeo Technology from Marvell
• Compatible with UWF-1 Wireless USB Adapter
• 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
• Audyssey 2EQ, Dynamic EQ and Dynamic Volume
• Includes dedicated RI iPod dock (UP-A1) which supports the following iPods:
• 4th Gen iPod
• 4th Gen iPod (color display)
• iPod Photo
• iPod video
• iPod Classic (80, 120 and 160GB)
• 1st - 5th Gen iPod Nano
• 1st, 2nd and 3rd Gen iPod Touch
• iPhone, iPhone 3G and iPhone 3GS

Product Features

System
# Channels	7.1
Total System Power	1030W
Power (6 ohms, 1kHz, 1%)/Ch	130W/ch x 7ch
Sub Power	120W
THX Certified	-
All Discrete Amplifier Circuitry	-
Speaker A/+B	-
Processing
DOLBY Decoder	TrueHD, DD Plus
DTS Decoder	DTS-HD Master Audio, HD-High Resolution Audio, NEO:6
Dolby PLIIz
ONKYO GAME Surround Modes
Audyssey Dynamic EQ	(2EQ)
Audyssey Dynamic Volume
Music Optimizer
Connectivity
Audio I/O	6 (1 front) / 1
Digital Audio IN (OPT/COAX)	2 / 2
Digital Audio OUT (OPT/COAX)	-
Composite I/O	5 (1 front) / 2
S-Video I/O	-
Component Video I/O	2 / 1
Front-Panel Portable input (stereo mini jack)	-
HDMI I/O	4 / 1
HDMI Version	V1.4a (supporting 3D video and Audio Return Channel)
Component Video Upconversion	-
Analog To HDMI UpConversion	(up to 4K via Qdeo Technology by Mavell)
Multi-Channel Input	-
Powered Zone2
U-port
iPod Ready	(direct USB input)
HD Radio Ready	(via optional UP-HT1)
XM Radio Ready	-
SIRIUS Radio Ready	-
DVD Player
DVD Player Type	-
Analog Audio Output	-
Digital Audio Output (OPT/COAX)	-
Composite Output	-
S-Video Output	-
Component Video Output	-
HDMI Output	-
720p / 1080i Upscaling	-
1080p Upscaling	-
Speaker
Front Speaker	2-way (bass reflex)
Center Speaker	2-way (bass reflex)
Surround Speaker	Full-Range (acoustic suspension)
Subwoofer	10" Down Firing (bass reflex)
Cabinet Type	wood/Plastic
Miscellaneous
Pre-Pro/Learning Remote	/ -
On Screen Remote Programming	-
Free HDMI Cable Included	-
Free iPod Dock Included	UP-A1
Color-Coded Speaker Terminals
Auto Speaker Calibration W/Mic.	(Audyssey 2EQ)
OSD Out	(basic overlay)
Warranty	2 YEARS

Two-Year Parts and Labor by Onkyo Canada

electronicsforless.ca is a certified Onkyo Canada dealer
