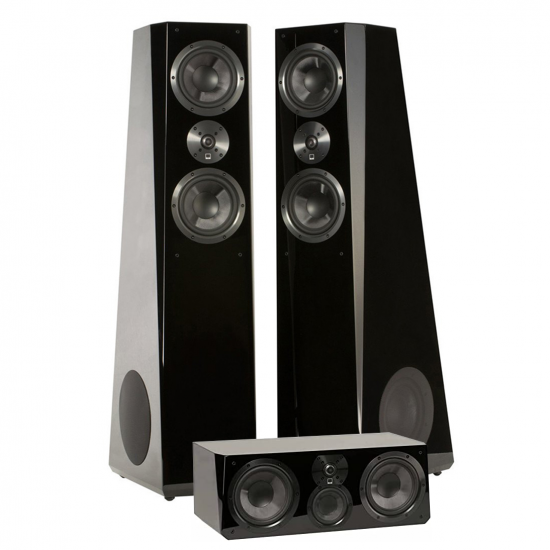

Introducing The Ultra Tower

Standing 45" tall with a unique upswept trapezoidal shape and striking edge treatments, the Ultra Tower creates a dramatic visual statement.

But at SVS beauty is never just skin-deep. The Ultra Tower delivers a deep and detailed soundstage with incredible resolution, absolute transparency, and amazingly rich and articulated bass-outperforming other brands costing two and three times their price.

Dramatic Styling Yields Sonic Benefits

The stunning Ultra Tower cabinet design yields numerous sonic benefits. The non-parallel cabinet panels reduce standing waves within the cabinet, effectively eliminating frequency response coloration. The wedge-shaped front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response. Even the grille design is FEA-optimized to maximize acoustic transparency.

Each cabinet also employs two separate sealed midrange enclosures to optimize performance and minimize negative interaction between drivers. In addition, the cabinet bracing is FEA-optimized, the cabinet midrange/tweeter baffles are 1" thick and the woofer baffles are an amazing 1.5" thick. This robust construction eliminates structural resonances and ensures the cabinet remains acoustically inert for uncolored response even at the highest drive levels.

SVS Ultra Center - The Foundation For High-End Home Theaters

The Ultra Center anchors the front stage and immerses the listener in the cinema experience, effortlessly handling the most complex and dialogue-intensive scenes with stunning realism, room-filling presence and outstanding vocal reproduction and dialogue intelligibility. Available in premium-grade piano gloss black and real black oak veneer finishes and handsomely styled with a swept back profile and striking edge treatments, the Ultra Center will complement any high-end home theater.

Dramatic Styling Yields Sonic Benefits

The Ultra Center cabinet design yields numerous sonic benefits. The non-parallel cabinet panels reduce standing waves within the cabinet, effectively eliminating frequency response coloration. The wedge-shaped front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response. Even the grille designn is FEA-optimizedd to maximize acoustic transparency.

SVS Drivers - Extreme Performance and Uncompromised Fidelity

The proprietary SVS drivers utilize the finest materials and design features to ensure the highest sound quality and performance. The Ultra Center driver array features a 1" aluminum dome tweeter, a 4" midrange driver, and dual 6.5" woofers. The vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering for a smooth frequency response and excellent dialogue intelligibility at all listening positions.

The 1" aluminum dome tweeter utilizes an FEA-optimized diffuser which delivers a very open 'airy' presentation and extremely unveiled highs.

The 4" midrange delivers amazing dialogue clarity and detail with powerful and room-filling presence and projection:

• A composite glass-fiber cone with excellent stiffness/mass ratio which improves sensitivity and maintains pistonic behavior well beyond the pass-band of the driver.
• A vented voice coil former to minimize air compression artifacts at high drive levels.
• An aluminum shorting ring to reduce gap inductance, lower distortion, and improve high frequency response.
• A cast aluminum basket to ensure precise alignment of critical components and enhance heat-sinking capacity.

• A composite glass-fiber cone with excellent stiffness/mass ratio which improves sensitivity and maintains pistonic behavior well beyond the pass-band of the driver.
• A vented voice coil former to minimize air compression artifacts at high drive levels.
• An aluminum shorting ring to reduce gap inductance, lower distortion, and improve high frequency response.
• A cast aluminum basket to ensure precise alignment of critical components and enhance heat-sinking capacity.

SoundMatch Crossover Network - Intelligently Designed for Your Listening Room

The SoundMatch 3-way crossover features premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards to ensure pure signal transmission. Careful selection of the crossover frequency and slopes results in a smooth off-axis polar response, outstanding phase coherency and a stable sound stage.

Features:

• Flagship tower loudspeaker with 3.5-way crossover
• 1" aluminum dome tweeter
• Dual 6.5" midrange drivers
• Dual horizontally-opposed 8" woofers.

Specifications:

• Tweeter: 1"
• Midrange: dual 6.5"
• Woofer: dual 8"
• Freq. Response: 28 Hz-32 kHz (±3 dB)"
• Port Size & #: 3.5"
• Dimension: 45.6" (H) 13.8" (W) 16.8" (D)
• Weight: 75.4 lb

• Center Channel Loudspeaker
• Dimensions: 8" (H) X 22" (W) X 10" (D).
• Weight: 31 pounds.
• Real black oak veneer and piano gloss black finish options.
• Dual gold-plated 5-way binding posts
• Dual 1.7" wide-flared rear-firing ports.
• Cloth grille with pin/cup retention system.
• Elastomer stick-on bumper feet (adds 3mm to height).

• Owner's manual

• Vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering.
• 1" aluminum dome tweeter:
  • FEA-optimized diffuser for unveiled presentation.
  • Aluminum dome deliver exceptional transient response and exceptional stiffness/mass ratio.
• 4" midrange driver:.
  • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band.
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response.
  • Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity.
  • Vented voice coil former to minimize air compression artifacts at high drive levels.
• 6.5" woofers:
  • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band.
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response.
  • Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity.
  • Vented voice coil former to minimize air compression artifacts at high drive levels.

• 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
• Midrange-to-tweeter crossover: 2.2 kHz.
• Midrange-to-woofer crossover: 500 Hz.

• Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted drivers all contribute to reduced edge diffraction and improved on-axis high frequency response.
• FEA-optimized bracing reduces cabinet resonances.

• Rated bandwidth: 45 Hz-32 kHz (+/-3 dB).
• Nominal impedance: 8 ohms.
• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz).
• Recommended amplifier power: 20-225 watts.
