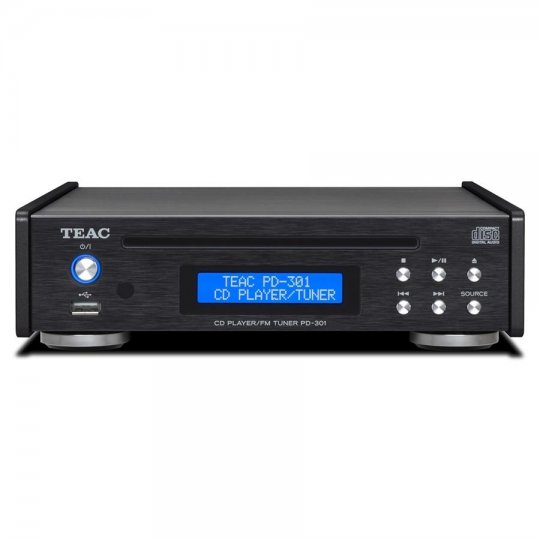

Teac PD-301-X Reference 300 Series CD Player / FM Tuner

$729.00

Secure One-Page Checkout
Get 29 Miles When you spend $729.00. See details
Teac Authorised
This product is brand-new and factory sealed Teac PD301XB  Special Order
UPC : 043774033713  5% Price Promise
Warranty : 1yr Manufacturer Special Order Return Policy
Shipping : FREE in Canada Shipped when Received



 Out of Stock

$122/mo suggested payments with 6 month special financing now with Flexiti.Get Instantly approved for 0% financing


A musical gateway for the 301 Reference series, enabling CD, USB playback and FM radio listening from one component

The PD-301-X is a combination product in the Reference 301 range, comprising a CD player, USB memory player and FM tuner, and provides a versatile digital media gateway for your existing desk-top audio system.

Thanks to its painstakingly developed circuit design, the PD-301-X delivers superb analogue audio sound to your amplifier, while the coaxial and optical outputs deliver digital audio signals to your favorite DAC (digital to analogue converter), not only from CD and USB memory sticks but also from the FM tuner.

Thanks to its low-profile and small footprint design, the PD-301-X greatly expands the flexibility of your desktop audio system.

Features:

  • Automatic CD Playback (On/Off selectable)
  • MP3, WMA playback from CD-ROM, CD-R and CD-RW
  • MP3, WMA, AACb, WAV playback from USB flash drive
  • Program playback (CD-DA only)
  • Shuffle and Repeat playback
  • Song title and artist name display (ID3 tag required)
  • Selectable Folder/File browse modes
  • USB Port for USB flash drive (USB A-type)
  • Coaxial and optical digital audio outputs
  • Analogue LINE audio output via RCA Pin
  • Card-type Remote Control
  • Full-metal body
  • Auto power-saving (On/Off selectable)
  • RoHS compliant
  • Slot-load CD drive mechanism supporting quick loading and automatic playback

    The PD-301-X features a compact, high-precision, slot-load CD drive mechanism that's exclusively designed for professional audio applications. Thanks to its quick loading times and automatic playback function, users can get on with enjoying their music mere moments after inserting a CD into the slot.

    Supports MP3, WMA, AAC and WAV formats

    Conventional digital audio formats such as MP3 and WMA can be played back from CD-ROM/CD-R/CD-RW discs. In addition, music files in AAC and WAV formats are also supported when played from a USB flash drive inserted into the front USB port. Usefully, the player can show ID3 tag, song title and artist name info contained on MP3, WMA and AAC files on its LC-display.

    High-performance 32-bit DAC

    The PD-301-X employs a high-performance DAC (digital to analogue converter), the PCM5142 from BurrBrown, for silky smooth audio reproduction.

    Robust full-metal body with a small footprint

    Employing aluminum panels for the player's front, sides and top means that the PD-301-X provides unusual rigidity, minimizing the adverse effect of unwanted vibrations on sound quality. And all from a package with a tiny footprint that occupies an area of just 215mm x 232mm (8.5"" x 9.1""), allowing users to comfortably locate the unit on the smallest of desktops.

    Built-in FM Tuner

    Unlike most other CD Players, the PD-301-X also features a FM Tuner module within its compact cabinet.

    Digital audio outputs for all sources, including FM

    In addition to conventional analogue audio outputs, audio signals from the PD-301-X's built-in FM tuner are also delivered from the digital audio outputs, via both the coaxial and optical connectors (of course, these connections also deliver digital audio from CD).

    10-key Remote Control

    A compact card-type remote control is supplied as standard with the PD-301-X.

    Specifications:

    CD section:

  • Supported media: CD-DA, CD-ROM, CD-R, CD-RW* (8cm CDs not supported) - Supports CD-DA format on CD-RW
  • Max number of files: 300 (including Folders)
  • Max number of folders: 50
  • Max number of layers: 16
  • USB section:

  • Supported USB devices: USB Mass Storage device class
  • Interface: USB2.0 (FULL-SPEED), USB1.0 (HIGH-SPEED), USB3.0 compatible
  • File system: FAT16, FAT32
  • Max number of files: 300 (including Folders)
  • Max number of folders: 50
  • USB bus power: DC 5V, max 500mA
  • Supported file formats:

  • WAV (USB only)
    • Extension: .wav, .WAV
    • Bit depth: 16-bit
    • Sampling frequency: 44.1k / 48kHz
  • MP3
    • Extension: .mp3, .MP3
    • Bit-rate: 32k to 320k bps and VBR
    • Sampling frequency: 16k / 22.05k / 24k / 32k / 44.1k / 48kHz
    • Format: MPEG1/2 Audio Layer-3
  • WMA
    • Extension: .wma, .WMA
    • Bit-rate: 32k to 320k bps and VBR
    • Sampling frequency: 8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48kHz
    • Format: WMA ver.9 standard (DRM not supported)
  • AAC (USB only)
    • Extension: .m4a, .M4A
    • Bit-rate: 8k to 320k bps and VBR
    • Sampling frequency: 8k / 11.025k / 12k / 16k / 22.05k / 24k / 32k / 44.1k / 48kHz
    • Format: MPEG4 AAC-LC (Audio stream)

    Tuner section:

  • Band: FM
  • Frequency range: FM 76.0 to 108.9MHz
  • Number of presets: FM 20
  • Audio outputs:

  • Analog LINE audio
    • Connector: RCA Pin × 1 pair
    • Impedance: 470Ω or less
    • Maximum output level: 2.0Vrms (1kHz, Full scale, 10kΩ loaded)
  • Coaxial digital audio
    • Connector: RCA Pin × 1
    • Output impedance: 75 Ω
    • Output level: 0.5Vp-p
  • Optical digital audio
    • Connector: TOS-link × 1
    • Sampling frequency: 44.1kHz
    • Bit depth: 16-bit
  • Power: AC 100 - 230V, 50/60Hz
  • Power consumption: 8W
  • Overall dimensions: 8.5"" × 2.4"" × 9.4"" / 215 × 61 × 238mm (W×H×D)
  • Weight: 4.6 lbs. / 2.1kg
  • Accessories: AC adapter (GPE-152-120125W), Power cord for AC adapter, Remote control (RC-1323), AAA batteries × 2, RCA audio cable, FM cable antenna
  • Audio performance:

  • Frequency response: 20Hz to 10kHz (–3dB, LINE out)
  • Signal-to-Noise ratio: 113dB (LINE out)
  • Total harmonic distortion: 0.005% (1kHz, LINE out)
