Unlock the Power of THX Theater-Reference Entertainment

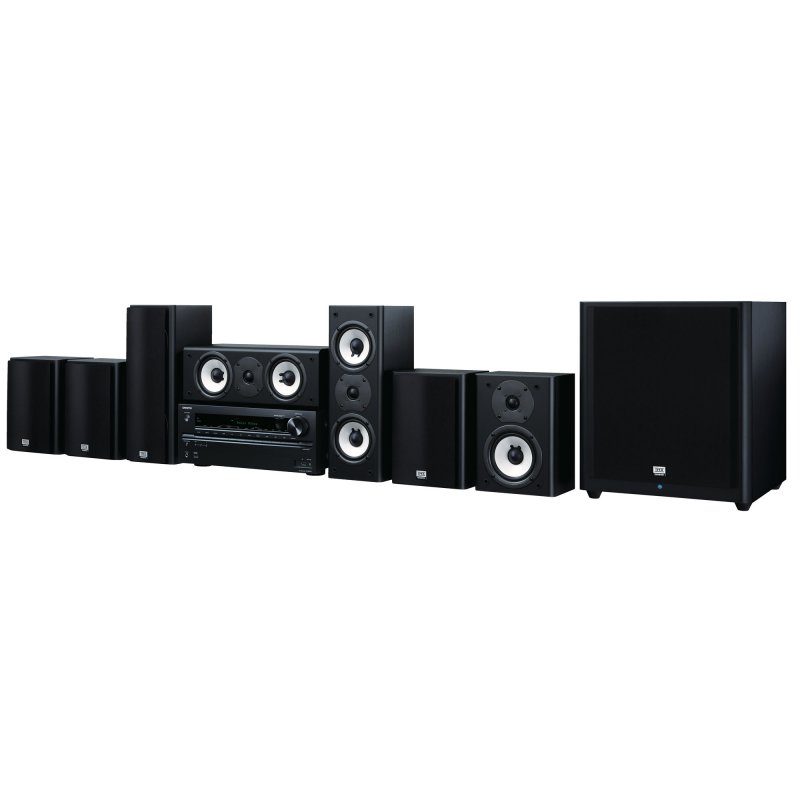

One of Onkyo's all-time bestsellers gets even better with Dolby Atmos decoding, HDMI 2.0 for 4K/60 Hz video support, Wi-Fi for Hi-Res network audio, and DSP-enhanced Bluetooth streaming. The HT-S9700THX is a convenient, easy-to-use package that's been tested and certified by THX to guarantee theater-reference volume and sound quality.
The HT-S9700THX's receiver features Dual 32-bit DSP engines to decode and deliver amazing Dolby Surround sound to its included home theater speaker package. Dolby Atmos uses special mixing techniques to layer independent “sound objects” on top of a standard multi-channel set-up.
| Amplifier Section | |
| Power Output | |
| All Channels | 115 W/Channel (6 Ohms, 1 kHz, 0.7%, 2 Channels Driven, FTC) |
| Dynamic Power (front) | 240 W (3 Ohms) 210 W (4 Ohms) 120 W (8 Ohms) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20Hz-20kHz, half power) |
| Damping Factor | 60 (Front, 1 kHz, 8 Ohms) |
| Input Sensitivity and Impedance | 200 mV/47 k-ohms (Line) |
| Output Level and Impedance | 200 mV/2.2 k- ohms (Rec out) |
| Frequency Response | 5 Hz100 kHz/ +1 dB, -3 dB (Direct mode) |
| Tone Control | ±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 106 dB (Line, IHF-A), 80 dB (Phono MM, IHF-A) |
| Speaker Impedance | 6 Ohms16 Ohms |
| Video Section | |
| Input Sensitivity/Output Level and Impedance | |
| Video | 1.0 Vp-p/75 Ohms (Component Y) 0.7 Vp-p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 Ohms (Composite) |
| Component Video Frequency Response | 5 Hz50 MHz (+ 0dB / -3 dB) |
| Tuner Section | |
| Tuning Frequency Range | |
| FM | 87.5 MHz107.9 MHz |
| AM | 530 kHz1,710 kHz |
| FM/AM Preset Memory | 40 stations |
| General | |
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 630 W |
| Standby Power Consumption | 0.1 W |
| Dimensions (W x H x D) | 17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 329 mm) |
| Weight | 22.0 lbs. (10.0 kg) |
| Speaker - Type | |
| Front/Center | 2-Way, Acoustic-Suspension |
| Surround | 2-Way, Acoustic-Suspension |
| Surround Back | 2-Way, Acoustic-Suspension |
| Subwoofer | Acoustic-Suspension, Powered |
| Speaker - Drivers | |
| Front | 5" (12 cm) cone woofer x 2 1" (2.5 cm) soft-dome tweeter |
| Center | 5" (12 cm) cone woofer x 2 1" (2.5 cm) soft-dome tweeter |
| Surround | 5 1/8" (13 cm) cone woofer 1" (2.5 cm) soft-dome tweeter |
| Surround Back | 5 1/8" (13 cm) cone woofer 1" (2.5 cm) soft-dome tweeter |
| Subwoofer | 12" (30 cm) cone |
| Speaker - Frequency Response | |
| Front/Center | 50 Hz45 kHz |
| Surround | 50 Hz45 kHz |
| Surround Back | 50 Hz45 kHz |
| Subwoofer | 20 Hz100 Hz |
| Speaker - Output Sound Pressure Level | |
| Front | 83 dB/W/m |
| Center | 83 dB/W/m |
| Surround | 81 dB/W/m |
| Surround Back | 81 dB/W/m |
| Subwoofer | - |
| Speaker - Max. Input Power | |
| Front/Center/Surround | 130 W |
| Surround Back | 130 W |
| Subwoofer | - |
| Speaker - Rated Output Power | |
| Subwoofer | 125 W (Minimum Continuous Power; 6 Ohms, 100Hz 1% FTC) |
| Speaker - Nominal Impedance | |
| Front/Center/Surround | 8 Ohms |
| Surround Back | - |
| Subwoofer | - |
| Speaker - Input Sensitivity/Impedance | |
| Subwoofer | 280 mV/20 k-ohms |
| Speaker - Dimensions (W x H x D) | |
| Front | 6 1/4" x 17 1/16" x 7 13/16" (158 x 433 x 199 mm) |
| Center | 17 1/16" x 6 1/4" x 7 13/16" (433 x 158 x 199 mm) |
| Surround | 7 7/8" x 10 13/16" x 6 5/8" (200 x 275 x 169 mm) |
| Surround Back | 7 7/8" x 10 13/16" x 6 5/8" (200 x 275 x 169 mm) |
| Subwoofer | 14 15/16" x 17 1/2" x 16 7/8" (380 x 444 x 429 mm) |
| Speaker - Weight | |
| Front | 11.7 lbs. (5.3 kg) |
| Center | 11.7 lbs. (5.3 kg) |
| Surround | 7.7 lbs. (3.5 kg) |
| Surround Back | 7.7 lbs. (3.5 kg) |
| Subwoofer | 34.2 lbs. (15.5 kg) |
| UPC Code | |
| (B) | 751398011931 |
Product Details
- Onkyo HT-S9700THX
-
Brand New : Factory Sealed
- UPC : 751398011931
- EFLC : 4065
