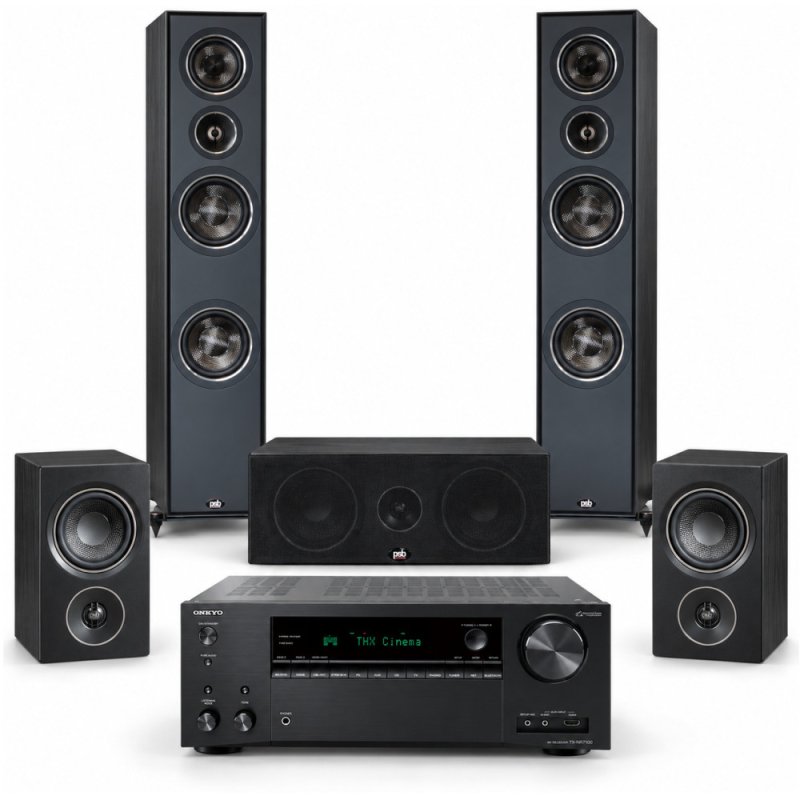

PSB Imagine T54 & Alpha C10 / P3 with Onkyo TX-NR7100 5-Channel Home Theater Speaker System Bundle BLACK

Build a complete 5-channel home theater system around the PSB Imagine T54 floorstanding speakers, Alpha C10 center channel and Alpha P3 bookshelf speakers, powered by the Onkyo TX-NR7100 9.2-channel network AV receiver. The combination provides dedicated front, center and surround speakers with the processing and amplification flexibility of Onkyo's 9-channel receiver.

The PSB Imagine T54 towers use a 3-way dual bass reflex design with a titanium dome tweeter, dedicated woven carbon fibre midrange driver and dual woven carbon fibre woofers. The Alpha C10 adds a dedicated center channel with dual 5.25-inch woofers, while the compact Alpha P3 pair provides two-way bookshelf speakers for the system.

The Onkyo TX-NR7100 supports 5.2.4-channel and 7.2.2-channel Dolby Atmos and DTS:X playback, built-in Dirac Live Room Correction, THX Certified Select sound and IMAX Enhanced. HDMI 2.1 connectivity supports 8K/60Hz, 4K/120Hz, eARC and gaming features including VRR, ALLM and QFT.

Bundle Includes

• 1 x Onkyo TX-NR7100 9.2 Channel Network AV Receiver BLACK
• 1 x PSB Imagine T54 3-Way Floorstanding Speaker (Pair) BLACK
• 1 x PSB Alpha C10 2-Way Center Channel Speaker BLACK ASH
• 1 x PSB Alpha P3 2-Way Bookshelf Speaker (Pair) BLACK ASH

Features

• PSB Imagine T54 3-way dual bass reflex floorstanding speaker pair
• T54 features dual 5.25-inch (133mm) woven carbon fibre woofers, 4-inch (102mm) woven carbon fibre midrange driver and 1-inch (25mm) titanium dome tweeter
• Low-resonance MDF T54 cabinets with extensive bracing and dual rear slot ports
• PSB Alpha C10 center channel with dual 5.25-inch (133mm) textured polypropylene woofers and 3/4-inch (19mm) black anodized aluminium dome tweeter
• PSB Alpha P3 bookshelf pair with 4-inch (102mm) textured polypropylene woofers and 3/4-inch (19mm) black anodized aluminium dome tweeters
• Onkyo TX-NR7100 9.2-channel network AV receiver
• 220W/ch at 6 ohms, 1kHz, 10% THD, one channel driven; 100W/ch at 8 ohms, 20Hz-20kHz, 0.08% THD, two channels driven
• 5.2.4-channel and 7.2.2-channel Dolby Atmos and DTS:X playback
• Built-in Dirac Live Room Correction from 20Hz to 20kHz
• THX Certified Select and IMAX Enhanced
• HDMI 2.1 with 8K/60Hz and 4K/120Hz support
• VRR, ALLM, QFT, DSC, QMS and eARC support
• Works with Sonos, Chromecast built-in, AirPlay 2 and DTS Play-Fi
• Spotify, Amazon Music HD, Pandora, TIDAL, Deezer and TuneIn streaming services
• 5GHz/2.4GHz dual-band Wi-Fi and bi-directional Bluetooth
• Discrete Zone 2 HDMI switching

Specifications

Onkyo TX-NR7100 9.2 Channel Network AV Receiver

• Power Output: 220W/ch at 6 ohms, 1kHz, 10% THD, one channel driven; 100W/ch at 8 ohms, 20Hz-20kHz, 0.08% THD, two channels driven FTC
• Dynamic Power: 250W at 3 ohms, 220W at 4 ohms, 130W at 8 ohms
• THD+N: 0.08% at 20Hz-20kHz, half power
• Input Sensitivity / Impedance: 200mV RMS / 47k-ohms Line; 3.5mV RMS / 47k-ohms Phono MM
• Subwoofer Pre-Out: 1V RMS / 470 ohms
• Zone 2 / Zone B Line-Out: 200mV RMS / 470 ohms
• Frequency Response: 10Hz-100kHz, +1dB/-3dB Direct/Pure Audio
• Signal-to-Noise Ratio: 106dB Line IHF-A; 80dB Phono IHF-A
• Speaker Impedance: 4-16 ohms
• Dirac Live Room Correction: 20Hz-20kHz
• Surround Playback: 5.2.4-channel / 7.2.2-channel Dolby Atmos and DTS:X
• Wireless: 5GHz/2.4GHz dual-band Wi-Fi and bi-directional Bluetooth
• FM: 87.5MHz-107.9MHz
• AM: 530kHz-1,710kHz
• FM/AM Presets: 40 stations
• Power Supply: AC 120V, 60Hz
• Operating Power Consumption: 750W
• Idle Power Consumption: 75W
• Standby Power Consumption: 0.1W
• Dimensions (W x H x D): 17 1/8 x 6 13/16 x 14 15/16 inches (435 x 173.5 x 379.5 mm)
• Weight: 22.9 lb (10.4 kg)

PSB Imagine T54 Floorstanding Speakers

• Design: 3-way dual bass reflex with individual woofer chambers and dual rear slot ports
• Frequency Response On Axis +/-3dB: 35-23,000Hz
• Frequency Response On Axis +/-1.5dB: 48-20,000Hz
• Frequency Response Off Axis at 30 degrees +/-1.5dB: 48-10,000Hz
• LF Cutoff -10dB: 28Hz
• Sensitivity: 87dB anechoic; 89dB listening room
• Nominal Impedance: 8 ohms
• Minimum Impedance: 4 ohms
• Recommended Input Power: 20-150 watts
• Program Power: 200 watts
• Tweeter: 1-inch (25mm) titanium dome with ferrofluid and neodymium magnet
• Midrange: 4-inch (102mm) woven carbon fibre cone with rubber surround
• Woofers: 2 x 5.25-inch (133mm) woven carbon fibre cones with rubber surrounds
• Crossovers: 2500Hz LR4 and 500Hz B3
• Dimensions (W x H x D): 6 3/4 x 32 11/16 x 11 7/8 inches (171 x 830 x 302 mm)
• Weight: 31 lb (14.1 kg) each

PSB Alpha C10 Center Channel Speaker

• Frequency Response On Axis +/-3dB: 55-21,000Hz
• Frequency Response On Axis +/-1.5dB: 65-20,000Hz
• Frequency Response Off Axis at 30 degrees +/-1.5dB: 65-10,000Hz
• LF Cutoff -10dB: 37Hz
• Sensitivity: 88dB anechoic; 90dB listening room
• Nominal Impedance: 8 ohms
• Minimum Impedance: 6 ohms
• Recommended Input Power: 15-120 watts
• Program Power: 60 watts
• Tweeter: 3/4-inch (19mm) black anodized aluminium dome with ferrofluid and neodymium magnet
• Woofers: 2 x 5.25-inch (133mm) textured polypropylene cones with rubber surrounds
• Crossover: 2,500Hz LR4
• Internal Volume: 0.44 cu ft (12.5L)
• Design: Tuned-port bass reflex with 2-inch (49mm) rear port
• Dimensions (W x H x D): 17 3/4 x 6 3/4 x 9 3/8 inches (450 x 170 x 243 mm)
• Weight: 17 lb (7.7 kg); supplied product data also lists 19.9 lb (9.0 kg)

PSB Alpha P3 Bookshelf Speakers

• Frequency Response On Axis +/-3dB: 57-21,000Hz
• Frequency Response On Axis +/-1.5dB: 67-20,000Hz
• Frequency Response Off Axis at 30 degrees +/-1.5dB: 67-10,000Hz
• LF Cutoff -10dB: 43Hz
• Sensitivity: 85dB anechoic; 87dB listening room
• Nominal Impedance: 8 ohms
• Minimum Impedance: 4 ohms
• Recommended Input Power: 10-80 watts
• Program Power: 60 watts
• Tweeter: 3/4-inch (19mm) black anodized aluminium dome with ferrofluid and neodymium magnet
• Woofer: 4-inch (102mm) textured polypropylene cone with rubber surround
• Crossover: 3,000Hz L4
• Internal Volume: 0.11 cu ft (3.1L)
• Design: Tuned-port bass reflex with 1 3/8-inch (35mm) rear port
• Dimensions (W x H x D): 5 1/8 x 8 5/8 x 6 7/8 inches (130 x 220 x 174 mm) each
• Weight: 4.9 lb (2.2 kg) each; 11.45 lb (5.2 kg) per pair

What's in the Box

• 1 x Onkyo TX-NR7100 9.2 Channel Network AV Receiver BLACK
• 1 x PSB Imagine T54 3-Way Floorstanding Speaker (Pair) BLACK
• 1 x PSB Alpha C10 2-Way Center Channel Speaker BLACK ASH
• 1 x PSB Alpha P3 2-Way Bookshelf Speaker (Pair) BLACK ASH
