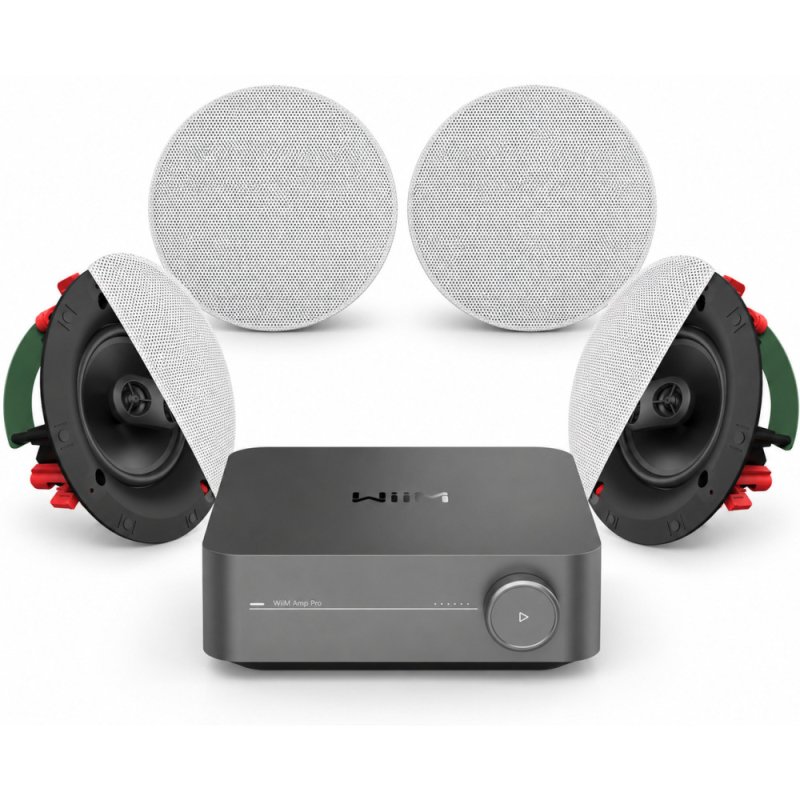

WiiM Amp PRO Streaming Amplifier & 4x Klipsch CS16CSM In-Ceiling Speaker Bundle SPACE GRAY

Build a streamlined installed audio system with the WiiM Amp PRO streaming amplifier and four Klipsch CS16CSM in-ceiling speakers. The compact WiiM Amp PRO provides network streaming, multiple audio inputs and amplified speaker outputs, while the Klipsch speakers provide an architectural in-ceiling solution.

The WiiM Amp PRO delivers 60 Watts per channel at 8 ohms and 120 Watts per channel at 4 ohms. It supports streaming through the WiiM Home app along with Chromecast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA and Roon Ready.

Each Klipsch CS16CSM features a 6.5-inch dual voice coil polymer woofer, dual polymer dome tweeters, a bezel-free magnetic grille and Klipsch's Patent-Pending SkyHook™ Tool-Free Installation System.

Bundle Includes

• 1 x WiiM Amp PRO Versatile Streaming Amplifier SPACE GRAY
• 4 x Klipsch CS16CSM In-Ceiling Speaker 6.5" Polymer Woofer

Features

• WiiM Amp PRO delivers 60 Watts per channel at 8 ohms and 120 Watts per channel at 4 ohms
• HDMI ARC, optical, line and USB disk audio inputs
• Passive speaker terminals, subwoofer output and USB audio output
• 2.4 GHz, 5 GHz and 6 GHz triple-band network support plus 10/100 Mbps LAN
• Bluetooth 5.3 with LE Audio support
• 10-band Graphic EQ, 10-band Parametric EQ and 26 Preset EQ settings
• Chromecast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA and Roon Ready streaming support
• Each Klipsch CS16CSM features a 6.5-inch polymer woofer and dual polymer tweeters
• Klipsch Patent-Pending SkyHook™ Tool-Free Installation System
• Bezel-Free Magnetic Grille

WiiM Amp PRO Specifications

• Dimensions: 217 x 190 x 66 mm (8.54 x 7.48 x 2.60 in)
• Weight: 2.08 kg (4.59 lbs)
• Finish: Aluminum
• Controls: Volume knob, play/pause, and more
• LED: Status, Volume
• Power: 60 Watts/channel at 8 ohms; 120 Watts/channel at 4 ohms
• Speaker Output: 8 ohms, 6 ohms, 4 ohms; 2 pairs 8 ohms in parallel; minimum impedance 2.67 ohms
• Home Theatre Audio Formats: Stereo PCM, Dolby Digital; DTS not supported
• Audio Inputs: HDMI ARC, Optical, Line, USB Disk
• Audio Outputs: Passive Speaker Terminal, Subwoofer Output, USB Audio Out
• Audio Output Quality: SNR 120 dB; THD+N 0.0005% (-105 dB)
• Audio Formats: MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
• EQ: 10-band Graphic EQ, 10-band Parametric EQ, 26 Preset EQ
• Subwoofer Output: Auto-detecting cable insert, user-adjustable 30-250 Hz crossover
• Power Supply: 100-240V 50/60Hz AC Power
• Network: 2.4 GHz, 5 GHz, 6 GHz triple bands, 10/100 Mbps LAN
• Bluetooth: BT 5.3, LE Audio support, A2DP Sink and Source, AVRCP, BLE HID
• Supported Streaming Protocols: Chromecast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA, Roon Ready

Klipsch CS16CSM Specifications - Each Speaker

• Frequency Range: 65Hz - 20kHz +/- 3dB
• High Frequency Driver: Dual .75" (1.9 cm) Polymer Dome Tweeters
• Low Frequency Driver: 6.5" (16.51 cm) Dual Voice Coil Polymer Woofer
• Sensitivity: 91 dB @ 2.83V / 1m
• Power Handling: 40W RMS / 160W Peak
• Impedance: 8 Ohm Compatible
• Enclosure Type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product Dimensions: 9.2" W x 9.2" H x 4.5" D (23.3 cm W x 23.3 cm H x 11.3 cm D)
• Mounting Depth: 4.34" (11.03 cm)
• Cutout Dimensions: 8.3" (21.1 cm)
• Product Weight: 7 lbs (3.18 kg)
• Included: Round Magnetic Grille
• Built From: 2017

What's in the Box

• 1 x WiiM Amp PRO Versatile Streaming Amplifier SPACE GRAY
• 4 x Klipsch CS16CSM In-Ceiling Speaker 6.5" Polymer Woofer
