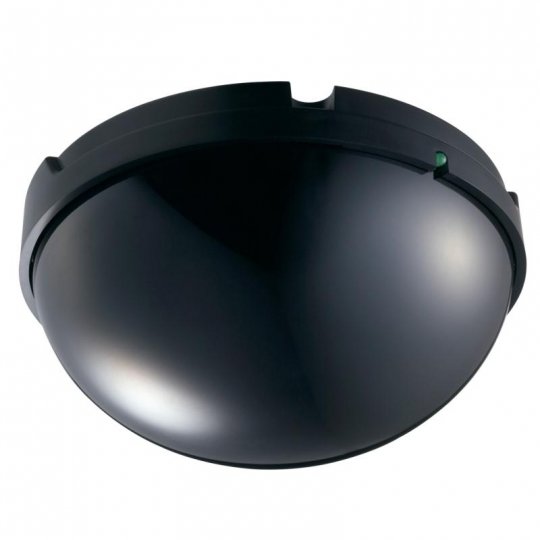

The IR-510R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a ceiling.

Specifications:

• Power Source: 24 V DC (supplied from the IR-702T)
• Current Consumption: Max. 60 mA

Infrared Detector:

• Wavelength: 870 nm
• Carrier Frequency: Channel A: 3.100 MHz, Channel B: 3.350 MHz
• Communication Area: Approx. 7 m (22.97 ft) in radius from the point underneath the unit, (Ceiling height: 2.5 - 3.0 m (8.2 - 9.84 ft), in a space without any obstacle)
• Connection Terminal: 75 Ω, BNC jack
• Operating Temperature: 0 °C to +40 °C (32 °F to 104 °F)
• Operating Humidity: 30 % to 85 %RH (no condensation)
• Finish: Filter section: Polycarbonate, optical cut filter, Base: ABS resin, black
• Dimensions: φ120 x 71.3 (H) mm (φ4.72" x 2.81")
• Weight: 205 g (0.45 lb) (unit only)
• Accessory: Mounting bracket ...1
