TOA WS-5325U H01US Uni Lavalier Microphone Kit

Secure One-Page Checkout

$699.99

TOA Authorised
TOA WS-5325U H01US Special Order 699.99
UPC : TBD 5% Price Promise
Warranty : 1yr Manufacturer Special Order Return Policy
Shipping : FREE in Canada Shipping in approx 3 Days




To purchase now by phone, call toll-free: 1-888-248-4969. Item: 6442

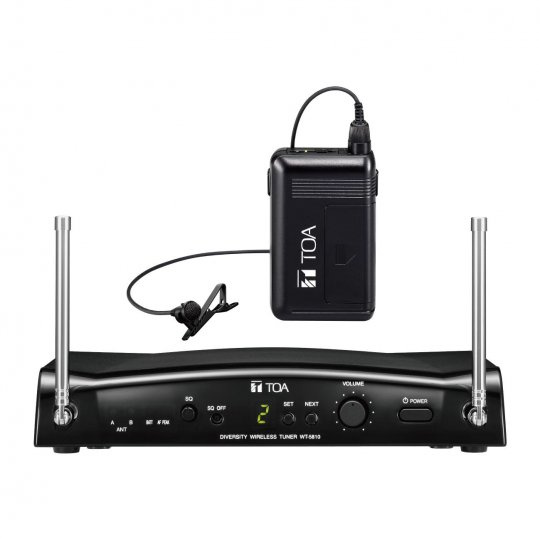

The WS-5325U includes a wireless transmitter WM-5325, a lavalier microphone YP-M5300, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The YP-M5300 employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.

Specifications:

  • Product Composition: Wireless transmitter WM-5325 x 1, Lavalier microphone YP-M5300 x 1, Diversity wireless tuner WT-5810 x 1
  • Frequency Range: 576 - 865 MHz (*1), UHF
  • Tone Frequency: 32.768 kHz
  • Operating Temperature: -10 ° Cto +50 ° C(14 °F to 122 °F)
  • Accessory: AC adapter (*2) x 1, Screw driver x 1, Strage case x 1, Neck strap x 1

Wireless Transmitter:

  • Modulation: Frequency modulation
  • Channel Selectable: 64 channels (the number of channels may differ from country to country)
  • RF Carrier Power: Less than 50 mW (Factory preset 10 mW ERP)
  • Oscillator: PLL synthesized
  • Maximum Input Level: -14 dB to -29 dB (*3) (Audio level control: Min. to Max.)
  • Battery: WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery
  • Battery Life: Approx. 13 h (when the WB-2000 rechargeable battery is used), Approx. 10 h (when the alkaline battery is used)
  • Indicator: Power/Battery lamps
  • Antenna: Built-in type
  • Dimensions: 62 (W) x 102.5 (H) x 23 (D) mm (2.44 x 4.04" x 0.91")
  • Weight: 90 g (0.2 lb) (with battery)

Lavalier Microphone:

  • Microphone Element: Electret condenser type: Unidirectional
  • Sensitivity: -63 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
  • Cord Length: 1.3 m (4.27 ft)
  • Weight: 20 g (0.71 oz) (cable included)

Diversity Wireless Tuner

  • Power Source: AC mains (supplied AC adapter must be used)
  • Power Consumption: 130 mA (12 V DC)
  • Channel Selectable: 16 channels
  • Receiving System: Double super-heterodyne
  • Diversity System: Space diversity
  • Mixing Output: MIC: -60 dB (*3), 600 Ω, balanced, XLR-3-32 type connector, LINE: -20 dB (*3), 600 Ω, unbalanced, phone jack
  • Mixing Input: -20 dB (*3), 10 kΩ, unbalanced, phone jack
  • Antenna: Whip antenna
  • Receiving Sensitivity: 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
  • Squelch Sensitivity: 16 - 40 dBμV variable
  • Squelch System: Using together of noise SQ, carrier SQ and tone SQ
  • Indicator: ANT A/B, Audio (peak), Battery alarm, Channel number
  • Channel Check: Usable frequencies scanning
  • Signal to Noise Ratio: 104 dB or more (A-weight, unbalanced output)
  • Harmonic Distortion: 1 % or less (typical)
  • Frequency Response: 100 Hz - 15 kHz, ±3 dB
  • Dimensions: 206 (W) x 40.6 (H) x 152.7 (D) mm (8.11 x 1.6" x 6.01") (excluding antenna)
  • Weight: 590 g (1.3 lb)
