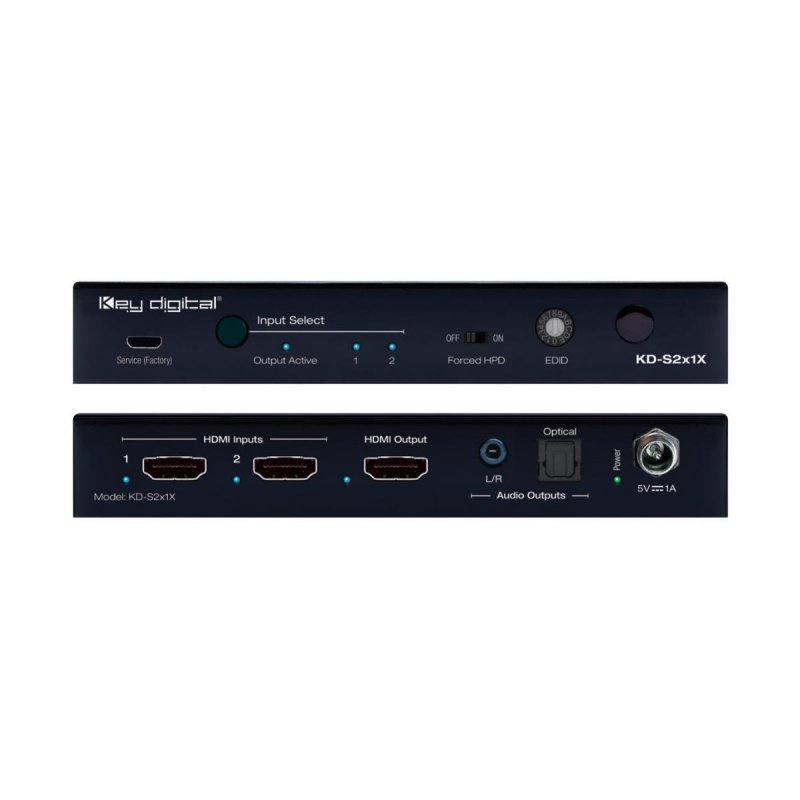

Key Digital KDS2X1X 2x1 4K HDMI Switcher
Brand New · Factory Sealed · Key Digital Authorized Dealer
$215.99
Free Canada-wide Shipping
•
Order Now : Ships Mon
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Low Stock : Order Soon
- Free shipping
- 1yr Manufacturer Warranty
- Pickup available: Richmond Hill, ON
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Features:
- HDMI Switching: 2/4 HDMI sources to 1 HDMI output/display
- Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
- Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- Audio De-embedding: Audio of the selected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
- Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
- Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby® Atmos
- CEC Pass-thru: From connected display to selected HDMI source
- Control: Front panel buttons/LEDs, Optical IR
- Control System Support: Compass Control® Pro ready. Fully controllable by all IR supported control systems
Specifications:
Technical:
- Input (Each): HDMI Connector, Type A, 19 Pin Female
- Output: HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gb/s
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: KD-S2x1X - 4.3" x 1.1" x 2.8"
- Product Weight: KD-S2x1X - 0.5 lb
What's in the box:
- Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V1ASC
- Mounting Brackets: 2 L-shaped
- IR Remote: KDRMSWPROK
Product Details
- Key Digital KDS2X1X
-
Brand New : Factory Sealed
- UPC : 815996021027
- EFLC : 11954
- Write a review
Warranty
One Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Key Digital Authorized
Returns
Easy Returns
- 14-day return window on eligible items
- Full refund issued in accordance with our return policy
