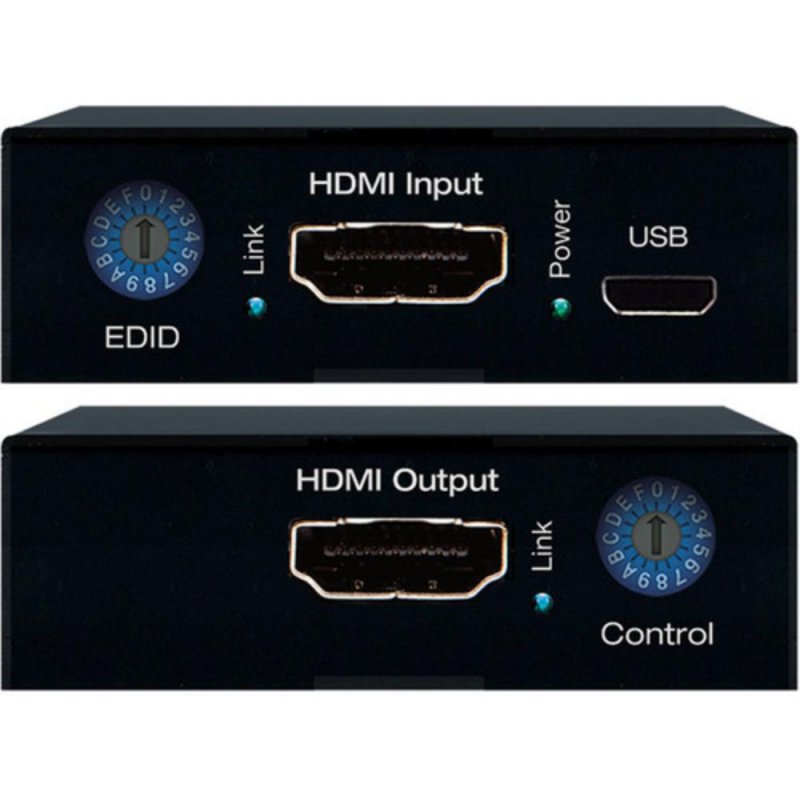

Key Digital KD-FIX418A 4K/18G HDMI Fixer
Brand New · Factory Sealed · Key Digital Authorized Dealer
$369.99
Free Canada-wide Shipping
•
Ships in 2 to 4 Days
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Available
- Free shipping
- 1yr Manufacturer Warranty
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Features:
- HDMI Correction: Resolves common HDMI integration obstacles related to Hot Plug Detection, EDID handshaking, HDCP authentication, and bandwidth
- Audio De-embedding: HDMI input audio is de-embedded on an analog 3.5mm stereo and digital PCM connector
- 18G Down-Convert: Incoming 18Gbps bandwidth HDMI signals may be downconverted for integration with existing 10.2Gbps systems/infrastructure
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
- Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, Hot Plug management, and EDID control handshake
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby Atmos
- ARC Pass-thru: From connected ARC supported display to connected ARC supported HDMI source
- CEC Pass-thru: From connected display to selected HDMI source
- Control: RS-232 control and connectivity status
Specifications:
Technical:
- HDMI Input (Each): HDMI Connector, Type A, 19 Pin Female
- HDMI Output: HDMI Connector, Type A, 19 Pin Female
- HDMI Bandwidth: TMDS bandwidth 18Gbps
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- 3.5mm Stereo Audio Output: Line level audio on TRS connector. Drives 1 VRMS line audio output with a sampling rate of 48kHz
- Analog Audio Max Output Level: 4dBu on 150kΩ, DC coupling
- Digital PCM Audio Output: RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
- PCM Max Output Level: 1Vpp on 75Ω, DC coupling
- Audio Bandwidth: 20Hz to 20kHz @ 0dBu
- TND + Noise: 0.33% @0dBu @ 1kHz
- PCM Max Input Level: 1Vpp on 75Ω, AC coupling
- Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
General:
- Regulation: CE, RoHS, WEEE, EAC
- Enclosure: Black metal
- Power Supply: USB to micro USB cable (power adapter not included)
- Product: 2.17" x 3.085" x 0.68"
- Weight: 4 oz
What's in the box:
- Power Supply (qty 1) 5V/1A, 5W, wall type
- Mounting: 2x L-bracket
Product Details
- Key Digital KD-FIX418A
-
Brand New : Factory Sealed
- UPC : 815996021041
- EFLC : 11946
- Write a review
Warranty
One Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Key Digital Authorized
Returns
Easy Returns
- 14-day return window on eligible items
- Full refund issued in accordance with our return policy
