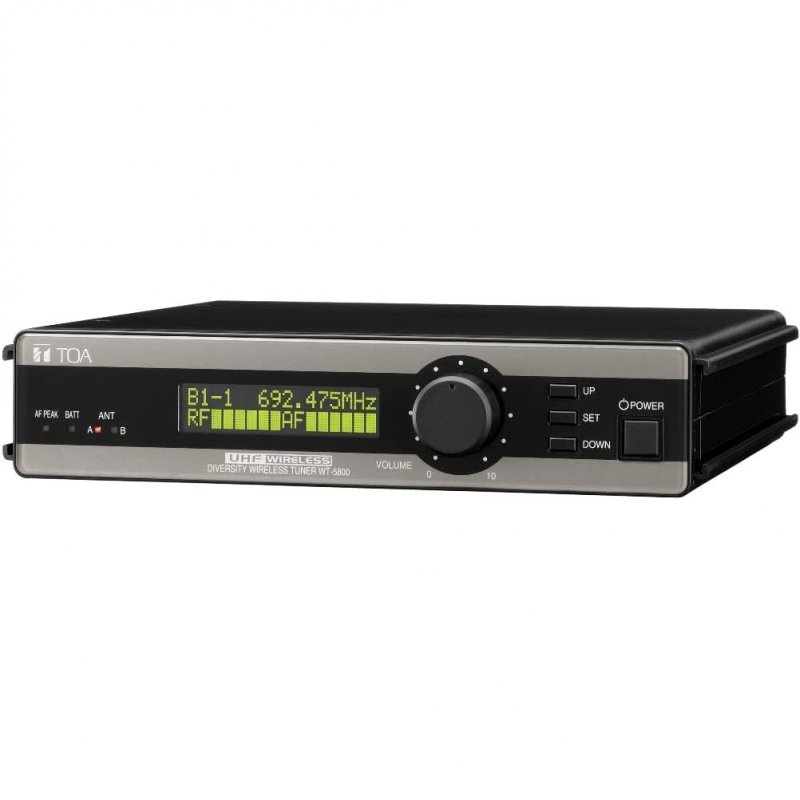

The TOA WT-5805 Wireless Tuner is a high-performance receiver designed for seamless, interference-free audio transmission. Featuring TOA’s advanced space diversity technology, it ensures a stable signal by intelligently selecting the antenna with the best reception. With 64 selectable channels and a range of professional features, the WT-5805 is ideal for demanding live performances, presentations, and public address applications.
Reliable Space Diversity Technology
The WT-5805 employs space diversity reception to minimize signal dropout and fading. By comparing the signal-to-noise ratio from two separate antennas, it amplifies the stronger signal while attenuating the weaker one, ensuring a clear and constant output.
Advanced Frequency Management
With 64 selectable UHF channels and a frequency range of 576–932 MHz, the WT-5805 offers flexibility in tuning to interference-free frequencies. The usable frequency scanning and vacant channel search functions make setup quick and efficient.
Exceptional Audio Clarity
Equipped with compander circuitry to reduce ambient noise and enhance sound quality, this wireless tuner delivers crisp, distortion-free audio. The integrated auto-mixing input function further optimizes sound balance, making it an excellent choice for multi-microphone setups.
Comprehensive Display and Controls
The unit features a two-line LCD display for easy monitoring of settings, along with a 6-point audio level meter for precise microphone sensitivity adjustment. Additional indicators provide real-time feedback on RF signal strength, antenna reception, and battery status.
Compact and Versatile Design
With a half-rack size body and whip antennas for extended range, the WT-5805 fits seamlessly into professional audio setups. The unit also includes a squelch function (carrier, noise, tone) to suppress unwanted noise and interference.
Features
- 64 Selectable UHF Channels for interference-free operation
- TOA Space Diversity Technology ensures signal stability
- Double Super-Heterodyne Receiving System for precise signal processing
- Two-Line LCD Display for easy monitoring
- Auto-Mixing Input Function for seamless audio integration
- Squelch Function (Carrier, Noise, Tone) to eliminate unwanted noise
- Compact Half-Rack Design for space-saving installation
- 6-Point Audio Level Meter for microphone sensitivity adjustment
- Compander Circuitry to minimize ambient noise
- Dual Whip Antennas for extended reception range
- Low-Battery Indicator for real-time microphone battery status
Specifications
- Power Consumption: 200 mA (12V DC)
- Receiving Frequency: 576–932 MHz, UHF
- Channel Selectable: 64 Selectable Frequencies
- Diversity System: Space Diversity
- Mixing Output:
- MIC: –60 dB, 600Ω, balanced, XLR-3-31 connector
- LINE: –20 dB, 600Ω, unbalanced, phone jack
- Mixing Input: –20 dB, 10 kΩ, unbalanced, phone jack
- Antenna Input: 75Ω, BNC (phantom powering for antenna: 9V DC, 30 mA max.)
- Receiving Sensitivity: 90 dB or more, S/N ratio (20 dBμV input, 40 kHz deviation)
- Squelch Sensitivity: 18–40 dBμV (variable)
- Squelch System: Carrier SQ, Noise SQ, and Tone SQ
- Indicators:
- Audio (6-step meter)
- RF (6-step meter)
- ANT A/B
- Audio Peak
- Battery Alarm
- Channel Check: Usable Frequencies Scanning
- S/N Ratio: 110 dB or more (A-weight, unbalanced output)
- Harmonic Distortion: 1% or less (typical)
- Frequency Response: 100 – 15 kHz, ±3 dB
- Dimensions: 210(W) × 44(H) × 205.1(D) mm (8.27" × 1.73" × 8.07")
- Weight: 700 g (1.54 lb)
Product Details
- TOA WT-5805 H01US
-
Brand New : Factory Sealed
- UPC : 785249834868
- EFLC : 14653
