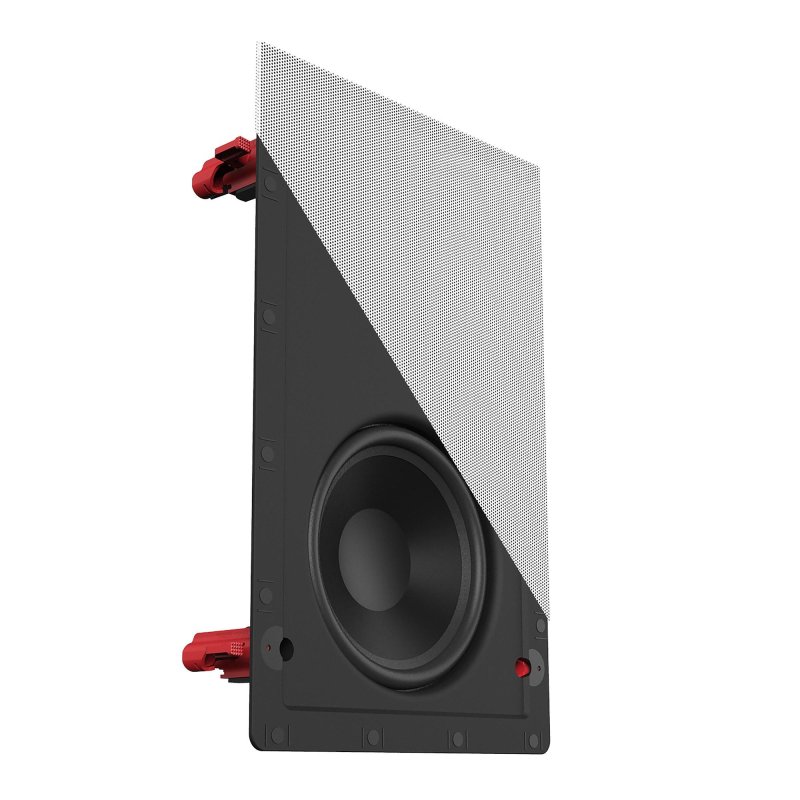

Klipsch DS-160W 6.5-Inch In-Wall Speaker
The Klipsch DS-160W is a high-performance in-wall speaker designed to deliver dynamic, detailed sound using proven Klipsch acoustic technologies. Ideal for distributed audio, home theater, or 2-channel systems, it combines efficient horn-loaded performance with a sleek, low-profile design that blends seamlessly into any room.
Featuring a 6.5-inch polypropylene woofer and a 1-inch silk dome tweeter mated to a round Tractrix® horn, the DS-160W provides clear highs, rich midrange, and balanced bass with wide dispersion and low distortion.
Features
- 6.5-inch polypropylene woofer for smooth, balanced low-frequency response
- 1-inch silk dome tweeter with round Tractrix® horn for clear, detailed highs
- Wide 100° coverage for consistent sound throughout the room
- Horn-loaded technology for increased efficiency and reduced distortion
- Patent-pending Skyhook™ tool-free installation system
- Bezel-free magnetic grille for a clean, modern appearance
- Paintable grille to match any décor
- Ideal for distributed audio, home theater, or stereo applications
Horn-Loaded Performance
Utilizing Klipsch’s signature Tractrix® horn technology, the DS-160W delivers enhanced efficiency and precise high-frequency reproduction. This design ensures clear, dynamic sound with controlled dispersion for optimal listening throughout the space.
Skyhook™ Tool-Free Installation
The exclusive Skyhook™ installation system automatically engages the mounting dogs when the speaker is inserted into the cutout, applying consistent clamping force. This eliminates the risk of overtightening and reduces installation time by up to 75%.
Bezel-Free Magnetic Grille
The low-profile magnetic grille provides a seamless, modern look while allowing for easy removal and painting to match any room décor.
Specifications
Audio
- Frequency Response: 77Hz – 20kHz ±3dB
- Power Handling: 50 W RMS / 200 W Peak
- Sensitivity: 91 dB @ 2.83V / 1m
- Impedance: 8 Ohms
- Coverage Angle: 100°
Drivers
- High Frequency Driver: 1-Inch Silk Dome Tweeter with Tractrix® Horn
- Low Frequency Driver: 6.5-Inch Polypropylene Woofer
Construction
- Enclosure Material/Type: ABS / Infinite Baffle
- Finish: Black Baffle/Frame with White Paintable Grille
Dimensions & Installation
- Product Dimensions: 9.0" × 14.1" × 3.9"
- Mounting Depth: 3.78"
- Cutout Dimensions: 13" × 8"
- Product Weight: 7.2 lb
Included in Box
- Magnetic Grille
Additional Information
- Installation Kit: IK-650-W (Sold Separately)
- Fire Rated Enclosure: ME-650-W (Sold Separately)
- Year Introduced: 2017
Product Details
- Klipsch DS-160W
-
Brand New : Factory Sealed
- UPC : 743878042375
- EFLC : 16316
- Write a review
Warranty
Five Year Speaker Warranty
- 5yr Workmanship Coverage
- 2 Year Electronics Coverage
(active subwoofer amplifier) - Canada-wide Coverage
- Klipsch Authorized
Returns
Easy Returns
- 30-day return window on eligible items
- Full refund issued in accordance with our return policy
