Details
Engineered for DJs

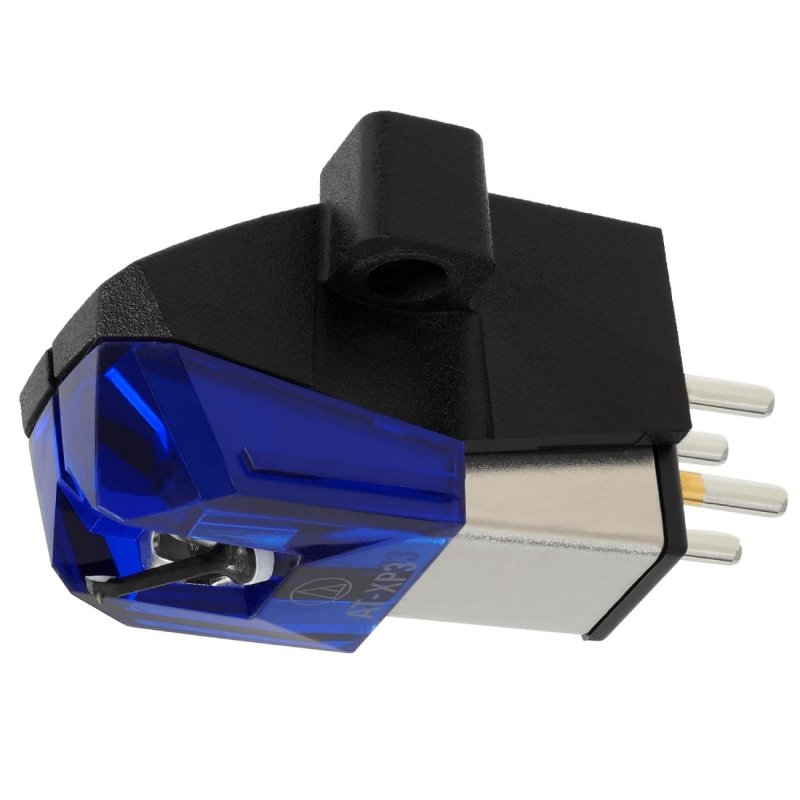

The Audio-Technica AT-XP3 cartridge is crafted to meet the demands of professional DJs. With its highly-rigid polyphenylene sulfide (PPS) and glass fiber construction, the cartridge is built for durability and precise performance. It features a tracking force range of 2 to 4 grams, with 3 grams as the standard setting, and delivers a robust output level of 5.5 mV. The 0.6 mil conical bonded stylus ensures reliable tracking and excellent sound fidelity.
Enhanced Performance and Visibility
The AT-XP3 is designed with a focus on visibility and accuracy. Its cartridge design provides maximum visibility of the stylus tip, allowing for better monitoring during use. The carbon fiber-reinforced ABS cantilever and nylon wire suspension contribute to its precise tracking capabilities. Compatible with any XP or VM95 Series replacement stylus, the AT-XP3 offers flexibility and options for different budgets and needs.
Features
Stylus and Construction
Equipped with a 0.6 mil conical bonded stylus tip, the AT-XP3 is designed for excellent tracking and high-fidelity sound.
High-Level Output
The cartridge provides a powerful output level of 5.5 mV, ensuring robust and clear audio performance.
Durable Materials
Constructed from a highly-rigid polyphenylene sulfide (PPS) and glass fiber body, it features a carbon fiber-reinforced ABS cantilever and nylon wire suspension for durable and precise tracking.
Design and Compatibility
The design allows for maximum visibility of the stylus tip, and the cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide range of options for different applications and budgets.
Tracking and Channel Separation
The AT-XP3 offers great tracking and channel separation, ensuring high-fidelity sound reproduction.
Specifications
- Frequency Response: 20-18,000 Hz
- Channel Separation: 20 dB at 1 kHz
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 6.7 k ohms at 1 kHz
- Coil Inductance: 550 mH at 1 kHz
- Output Voltage: 5.5 mV at 1 kHz, 5 cm/sec.
- Output Channel Balance: 2.0 dB at 1 kHz
- Stylus Shape: 0.6 mil conical
- Cantilever: Carbon fiber-reinforced ABS
- Static Compliance: 20 x 10-6 cm/dyne
- Dynamic Compliance: 6.0 x 10-6 cm/dyne at 100 Hz
- Mounting: Half-inch
- Cartridge Weight: 6.2 g
- Dimensions: 17.2 mm (0.68 in) H × 17.8 mm (0.67 in) W × 28.3 mm (1.20 in) D
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
- Model: AT-XP3
- Mounting Feature: Half-inch mount
- Recommended Load Capacitance: 100 to 200 pF
- Replacement Stylus: ATN-XP3
- Stylus Size: 0.6 mil
- Weight: 6.2 g (0.22 oz)
