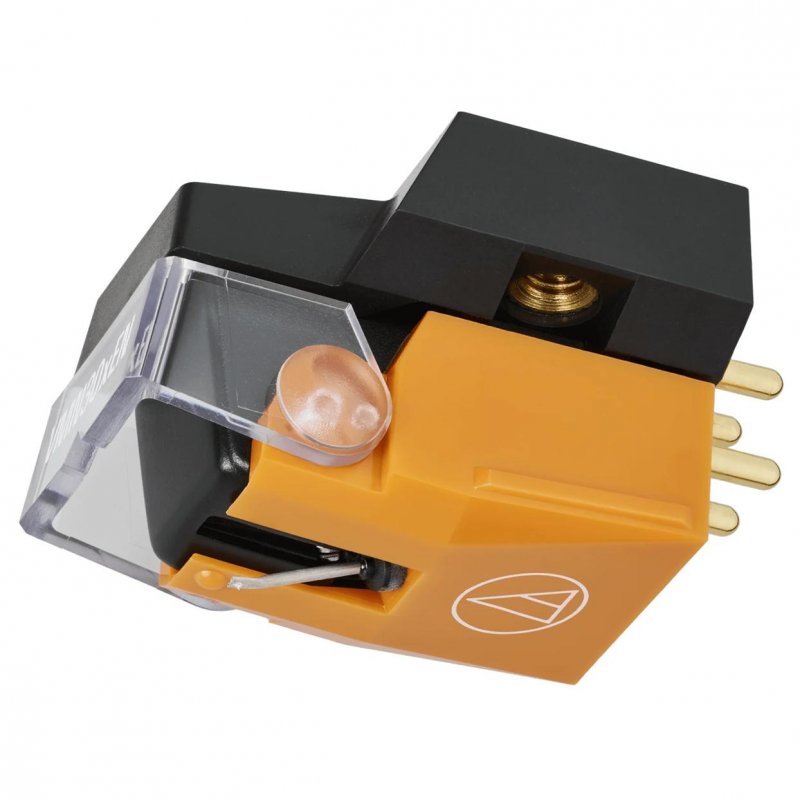

Audio-Technica AT-VM530xEN Dual Moving Magnet Phono Cartridge
The Audio-Technica AT-VM530xEN Dual Moving Magnet phono cartridge is engineered to deliver greater realism, precision, and musical detail from your vinyl collection. Part of the AT-VMx series, it features a lightweight nude elliptical stylus (0.3 × 0.7 mil) that tracks record grooves with higher accuracy than bonded designs, extending frequency response while reducing distortion and record wear.
Like all AT-VMx cartridges, the AT-VM530xEN mirrors the geometry of professional record-cutting heads using a 90° V-shaped generator layout. This design enhances tracking accuracy, channel separation, and stereo clarity. Optimized PCUHD copper coils improve transient speed and tonal nuance, while the low-resonance polymer housing and aluminum cantilever ensure stable, consistent playback across a wide range of musical material.
Features
- Dual Moving Magnet design for precise stereo reproduction
- Nude elliptical stylus (0.3 × 0.7 mil) for improved tracking and lower distortion
- 90° V-shaped generator mirrors professional cutting head geometry
- Optimized PCUHD copper coils for enhanced transient response
- Reduced coil turns for faster, more accurate signal response
- Center shield plate reduces crosstalk and preserves stereo imaging
- Durable low-resonance polymer cartridge body
- Aluminum cantilever for stable and accurate groove tracking
- V-cut flip-up stylus protector aids cueing and installation
- Threaded mounting holes allow easy installation without nuts
- Compatible with all stereo AT-VMx replacement styli
- Fits standard 1/2-inch mount turntable headshells
Specifications
Cartridge
- Type: Dual Moving Magnet
- Frequency response: 20 Hz – 25 kHz
- Output voltage: 3.2 mV (1 kHz, 5 cm/sec.)
- Channel separation: 25 dB (1 kHz)
- Output balance: 1.5 dB (1 kHz)
- Tracking force: 1.8 – 2.2 g (2.0 g standard)
- Vertical tracking angle: 20°
Electrical
- Coil impedance: 3.2 kΩ (1 kHz)
- DC resistance: 750 Ω
- Recommended load impedance: 47 kΩ
- Recommended load capacitance: 150 – 250 pF
- Coil inductance: 480 mH (1 kHz)
Stylus & Compliance
- Stylus type: Nude elliptical
- Stylus radius: 0.3 × 0.7 mil
- Static compliance: 23 × 10⁻⁶ cm/dyne
- Dynamic compliance: 7 × 10⁻⁶ cm/dyne (100 Hz)
Physical
- Dimensions: 28 × 18.3 × 17.6 mm
- Weight: 7.2 g
- Threaded mounting hole: M2.6 × 2
Product Details
- Audio-Technica AT-VM530xEN
-
Brand New : Factory Sealed
- EAN : 4961310163259
- EFLC : 15415
