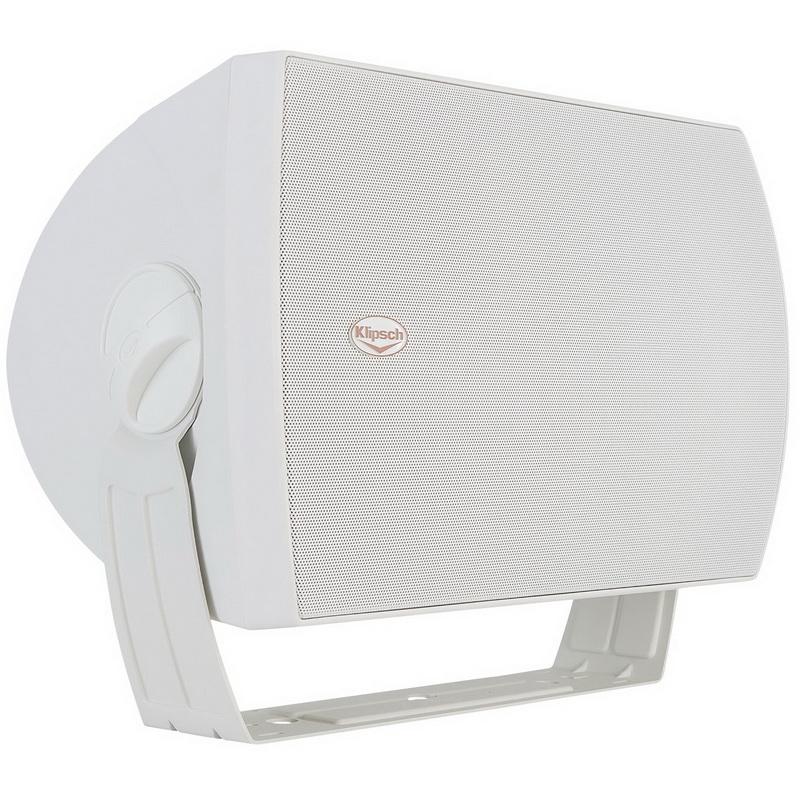

Perfect for foreground or background distributed sound applications in indoor or outdoor residential commercial or recreational environments, the compact full-range 70-volt CA-800T loudspeaker was designed for those who know better than to expect mediocre output.

Features:

• Paintable UV-resistant ABS enclosure with rustproof aluminum grille
• Very high sensitivity and power handling
• Built-in 60-watt 70V/100V multi-tap transformer with 8-ohm bypass
• 90 degree x 90 degree Tractrix Horn tweeter for clean clear highs
• Supplied with C-style mounting bracket and stainless steel hardware

Specifications:

• Frequency Response1: 69-20kHz ± 4dB
• Power Handling2: 85W (19V)
• Max Continuous Output3: 111dB
• Sensitivity: (2.83V/1M)4 95dB
• Horizontal Coverage: 80° ± 40 1.4kHz-20kHz
• Vertical Coverage: 90° ± 30 1.4kHz-18kHz
• DI: 7 ± 2.5dB 1Hz-20kHz
• Q: 5
• Nominal Impedance: 8 ohms (4.1ohm min @15kHz)
• Crossover: 1.9kHz with 12dB/Octave high-pass 12dB/Octave low-pass
• Transducers One: K-1182-A 6.5" woofer with IMG Cone One K-150-A 1" titanium diaphragm compression driver
• Enclosure Tuning: Vented System via front firing ports
• Enclosure Material: All-weather ABS plastic, paintable
• Input Connectors: 4 position terminal strip
• Transducers: One K-1183-A 8" woofer with IMG Cone One K-150-A 1" titanium diaphragm compression driver
• Enclosure Tuning: Vented System via front firing ports
• Enclosure Material: All-weather ABS plastic, paintable
• Input Connectors: 4 position terminal strip
• Transformer Taps: 70V: 60W, 30W, 15W, 7.5W, 3.75W 100V: 60W, 30W, 15W, 7.5W, 3.75W
• Through Position: 8 ohms
• Height: 11.125" (28.26cm)
• Width: 16.375" (41.53cm)
• Depth: 12.31" (31.27cm)
• Weight: 18 lbs. (8.16kg)
