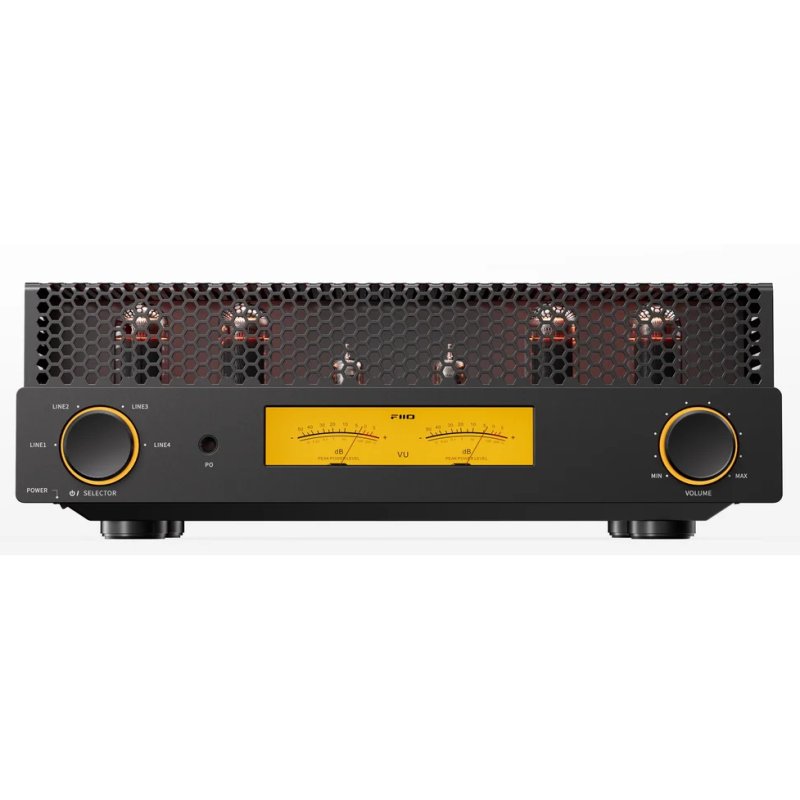

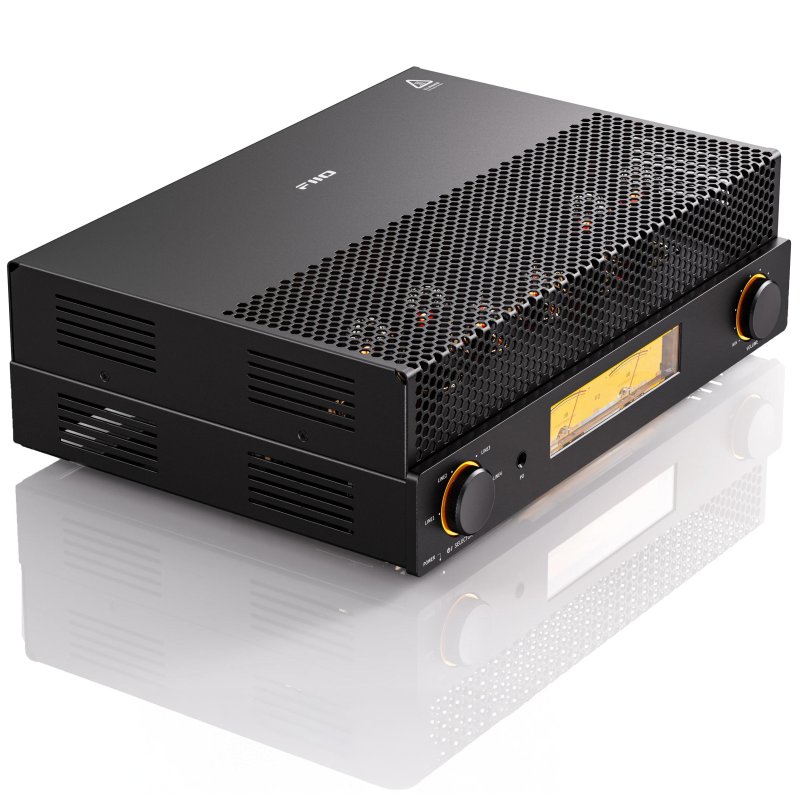

FiiO EA13 28W Class-A Stereo Vacuum Tube Power Amplifier

The FiiO EA13 is a pure Class-A push-pull stereo vacuum tube amplifier featuring two SYLVANIA NOS PCF80 preamplifier tubes and four JJ ELECTRONIC EL34 power tubes. It delivers up to 28W per channel through dedicated 4Ω and 8Ω speaker connections.

Custom EI silicon-steel output transformers, selected metal-film coupling capacitors, and large-capacity Japanese NCC filter capacitors support wide bandwidth, low noise, and the smooth tonal character associated with traditional tube amplification.

Four RCA inputs, a front-panel headphone output, mechanical VU meters, a 40-step analog volume control, and 12V trigger connectivity make the EA13 suitable for a wide range of two-channel audio systems.

Features

• Pure Class-A pentode-mode push-pull vacuum tube amplification
• Two SYLVANIA NOS PCF80 preamplifier tubes
• Four JJ ELECTRONIC EL34 power tubes
• Up to 28W per channel into 4Ω or 8Ω speakers
• Custom high-bandwidth, low-noise EI output transformers
• 40-step precision analog volume control
• Dual mechanical VU meters with LED backlighting
• Four RCA analog inputs and dedicated 4Ω and 8Ω speaker outputs
• 6.35 mm headphone output for headphones with 16Ω to 300Ω impedance
• 12V trigger input for coordinated power control
• Automatic low-power standby after 30 minutes without an input signal
• Adjustable RGB control-knob lighting

Specifications

General

• Amplifier type: Pure Class-A push-pull vacuum tube stereo power amplifier
• Tube configuration: 2 × SYLVANIA PCF80 and 4 × JJ ELECTRONIC EL34
• Controls: Four-position input selector and 40-step analog volume control
• Display: Dual mechanical needle VU meters
• Available colours: Black and silver
• Dimensions: Approximately 430 × 339 × 145 mm (16.9 × 13.3 × 5.7 in)
• Weight: Approximately 17.7 kg (39.0 lb)

Speaker Output

• Output into 4Ω at THD+N below 1%: At least 18W + 18W, 8.5 Vrms
• Output into 4Ω at THD+N below 5%: At least 28W + 28W, 10.9 Vrms
• Output into 8Ω at THD+N below 1%: At least 18W + 18W, 12.1 Vrms
• Output into 8Ω at THD+N below 5%: At least 28W + 28W, 15.5 Vrms
• Frequency response: 20 Hz to 60 kHz, attenuation below 2.9 dB
• Dynamic range: At least 97 dB, A-weighted
• Signal-to-noise ratio: At least 97 dB, A-weighted
• Noise floor: Below 150 μV, A-weighted

Headphone Output

• Recommended headphone impedance: 16Ω to 300Ω
• Output into 300Ω at THD+N below 1%: At least 185 mW + 185 mW, 7.4 Vrms
• Output into 32Ω at THD+N below 1%: At least 60 mW + 60 mW, 1.4 Vrms
• Frequency response: 20 Hz to 65 kHz, attenuation below 2.9 dB
• Dynamic range: At least 95 dB, A-weighted
• Signal-to-noise ratio: At least 95 dB, A-weighted
• Noise floor: Below 25 μV, A-weighted
• THD+N: Below 0.06% at 1 kHz and -16.3 dB into 32Ω

Connections

• Analog inputs: 4 × stereo RCA
• Speaker outputs: Gold-plated binding posts with separate 4Ω and 8Ω connections
• Headphone output: 6.35 mm
• Control connection: 12V Trigger In

What’s in the Box

• FiiO EA13 amplifier
• AC power cord
• Quick start guide
• Screwdriver
• 2 × screws
• Warranty card
