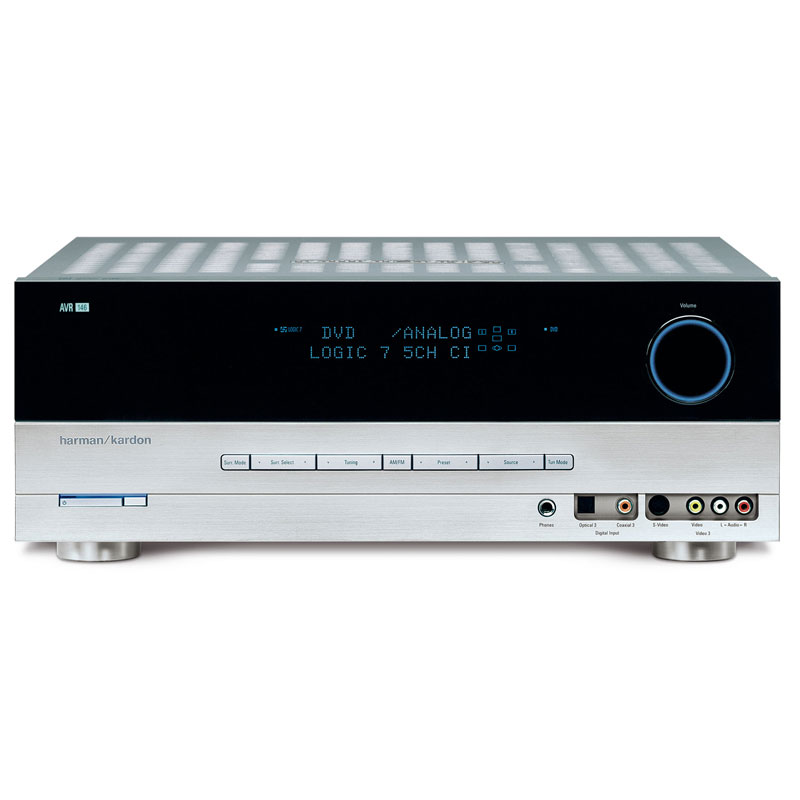

5.1-Channel A/V Receiver With HDMI™ Switching
150W: 30 watts x 5 (All channels operating at full-rated power), THD <0.07%, 20Hz - 20kHz into 8 ohms
300W: 60 watts x 5, THD <0.07%, @1kHz into 8ohms

Affordably priced, but full-featured. The AVR 146’s sonic quality and sophisticated features make it an exceptional value. From two-input, Simplay HD™-verified HDMI™ switching to the latest Cirrus Logic® 49510 DSP, A/V Sync Delay and a high-current amplifier, the AVR 146 is modest in price, but high in performance.

Audio

• Stereo Mode
• Continuous Average Power (FTC) per Channel : 40 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
• Five-Channel Surround Modes, Power per Individual Channel,
• All Channels Operating at Full Power :
• Front L & R Channels : 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
• Center Channel : 30 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
• Surround Channels : 30 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
• Input Sensitivity/Impedance, Linear (High-Level) : 200mV/47k ohms
• Signal-to-Noise Ratio (IHF-A) : 100dB
• Surround System Adjacent Channel Separation :
• Dolby® Pro Logic® I and II : 40dB
• Dolby® Digital : 55dB
• DTS® : 55dB
• Frequency Response at 1W (+0dB, –3dB) : 10Hz – 130kHz
• High Instantaneous Current Capability (HCC) : ±25 Amps
• Transient Intermodulation Distortion (TIM) : Unmeasurable
• Slew Rate : 40V/µsec

FM Tuner

• Frequency Range : 87.5 – 108.0MHz
• Usable Sensitivity : IHF 1.3µV/13.2dBf
• Signal-to-Noise Ratio : Mono/Stereo 70/68dB
• Distortion : Mono/Stereo 0.2/0.3%
• Stereo Separation : 40dB @ 1kHz
• Selectivity : ±400kHz, 70dB
• Image Rejection : 80dB
• IF Rejection : 90dB

AM Tuner

• Frequency Range : 520 – 1720kHz
• Signal-to-Noise Ratio : 45dB
• Usable Sensitivity : Loop 500µV
• Distortion : 1kHz, 50% Mod 0.8%
• Selectivity : ±10kHz, 30dB

Video

• Television Format : NTSC
• Input Level/Impedance : 1V p-p/75 ohms
• Output Level/Impedance : 1V p-p/75 ohms
• Video Frequency Response :
• Composite and S-Video : 10Hz – 8MHz (–3dB)
• Component Video : 10Hz – 100MHz (–3dB)
• HDMI™ : Switching

General

• Power Requirement : AC 120V/60Hz
• Power Consumption : 65W idle, 540W maximum (5 channels driven)
• Unit Dimensions :
• Width : 17-5/16" (440mm)
• Height : 6-1/2" (165mm)
• Depth : 15" (382mm)
• Carton Dimensions (W x H x D) : 22" x 10-1/2" x 18-3/4"
• (559mm x 267mm x 476mm)
• Unit Weight : 21.12 lb (9.6kg)
• Shipping Weight (System, Accessories, Packing) : 26 lb (11.8kg)

Two-Year Manufacturer's Warranty
