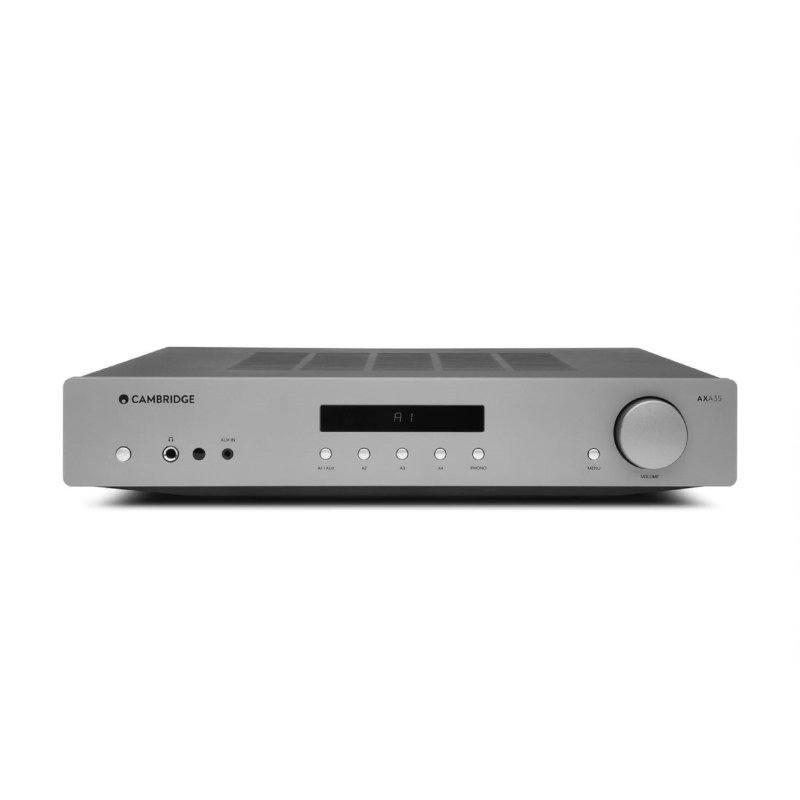

Cambridge Audio AXA35 Integrated Stereo Amplifier

The Cambridge Audio AXA35 is a versatile integrated stereo amplifier designed to deliver genuine hi-fi performance with the flexibility to connect both modern and traditional audio sources. Producing 35 watts per channel into 8 ohms, the AXA35 combines musical detail, dynamic performance, and intuitive operation in a compact, elegant design.

Featuring a built-in moving magnet phono stage, four RCA inputs, front-panel auxiliary input, dedicated headphone output, and high-quality speaker terminals, the AXA35 is an ideal starting point for vinyl enthusiasts and music lovers looking to build a high-quality stereo system.

Features

• 35 watts per channel integrated stereo amplifier
• Built-in moving magnet phono stage
• Toroidal transformer design
• Four RCA line-level inputs
• Front-panel 3.5mm auxiliary input
• Dedicated record output
• 6.35mm headphone output
• Bass and treble tone controls
• Balance control adjustment
• Front-panel LED dot matrix display
• High-quality speaker binding posts
• Rear USB 5V power output
• Remote control included
• Compact 430mm-wide chassis
• Lunar Grey finish

Built for Vinyl

The integrated moving magnet phono stage allows compatible turntables to be connected directly without requiring an external phono preamplifier. Simply connect your turntable and enjoy your vinyl collection with rich, detailed sound.

Flexible Connectivity

With four RCA inputs, a front-panel auxiliary input, recording outputs, and a dedicated headphone connection, the AXA35 easily accommodates a wide range of audio sources including CD players, streamers, turntables, computers, and portable devices.

Tailor Your Sound

Separate bass, treble, and balance controls allow precise adjustment to match your speakers, listening preferences, and room acoustics, while the high-quality amplifier section ensures engaging musical performance.

Specifications

Amplifier

• Power Output: 35 Watts Per Channel Into 8 Ohms
• Amplifier Type: Integrated Stereo Amplifier
• Toroidal Transformer Power Supply
• Damping Factor: Greater Than 50
• Input Impedance: 47k Ohms

Audio Performance

• Frequency Response: 5Hz – 50kHz (-3dB)
• THD @ 1kHz, 80% Rated Power: Less Than 0.01%
• THD 20Hz – 20kHz, 80% Rated Power: Less Than 0.15%
• Signal-to-Noise Ratio: Greater Than 82dB (Unweighted)

Inputs

• 4 x Stereo RCA Inputs
• 1 x Moving Magnet Phono Input
• 1 x 3.5mm Auxiliary Input (Front Panel)

Outputs

• Speaker Outputs
• Record Output
• 6.35mm Headphone Output
• USB 5V Power Output

Tone Controls

• Bass Control: ±10dB @ 100Hz
• Treble Control: ±10dB @ 10kHz
• Balance Control

Compatibility

• Moving Magnet Turntables
• CD Players
• Network Music Streamers
• Cassette Decks
• Bookshelf Speakers
• Floorstanding Speakers
• Passive Speakers
• Computers and Portable Audio Devices
• Headphones

Power

• Maximum Power Consumption: 260W
• Standby Power Consumption: Less Than 0.5W

Physical Specifications

• Dimensions (H x W x D): 83 x 430 x 335 mm
• Weight: 5.6 kg
• Finish: Lunar Grey

What's in the Box

• Cambridge Audio AXA35 Integrated Amplifier
• Power Cable
• Remote Control
• 2 x AAA Batteries
• User Documentation
